Máy tính nhúng không quạt với khe cắm PCI hoặc PCIe Expansion

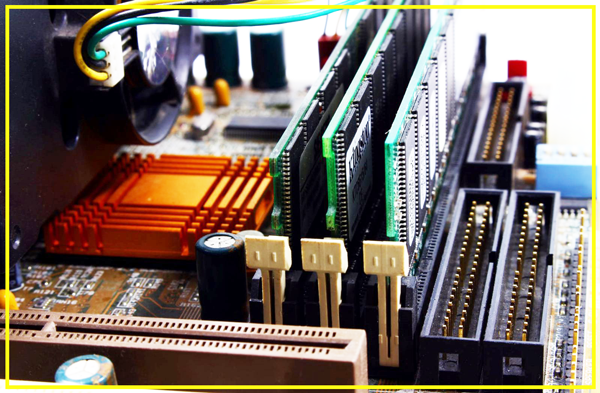

Máy tính nhúng của NEXCOM với khe cắm mở rộng có thể đơn giản hóa việc tích hợp hệ thống của bạn bằng cách cho phép bạn sử dụng card add-on trong các khe cắm mở rộng PCI / PCIe khác nhau.
Dòng máy tính nhúng không quạt có thể mở rộng cung cấp cấu trúc chắc chắn với các tính năng mở rộng thường dành cho các hệ thống thương mại. Các khe cắm PCI / PCIe cung cấp khả năng mở rộng cho các ứng dụng nhúng mạnh mẽ như truyền thông và phương tiện… Tùy thuộc vào khu vực ứng dụng, bạn có thể chọn máy tính hỗ trợ các khe cắm PCI và / hoặc PCIe cần thiết. Nexcom.vn rất sẵn lòng đưa ra lời khuyên và giúp bạn định cấu hình máy tính nhúng phù hợp.
Hãy cùng tham khảo list máy tính nhúng trang bị khe cắm PCI / PCIe dưới đây:
NISE3800E
6,7 Gen i7/i5/i3 SKL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCIex4
- Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q170 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- One PCIe x4 expansion
- Support -5 to 55°C extended operating temperature

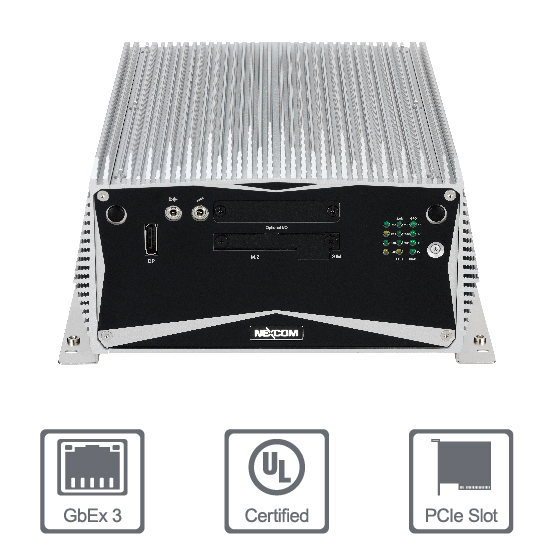

NISE3800E2
6,7 Gen i7/i5/i3 SKL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 2PCIex4
- Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q170 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- 2 x PCI or PCIe x4 expansions
- Support -5 to 60°C extended operating temperature

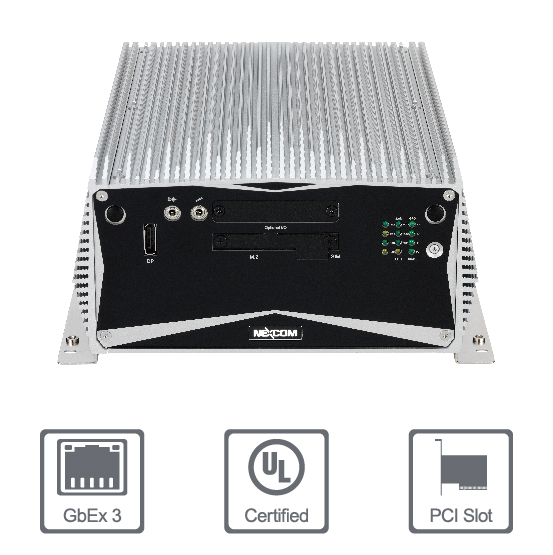

NISE3800P2
6,7 Gen i7/i5/i3 SKL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 2PCI
- Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q170 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- 2 x PCI expansions
- Support -5 to 60°C extended operating temperature
NISE3800P2E
6,7 Gen i7/i5/i3 SKL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCI /1PCIex4
- Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q170 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 (M-key 2242) socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- 1 x PCI and 1 x PCIe x4 expansions
- Support -5 to 60°C extended operating temperature
NISE3800E-H110
6,7 Gen i7/i5/i3 SKL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCIex4
- Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® H110 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x HDMI with independent display support
- Two Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- one PCIe x4 expansions

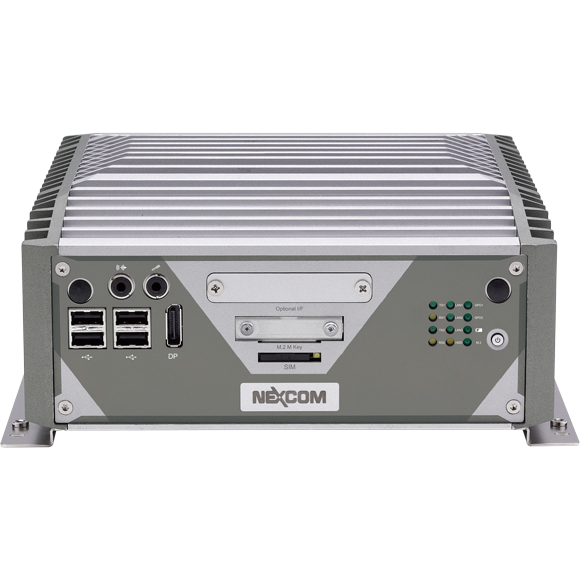

NISE3900E
8,9 Gen i7/i5/i3 CFL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCIex4
- Support 8th and 9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- One PCIe x4 expansion
- Support -5 to 55°C extended operating temperature

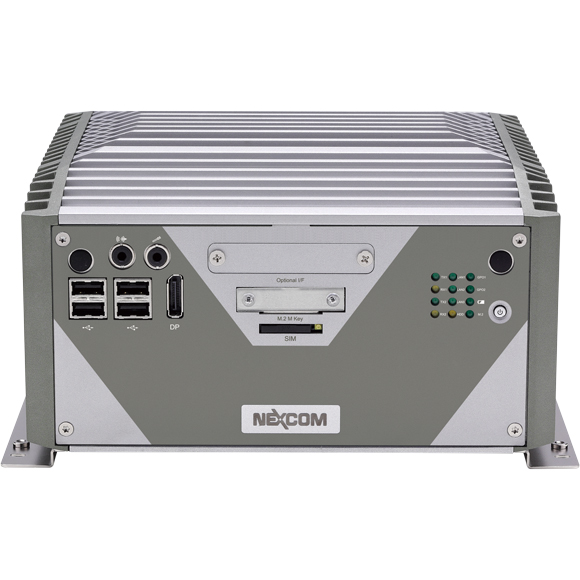

NISE3900E2
8,9 Gen i7/i5/i3 CFL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 2PCIex4
- Support 8th and 9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- With 2 x PCIe x4 expansion
- Support -5 to 55°C extended operating temperature
NISE3900P2
8,9 Gen i7/i5/i3 CFL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 2PCI
- Support 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- 2 x PCI expansions
- Support -5 to 55°C extended operating temperature
NISE3900P2E
8,9 Gen i7/i5/i3 CFL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCI/1PCIex4
- Support 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, Teaming and PXE
- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.0, 4 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- 1 x PCI and 1 x PCIe x4 expansions
- Support -5 to 55°C extended operating temperature.

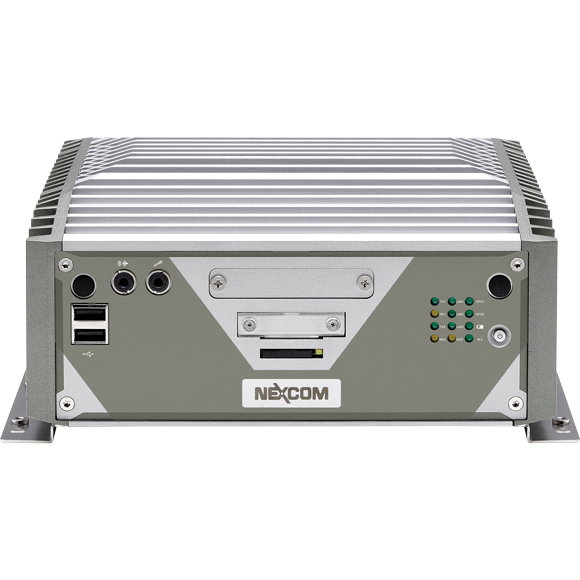

NISE3900E-H310
8,9 Gen i7/i5/i3 CFL
DVI, DP, HDMI, 2COM, 3GbE
9-30VDC, 1PCIex4
- Support 8th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® H310 PCH
- Support 1 x 2.5" SATA HDD
- 1 x DVI-D and 1 x HDMI with independent display support
- Two Intel® GbE LAN ports
- 1 x External M.2 socket and 1 x SIM card socket
- 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
- 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- One PCIe x4 expansion
Máy tính mở rộng PCI hoặc PCIe của NEXCOM được cấu hình không quạt, cho phép các kỹ sư nâng cấp hệ thống của họ lên thế hệ bộ xử lý Intel mới nhất, trong khi vẫn cho phép khả năng giao tiếp với các giao thức cũ hoặc giao thức chuyên biệt thông qua thẻ mở rộng PCI hoặc PCIe.
Xem thêm: PCIe 4.0 là gì? Giải thích dễ hiểu nhất về PCI Express thế hệ 4
