Máy tính công nghiệp chuyên dụng cho hàng hải (M)PPC-120T-BT-01/02

Panel

LED size: 12”, 16:9

Resolution: WXGA 1280 x 800

Luminance: 500cd/m2

Contrast ratio: 1000

LCD color: 16.2M

Viewing angle: 88(U), 88(D), 88(L), 88(R)

Backlight: LED

Touch Screen

Projected capacitive (flush panel type)

Light transmission: 89%

Interface: USB

With AR coating

System

CPU: onboard Intel® Atom™ processor E3845, 1.91 GHz, 2M L2 Cache

BIOS AMI BIOS

System memory
- PPC-120T-BT-01: 1x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECC and un-buffered
- PPC-120T-BT-02: 1x 204-pin DDR3L SO-DIMM socket, 2GB DDR3L (default), support up to 4GB DDR3L-1067/1333, non-ECC and un-buffered

Storage device
- PPC-120T-BT-01:
   1x SATA M.2 connector, 128G M.2 SATA (default)
   1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s
   1x swappable SSD tray for 2.5” SSD
- PPC-120T-BT-02:
   1x SATA M.2 connector, 32G M.2 SATA (default)
   1x SATA connector, support SATA 3Gb/s and SATA 6Gb/s
   1x swappable SSD tray for 2.5” SSDGraphics: Intel® HD Graphics

Watchdog timer: Watchdog timeout can be programmable by software 1 second to 255 seconds and 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

H/W status monitor: monitoring system temperature, and voltageBacklight control
- Control button: increase brightness, decrease brightness, backlight on/off
- Auto-dimming function can be adjusted by the ambient light sensor
- Panel backlight can be controlled by software with 45 steps, dimming range 0% to 100%

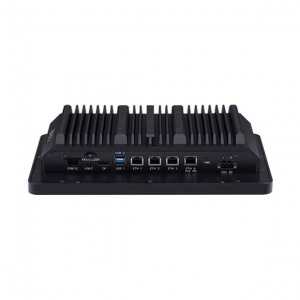

Rear I/O

EtherNet: 4x RJ45

2nd DisplayPort: 1x mini DisplayPortUSB: 1x USB 2.0, 1x USB 3.0

COM #1: 1x RJ45 output for RS232/422/485

Power status LED

DC power input connector: 3-pin Phoenix terminal blocks

EtherNet

LAN chip: 4x Intel® I210-IT Gigabit LAN

EtherNet interface: 10/100/1000 Mbps

Support wake up on LAN

Power Requirements

Input voltage: 24VDC

Reverse polarity protection

Galvanic isolated

Power consumption: 22W to 30W

Mechanical & Environment

Fanless system designColor
- Pantone black RAL9005, powder painting for aluminum front bezel
- Pantone black RAL9005 for backlight button membraneIP protection
- IP65 front bezel
- IP20 back system

Mounting: flush/VESA 75mm x 75mmVibration
- 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis (operating/non-operating)

Shock
- IEC 68 2-27
- 20G @ wall mount, half sine, 11ms

Operating temperature: -25°C to 70°C

Storage temperature: -25°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

Dimension: 307.5 x 209 x 39.9 mm

Weight: 5 KG

Certifications

CE approval

FCC Class A

IEC-60945 maritime standards compliance
