DNA 130

Tích hợp bộ vi xử lý Intel Atom® Processor x5-E3900 Series, 4 Cores 1.6G, BGA type, 5 cổng GbE Copper LAN

Giá: Liên hệ

Tính năng chính:

Intel Atom® processor x5-E3900 series SoC, BGA type
DDR3L SO-DIMM memory, max.
4GB Support 5 GbE LAN ports
On-board eMMC 4GB Wi-Fi/LTE (optional)
USB 2.0 connector
HDMI type A connector

Báo giá sản phẩm

Datasheet (PDF)

Desktop network security appliance DNA 130 helps small and medium enterprises build a securely connected workplace. Based on the Intel Atom® processor x5-E3900, the DNA 130 packs excellent performance per watt, accelerated data cryptography and server-grade LAN functions into a small form factor. This desktop network security appliance can create safe environments for network communication to connect employees and offices.

Main Board	DNB130 Intel Atom® processor x5-E3900 series, BGA type
Main Memory	1 x DDR3L SO-DIMM ECC/non-ECC memory, max. 4GB
LAN Features	5 x Copper ports LAN bypass: 1 pairs 5 x LAN controller: Intel® i211-AT Support 10/100/1000 link speed
Expansion	1x mini-PCIe slot for Wi-Fi 802.11ac/bgn/LTE G3/G4 (optional)

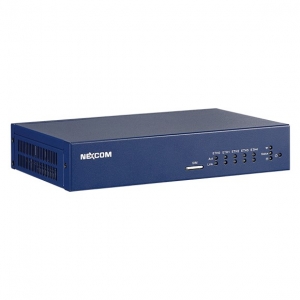

I/O Interface-Front	LED for Power status/HDD status/LAN status/Wi-Fi status SIM slot

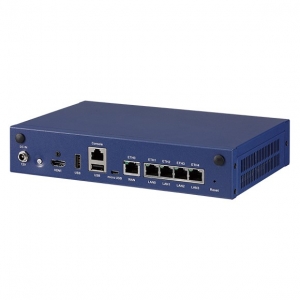

I/O Interface-Rear	2 x USB 2.0 1 x micro USB type console port (first priority) 1 x RJ45 type console port (secondary) 1 x RJ45 WAN port 4 x RJ45 copper ports 1 x Power button 1 x HDMI type A connector 1 x DC-in 1 x Reset button
Storage Device	1 x Onboard eMMC Flash 4GB 1 x mSATA connector
Power Input	DC 12V/3.33A 40W power adaptor
Dimensions	Chassis dimension (mm): 225 (W) x 150 (D) x 44 (H) Carton dimension (mm): 275 (W) x 230 (D) x 185 (H)
Weight	Without packing: 1.1kg With packing: 2.1kg
Environment	Operating temperatures: 0°C~40°C Storage temperature: -20°C~ 80°C Relative humidity: 10%~90% non-condensing
Certifications	CE Approval FCC Class B

Barebone

DNA 130 (P/N: 10L00013002X0)

Intel Atom® x5-E3930 Apollo Lake SoC, BGA type 2 cores 1.3GHz, 1 x DDR3L non- ECC memory slots, 5 copper LAN ports, eMMC flash 4GB, 2 x USB 2.0

DNA 130A (P/N: 10L00013003X0)

Intel Atom® x5-E3940 Apollo Lake SoC, BGA type 4 cores 1.6GHz, 1 x DDR3L non- ECC memory slots, 5 copper LAN ports, eMMC flash 4GB, 2 x USB 2.0

DNA 130B (P/N: 10L00013004X0)

Intel Atom® x5-E3930 Apollo Lake SoC, BGA type 2 cores 1.3GHz, 1 x DDR3L with ECC memory slots, 5 copper LAN ports, eMMC flash 4GB, 2 x USB 2.0

Manual
Date	Description	Version	OS	Download
2018-10-29	Quick Guide		Windows
2018-11-16	User Manual		Windows
