(M)PPC-240T-HW-01

LED size: 24", 16:9

Resolution: Full HD 1920 x 1080

Luminance: 300cd/m2

Contrast ratio: 5000

LCD color: 16.7M

Viewing angle: 89(U), 89(D), 89(L), 89(R)

Backlight: LED

Projected capacitive (flush panel type)

Light transmission: 91%

Interface: USBWith AR coating

CPU: onboard Intel® Core™ processor i5-4300U, 1.9GHz, 3M Cache

BIOS AMI BIOS

System memory: 2x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 16GB DDR3L-1066/1333, non-ECC and un-buffered

Storage device
- 1x SATA M.2 connector, 128G M.2 SATA (default)
- 1x mini-PCIe connector

Graphics: Intel® HD Graphics

Watchdog timer: Watchdog timeout can be programmable by software 1 second to 255 seconds and 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

H/W status monitor: monitoring system temperature, and voltage

Control buttons
- Poweron/off, reset, brightnessBacklight control
- Auto dimming function can be adjust by ambient light sensor
- Panel backlight can be controlled by software, dimming range 0% to 100%

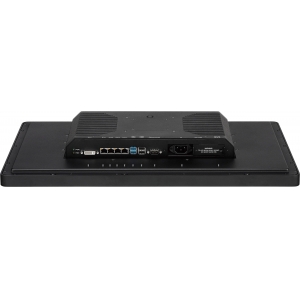

Ethernet: 4x RJ45

2nd display port: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0

COM #1: 1x RS232/422/485

Power status/ HDD status LEDsAC power input connector: IEC 60320 C14 connector

DC power input connector: 3-Pin Phoenix terminal blocks

LAN chip: 2x Intel® I210-IT Gigabit LAN + 2x Intel® 82574 Gigabit LAN

Ethernet interface: 10/100/1000 Mbps

Support wake up on LAN

AC power input
- Input voltage: 110/230VAC
- Power consumption: 28W to 55W

DC power input
- Input voltage: 24VDC
- Reverse polarity protection
- Galvanic isolated
* Note: only one power source (AC or DC) to be connected. No failover functionality

Fanless system designColor
- Pantone black RAL9005, powder painting for aluminum front bezel
- Pantone black RAL9005 for backlight button membrane

IP protection
- IP65 front bezel
- IP20 back systemMounting: flush/VESA 100mm x 100mm

Vibration
- Compliance with EN60945 protected b
- Sweep 2 Hz – 13.2 Hz at ±1 mm, 13.2 Hz – 100 Hz at 7m/s2 and for 2 h on each resonance (Q>5), 2h on one resonance/observed frequency (Q<5), otherwise (Q=0) 2 h at 30 Hz in all three axes, 12 minutes/axis

Shock
- IEC 68 2-27
- 20G @ wall mount, half sine, 11ms

Operating temperature: -25°C to 70°C

Storage temperature: -25°C to 75°C

Operating humidity: 10%~90% relative humidity, non-condensing

Dimension: 590 x 366.6 x 71.66 mm

Weight: 9 KG

CE approval

FCC Class A

CCC approval

IEC-60945 maritime standards compliance
