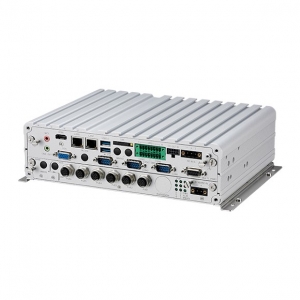

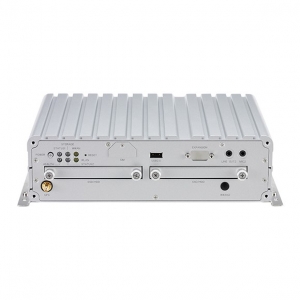

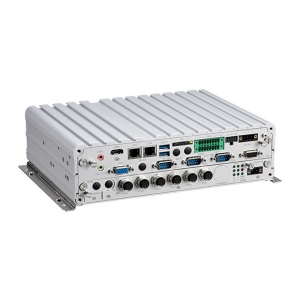

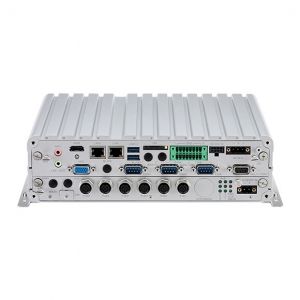

MVS 2623-C6SMK

1 x full size mini-PCIe socket (USB 2.0)

1 x full size mini-PCIe socket (USB 2.0 + PCIe)

1 x half size mini-PCIe socket (USB 2.0 + PCIe)

1 x M.2 B-key (3042)

1 x full size mini-PCIe socket (USB 2.0)

1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

Optional modules with Dead Reckoning availableBuilt-in G-sensor

6 x LED indicators for power/storage/WLAN/WWAN/Status/Health

1 x Reset button

1 x USB type A USB 2.0 port

2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x externally accessible SIM card sockets

2 x antenna holes for WWAN/WLAN/BT/GPS

6 x M12 10/100/1000 Mbps PoE ports with LED

2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED

1 x 9~36VDC input with ignition and 40W typical power consumption

2 x USB type A USB 3.0 port

2 x phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz

1 x HDMI port, resolution up to 2560 x 1600 @60Hz

2 x DB-9 RS-232

1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)

1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button

1 x DB9 connector for optional DR signal input, 2 x MDO and iButton

1 x 16-pin terminal block connector
- 1 x CAN Bus 2.0B (on board)
- 1 x OBDII optional VIOB-CAN-03 module (SAE J1939)
- 1 x CAN Bus 2.0B optional VIOB-CAN-03 module
- 8 x programmable GPIO
(4 x Digital inputs in default)
Input voltage (source type): 5VDC TTL (default)
Input voltage (external type): 3 ~ 12VDC
(4 x Digital outputs in default)
Digital output (source type): 5VDC TTL (default), max current: 20mA
Digital output (external type): 3 ~ 24VDC, max current: 150mA

1 x externally acessible SIM card socket and 1x internal SIM card socket selectable

Lithium-ion Polymer

Nominal capacity 1100mAh

Maximum charge current 1.0CmA

260mm (W) x 196mm (D) x 79.6mm (H) (10.24" x 7.72" x 3.13")

4kg

Operating temperatures:
-30°C~70°C (w/ industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random):
1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD)

Vibration (SSD):
Operating: MIL-STD-810G, Method 514.6C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6E, Procedure 1, Category 24, minimum integrity test

Shock (SSD/HDD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g (HDD); functional shock=40g (SSD)
Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
