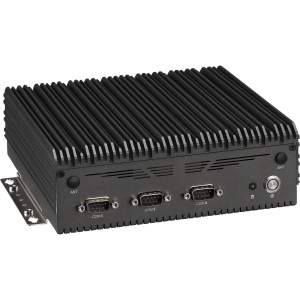

Neu-X302

Generation: 8th Coffee Lake
- Socket type: FCLGA1151
- CPU: i3-8100T
- Smart Cache: 6M
- Cores: 4
- Threads: 4
- Base Frequency: 3.1GHz, TDP: 35W

Generation: 8th Coffee Lake
- Socket type: FCLGA1151
- CPU: i5-8100T
- Smart Cache: 9M
- Cores: 6
- Threads: 6
- Base Frequency: 2.1GHz, TDP: 35W

Generation: 8th Coffee Lake
- Socket type: FCLGA1151
- CPU: i7-8100T
- Smart Cache: 12M
- Cores: 6
- Threads: 12
- Base Frequency: 2.4GHz, TDP: 35W

Generation: 9th Coffee Lake Refresh
- Socket type: FCLGA1151
- CPU: i3-9100TE
- Smart Cache: 6M, Cores: 4
- Threads: 4
- Base Frequency: 2.2GHz, TDP: 35W

Generation: 9th Coffee Lake Refresh
- Socket type: FCLGA1151
- CPU: i5-9100TE
- Smart Cache: 9M, Cores: 6
- Threads: 6
- Base Frequency: 2.2GHz, TDP: 35W

Generation: 9th Coffee Lake Refresh
- Socket type: FCLGA1151
- CPU: i7-9100TE
- Smart Cache: 12M, Cores: 8
- Threads: 8
- Base Frequency: 1.8GHz, TDP: 35W

Intel® PCH Q370Intel® PCH H310

2x DDR4 SO-DIMM socket, supports up to 32G DDR4 2666 SDRAM, with un-buffered and non-ECC

Intel® UHD Graphics 630

1 x VGA output on the edge, resolution up to 1920 x 1200 @ 60Hz

1 x HDMI 1.4 output on the edge, resolution up to 4096 x 2160 @ 30Hz

1 x LVDS internal connector, dual-channel, resolution up to 1920 x 1200 @ 60Hz (eDP: by request)

Power button

HDD LED status

3 x RS232 DB9 COM port (COM4 support RI 5V or 12V)

2 x Antenna holes

+12V DC input

1 x HDMI 1.4 output, resolution up to 4096 x 2160 @30Hz3 x RS232/422/485 DB9 COM ports

1 x VGA output

2 x Intel® GbE LAN ports (Intel® I219-LM and I211-AT)

4 x USB 3.0

1 x Mic-in, 1 x Line-out powered by Realtek ALC888

6 x USB 2.0, internal pin header (with Intel® Q370 chipset)

4 x USB 2.0, internal pin header (with Intel® H310 chipset)

8 channel GPIO, 5V TTL level

1 x Internal pin header for a speaker with 2W amplifier

1 x M.2 Key E, 2230, support optional Wi-Fi/Bluetooth module

1 x M.2 Key B, 2242/3042, support optional SSD/3G/4G or LTE module

1 x SIM card holder for M.2 Key B use

1 x 2.5” SATA SSD space

1 x M.2 Key B, 2242, support optional storage module if 3G / 4G / LTE will not be used

+12V DC inputEquip with 96W AC/DC power adapter in carton

AT/ATX power setting by jumper (ATX as the default)

Operating temperature: -5°C to 45°C ambient with airflow (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Relative humidity (non-condensing): 95% (non-condensing)

Storage temperature: -20°C to 80°C

Shock protection: 50G peak acceleration, 11ms according to IEC60068-2-27V vibration protection
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

CE approval (EN55032/EN55035)

FCC Class A

Aluminum and metal chassis with fanless design

200mm (L) x 190mm (W) x 64.3mm (H) without mounting bracket

200mm (L) x 212.5mm (W) x 70.3mm (H) with mounting bracket

Gross weight: 4.25kgs

Net weight: 2.68kgs
