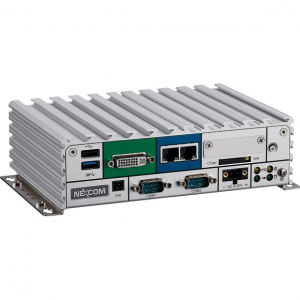

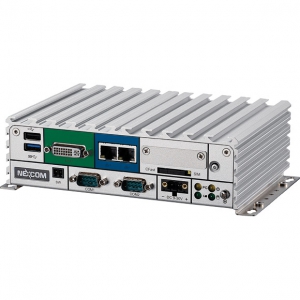

NISE 105

Intel Atom® Processor E3826 Dual Core Fanless System

Giá: Liên hệ

Tính năng chính:

Onboard Intel Atom® processor E3826 dual core, 1.46GHz
Dual Independent Display DVI-I and HDMI
2 x Intel® I120IT LAN ports support WoL, Teaming and PXE
2 x USB2.0 & 1 x USB3.0
4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)
1 x Optional Interface for optional Wi-Fi/3.5G modules
External RTC battery holder for easy replacement
Support -20 ~ 70 degree C extended operating temperature
Support 9-30VDC input (nominal DC input: 24V)

Báo giá sản phẩm

Powered by the latest generation of Intel Atom® processor E3826 (formerly codenamed "Bay Trail-I"), the NISE 105 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. NISE105 support ACP ThinManager that offers management solutions for the modern factory by simplifying management and also support Indusoft for HMI and SCADA. Up to 8G DDR3L memory, NISE 105 have several options on storage devices like CFast, HDD and SSD. The NISE 105 is also the 1st system in compact NISE 100 series to support extended operating temperature -20 to 70 degrees Celsius. In addition to no cable connection on the NISE 105, it brings NISE 105 the sustainability to work in harsh environment both with temperature and vibration concern. The NISE 105 has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications, network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105 is definitely the top choice for M2M intelligent system and factory automation platforms.

CPU Support	Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz Support Intel® Atom™ E3800 processor family Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
Main Memory	1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
Display Option	Dual Independent Display - HDMI and DVI-D - HDMI and VGA (via DVI-I to VGA converter)
I/O Interface-Front	ATX power on/off switch 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs 1 x External CFast socket1 x SIM Card holder 2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE 1 x DVI-I Display Output 1 x USB3.0 (900mA per each) 1 x USB2.0 (500mA per each)2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only) 1 x Remote Power ON/OFF Switch 1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)

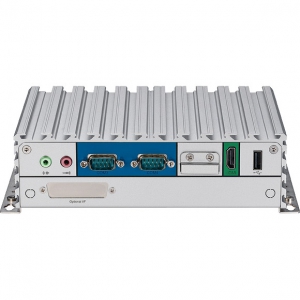

I/O Interface - Rear	1 x USB2.0 1 x HDMI 1 x RTC Battery 2 x DB9 for COM3 & COM4 support RS232 only 1 x Mic-in & 1 x Line-out 2 x Antenna Holes for optional Wi-Fi/3.5G antenna 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal	4 x GPI and 4 GPO (5V, TTL Type)
Storage Device	1 x CFast (SATA2.0) 1 x 2.5" HDD (SATA2.0)
Expansion Slot	1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules
Power Requirement	Power input: +9VDC to +30VDC (nominal DC input: 24V) 1 x Optional 24V, 60W power adapter
Support OS	Windows 8, 32bit/64bit Windows Embedded Standard 8, 32-bit/64-bit Windows 7, 32-bit/64-bit Windows Embedded Standard 7, 32-bit/64-bit Windows Embedded Compact 7, 32-bit Windows 10 IoT Enterprise, 64-bit Linux Kernel version 3.8.0
Dimensions	185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction	Aluminum and Metal Chassis with fanless design
Environment	Operating Temperature: Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage Temperature: -30°C to 85°C Relative Humidity: 10% to 95% (non-Condensing) Shock Protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 50G, half sine, 11ms, IEC60068-2-27 Vibration Protection w/HDD Condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6 Vibration Protection w/CFast & SSD Condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	CE FCC Class A UL/ cUL

NISE 105 (P/N: 10J00010501X0)
Intel Atom® Processor E3826 dual core fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060032X00)

Driver
Date	Description	Version	OS	Download
2014-05-02	Audio		Windows 8	74.14MB
2014-05-02	Audio		Windows 7	197.13MB
2014-05-02	Graphic		Windows 8	204.54MB
2014-05-02	Graphic		Windows 7	151.48MB
2014-05-02	INF		Windows 8	4.88MB
2014-05-02	Intel® Sideband Fabric Device (Intel® MBI) Driver		Windows 8	1.07MB
2014-05-02	Intel® Trusted Execution Engine (Intel® TXE)		Windows 8	47.88MB
2014-05-02	LAN		Windows 7	47.32MB
2014-05-02	LAN		Windows 8	55.7MB
2014-05-02	Setup Chipset		Windows 7	1.76MB
2014-05-02	USB		Windows 7	4.88MB

Manual
Date	Description	Version	OS	Download
2014-08-13	Quick Reference Guide		Windows	1.02MB
2014-07-28	User Manual		Windows	6.82MB
