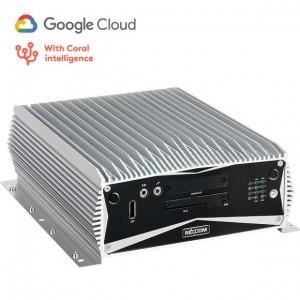

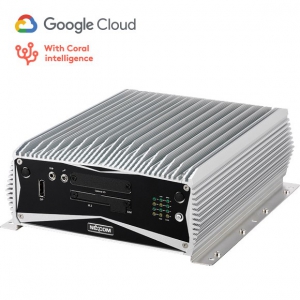

NISE 3800E-GCIoT

Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache
- Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache
- Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache
- Intel® Pentium® Processor G4400TE 2.4GHz , 3M Cache
- Intel® Celeron® Processor G3900TE 2.3GHz , 2M CacheTurbo-boost disabled by default

Main Memory

2 x DDR4 SO-DIMM socket, support up to 16GB with un-buffered an non-ECC

Display Option

Three independent display
- HDMI + DP+ DVI-DDual independent display
- HDMI + DP
- HDMI + DVI-DDP + DVI-D

Front I/O Interface Status LEDs

3 x LAN active LEDs

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

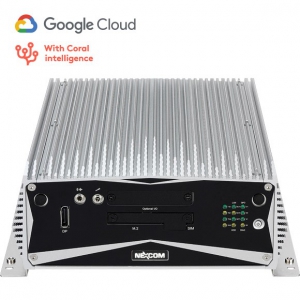

Front I/O Interface

1 x ATX power on/off switch

1 x DP1 x Line-out and 1 x Mic-in

2 x Antenna holes

1 x External M.2 socket

1 x SIM card holder

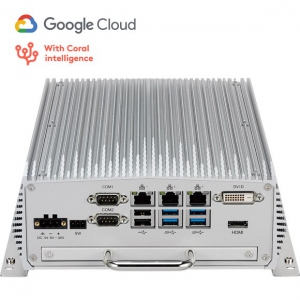

Rear I/O Interface

2 x DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control

4 x USB 3.0 ports (900mA per each)

2 x USB 2.0 ports (500mA per each)

1 x DVI-D port 1 x HDMI port

3 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE

1 x 2-pin remote power on/off switc+9V to 30V DC input

Storage Device

1 x M.2 (SATA 3.0)1 x mSATA (SATA 3 0)1 x 2.5" HDD (SATA 3.0)

Expansion Slot

One PCIe x4 expansion slot
- Add-on card length: 169mm max.
- Power consumption: 10W/slot max.2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus

Power Requirements

AT/ATX power mode (default: ATX power mode)

Power input: +9 to +30V DC

Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

215 mm(W) x 272mm (D) x 93mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")

Construction

Aluminum and metal chassis with fanless design

Environment

Operating temperature:
Ambient with air flow: -5°C to 55°
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 85°C

Relative humidity: 10% to 93% (non-condensing)

Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- M.2: 50G, half sine, 11ms, IEC60068-27

Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Certifications

CE approval- EN61000-6-2- EN61000-6-4FCC Class A

OS Support Lists

Windows 7 32-bit and 64-bit

Windows 8.1 32-bit and 64-bit

Windows 10 64-bit

Weight Information

Gross weight: 5.9kg

Net weight: 4.5kg
