Máy tính công nghiệp NISE 50

Option: Support Intel® Atom™ processor E3845 Quad Core,1.91GHz (by request)

On-board 2GB DDR3L 1066/1333 RAM
- Un-buffered and non-ECC
- Max up to 4GB for option

1 x HDMI display

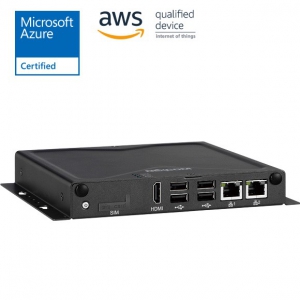

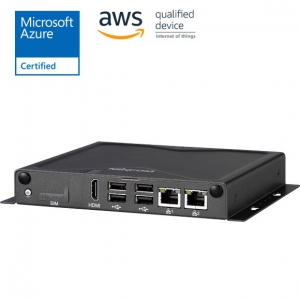

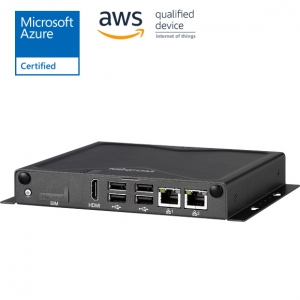

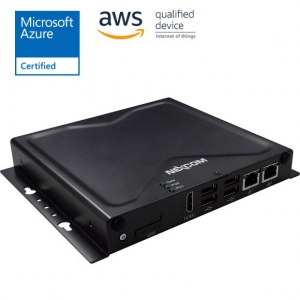

I/O Interface-Front

ATX power on/off switch

1 x Storage/2 x GPO Programmable LED

1 x SIM Card holder

2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE

1 x HDMI Display Output

4 x USB 2.0 (500mA per each)

2 x Antenna Holes for optional Wi-Fi/3.5G antenna

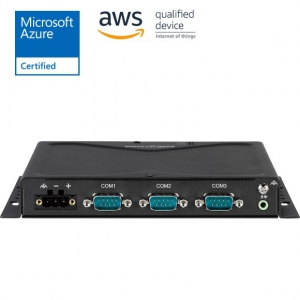

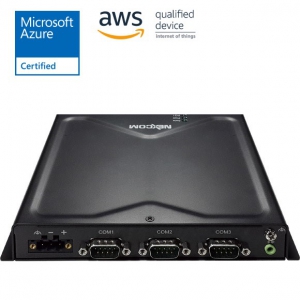

I/O Interface-Rear

3 x DB9 for COM1 & COM2 & COM3
- COM1: full RS232 signal
- COM2: RS232, only support Tx/Rx/GND
- COM3: RS422/485 auto flow control

1 x Line-out

Support 24V DC INPUT

I/O Interface - Internal

4 x GPI and 4 x GPO (Programmable to GPI or GPO)

1 x DB9, only support RS232, Tx/Rx/GND single

Storage Device

On-board 16GB EMMC

Optional mSATA module

Expansion Slot

3 x Mini-PCIe socket for optional Wi-Fi/3.5G modules
- Mini-PCIe: CN5; Size: Full; USB: V; PCIe:N/A; mSATA: Support; 3.5G/4G: Support
- Mini-PCIe: CN6; Size: Full; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: Support
- Mini-PCIe: CN7; Size: Half; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: N/A

Power Requirements

Power input: 24V DC +/-20%

1 x optional 24V, 60W power adapter

Support OS

Model Name: NISE 50
Storage: eMMC 16GB
Memory: 2GB
OS: Ubuntu 32-bit/WES8 32-bit

Model Name: NISE 50
Storage: mSATA
Memory: 2GB
OS: WES8 32-bit/Win7 Pro 32-bit/WES7E 32-bit/WEC7 32-bit

Model Name: NISE 50-4G-32G
Storage: eMMC 32GB
Memory: 4GB
OS: Ubuntu 64-bit/Win10 IoT Ent. 64-bit/WES8 64-bit

Model Name: NISE 50-4G-32G
Storage: mSATA
Memory: 4GB
OS: Win10 IoT Ent. 64bit/WES8 64-bit/Win7 Pro 64-bit/WES7E 64-bit/WEC7 32-bit

Model Name: NISE 50W
Storage: SSD
Memory: 2GB
OS: WES8 32-bit/Win7 Pro 32-bit/WES7E 32-bit/WEC7 32-bit

Dimensions

162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket

Metal Chassis with fanless design

Operating Temperature:
Ambient with air flow: -5°C to 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -20°C to 75°C

Relative Humidity: 10% to 95% (non-Condensing)

Shock Protection:
- mSATA / EMMC: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection w/mSATA or EMMC condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

CEFCC Class A

UL/cUL
