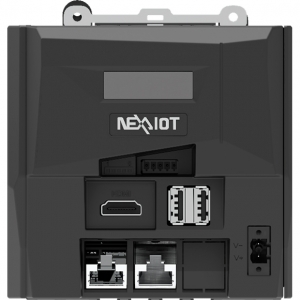

nPAC 2000 Series

Intel Atom® x6212RE Processor

Giá: Liên hệ

Tính năng chính:

Onboard Intel Atom® x6212RE processor, 1.20 GHz
1 x HDMI (resolution: 1920 x 1080, isolation)
2 x Intel® i210-IT GbE LAN ports; support WoL, teaming and PXE
2 x USB 3.0 ports
1 x RS485/RS422 (isolation)
1 x HDMI (resolution: 1920 x 1080, isolation)
2 x RJ45 connector with LAN speed and link/active LEDs (3 x RJ45 connector fieldbus optional)
Support -15°C~60°C operating temperature

Báo giá sản phẩm

PDF

Powered by an Intel Atom^® x6212RE processor, 1.20 GHz (formerly codenamed "Elkhart Lake"), nPAC 2000 presents an IoT controller for factory automation. Up to 4G LPDDR4 memory, the nPAC 2000 supports operating temperatures from -15 ℃~60℃ with typical DC input 24V. The nPAC 2000 has high integration ability with 1 x COM port (RS232/422/485), 2 x USB 3.0 ports, and 2 x RJ45 connectors with LAN speed and link/active LED which makes it a reliable connection with devices in factory automation applications, IoT applications and communication applications. nPAC 2000 is definitely the top choice for M2M intelligent system as a factory automation controller.

CPU Support	Onboard Intel Atom® x6212RE processor, 1.20 GHz
Main Memory	1 x LPDDR4-2133 4GB
Display Option	1 x HDMI (Resolution: 1920 x 1080)
I/O Interface	2 x USB 3.0 ports1 x RS485/RS422 (isolation) 1 x HDMI (resolution: 1920 x 1080, isolation) 2 x RJ45 connector with LAN speed and Link/Active LEDs (3 x RJ45 connector fieldbus optional)
I/O Interface - Internal	1 x USB 2.0 ports
Storage Device	1 x M.2 2242 SATA Key B
Power Requirements	+24V DC input with reverse power protection +/- 20 %5-pin Phoenix contact connector for RS485/422
Dimensions	95mm (W) x 100mm (D) x 76mm (H)
OLED	Display content can be defined by the user First row and second row can put 20 ASCII codes
Construction	PC/ABS chassis and aluminum extrusion heat sink
Environment	Operating temperature: Ambient with airflow: -15°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -40°C to 85°C Relative humidity: 95 %, no condensation Shock protection: - M.2: 10G @ half sine, 11ms (operation), IEC60068 2-27 Vibration protection w/ M.2 & SSD condition: - Random: 1Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 1Grms @ 5~500 Hz,1 oct/min, 1hr/axis IEC60068-2-6
Certifications	CE approval - EN61326 1 - EN61000 6-2 - EN61000 6-4 - EN61131 2FCC Class A
Support OS	Windows10 Enterprise (64-bit)

Model	P/N	Spec
Model	P/N	OS	CPU	Storage	Lan Port Amount	Software
nPAC 2000-E01	10P1020000X0	-	Intel Atom® x6212RE	-	2 x Lan ports	-
nPAC 2000-E02	10P1020005X0	-	Intel Atom® x6212RE	-	3 x Lan ports	-
nPAC 2000-E01GW	10P1020001X0	Windows 10	Intel Atom® x6212RE	128G	2 x Lan ports	VIC-Flow
nPAC 2000-E01CDS	10P1020002X0	Windows 10	Intel Atom® x6212RE	128G	2 x Lan ports	CODESYS SoftPLC
nPAC 2000-E02CDS	10P1020003X0	Windows 10	Intel Atom® x6212RE	128G	3 x Lan ports	CODESYS SoftPLC

▪ Expansion Module (left side)

nPAC 2000-EX01 (P/N: 10P1020004X0)

Extension module, 1 x mini-PCIe (1 x mSATA optional) socket support optional fieldbus/mSATA/Wi-Fi/4G LTE/3.5G modules

FBI90E-COM (P/N: 10J50090E15X0)

CANOpen master, Universal FBI module kit

FBI90E-DNM (P/N: 10J50090E10X0)

DeviceNET master, Universal FBI module kit

FBI90E-ECM (P/N: 10J50090E19X0)

EtherCAT master, Universal FBI module kit

FBI90E-EPM (P/N: 10J50090E20X0)

Ethernet/IP maste, Universal FBI module kit

FBI90E-PBM (P/N: 10J50090E09X0)

PROFIBUS master, Universal FBI module kit

FBI90E-PNM (P/N: 10J50090E21X0)

ProfiNET master, Universal FBI module kit

▪ Slice I/O module (right side)

Power module (P/N: 7900000116X00)

Power supply DC 24 V, reverse polarity protection

Power module (P/N: 7900000064X00)

Power supply DC 24V for bus supply 5V, 2A, reverse polarity protection

Digital input (P/N: 7900000065X00)

8 x DI, DC 24V

Digital output (P/N: 7900000137X00)

8 x DO, DC 24V, 0.5 A, NPN

Analog input (P/N: 7900000117X00)

4 x AI, 12-bit, Voltage 0…10V

Analog output (P/N: 7900000118X00)

4 x AO, 12-bit, Voltage 0…10V

Counter module (P/N: 7900000072X00)

1 x Counter 32-bit (AB), DC 5V, up to 2 MHz (difference signal)

Digital output (P/N: 7900000137X00)

8 x DO, DC 24V, 0.5A, NPN

▪ Optional Adapter

Adapter (P/N: 7400060067X00)

Power adapter 60W/24V

Power cord - US (P/N: 603POW0431X00)

US standard 18AWG 3C 60℃ L=1800mm

Power cord - EU (P/N: 603POW0432X00)

EU standard H03VV-F 0.75mm² 3C L=1800mm

Power cord - UK (P/N: 603POW0433X00)

UK standard H03VV-F 0.75mm² 3C L=1800mm

▪ NVRAM (inside)

NISK-NVRAM (P/N: 10JKNVRAM01X0)

1MB NVRAM mini-PCIe module

▪ Optional CODESYS Software

Standard License

CODESYS SoftPLC license (P/N: 86SWCDS3000X0)

SoftPLC runtime (nPAC 2000-E01CDS/nPAC 2000-E02CDS are included)

CODESYS SoftPLC w/ TargetVisu license (P/N: 86SWCDS3100X0)

Runtime and Visualization function

CODESYS SoftMotion license(P/N: 86SWCDS3001X0)

SoftMotion Runtime

CODESYS SoftMotion w/ TargetVisu license(P/N: 86SWCDS3101X0)

SoftMotion Runtime and Visualization function

▪ Extra Upgrade License

SoftMotion license only (P/N: 86SWCDS3U11X0)

Upgrade from SoftPLC to SoftMotion

TargetVisu license only (P/N: 86SWCDS3U01X0)

CODESYS runtime support visualization function

WebVisu license (P/N: 86SWCDS3U02X0)

CODESYS runtime support web visualization function

Activation Dongle USB (P/N: 6014500032X00)

CODESYS runtime license activation dongle USB
