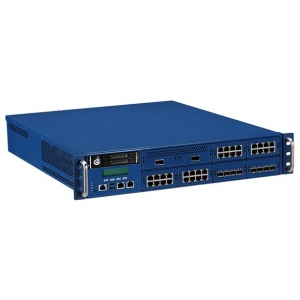

NSA 7146

2U Rackmount Performance Appliance w/ Dual Intel® Xeon® Scalable Processor and 8 x LAN Modules

Giá: Liên hệ

Tính năng chính:

Dual Intel® Xeon® scalable processor (LGA3647)
16 x DDR4-2666 RDIMM
2 x 2.5” swappable SSD/HDD
2 x Management ports
8 x LAN modules
Supports Intel® QAT
Redundant power supply
Supports IPMI 2.0 remote management
Intel® Select Solution for NFVI and VCDN (RHEL)

Báo giá sản phẩm

Datasheet (PDF)

The NSA 7146 is a 2U rackmount high-performance security appliance intended for more secure workloads and lower energy consumption in contributing to a greener world. Based on the Intel® Xeon® product family (codenamed Skylake-SP), NEXCOM’s NSA 7146 features enhancements in multi-core computing performance, flexible I/O throughput and interface, and Intel® QAT hardware acceleration technology to process network traffic for both enterprise and telecommunication applications.

Main Board	Dual Intel® Xeon® Skylake-SP scalable processor (LGA3647), up to 165W Supports 2 x UPI between CPUsIntel® C627 w/ Intel® QAT Supports IPMI 2.0 Supports Dual BIOS
Main Memory	16 x DDR4 2133/2400/2666 RDIMM sockets, up to 512GB
Storage	2 x 2.5” swappable SSD/HDD 1 x CFast
Interface-External	Button: Power & ResetLED: Power/HDD/GPIO/System 2 x 2.5” swappable SSD/HDD bays 2 x USB 3.0 ports 2 x USB 2.0 1 x RJ45 type console 8 x PCIe x8 LAN module slots 2 x Management ports 1 x VGA port 3 x Swappable smart fans 2 x Power inlets LCM module
Interface-Internal	TPM 1.2/2.0 module (optional)
Power	700W 1+1 CRPS redundant power supply
Dimensions and Weight	Chassis dimension: 440.6 mm x 570 mm x 88 mm Carton dimension: 774 mm x 636 mm x 293 mm Without packing: 19 kg With packing: 25 kg
Environment	Operating temperature: 0°C~40°C Storage temperature: -20°C~75°C Relative humidity: 10%~90%, non-condensing
Certifications	CE/FCC Class A UL

Barebone

NSA 7146 (P/N: 10S00714600X0)

2U w/ Dual Intel® Xeon® Scalable Processor, w/ QAT, IPMI, LCM and 8 x LAN modules

Model	P/N Controller	Interface	Type	Port Number	Bypass/ Segment	Expansion Slot	Location Slot
NX 140F	10S20140F01X0	XL710-BM1	PCIe x8	4 SFP+	None	None	All Slot
NX 142F	10S20142F01X0	XL710-BM1	PCIe x8	4 SFP+	2 bypass	None	All Slot
NX 142F-LR	10S20142F03X0	XL710-BM1	PCIe x8	4 SFP+	2 bypass	None	All Slot
NX 120F	10S20120F00X0	X710-BM2	PCIe x8	2 SFP+	None	None	All Slot
NI 140F	10SK000NI02X0	i350AM4x1	PCIe x8	4 SFP	None	None	All Slot
NI 180F	10S10180F01X0	i350AM4x2	PCIe x8	8 SFP	None	None	All Slot
NI 142C	10SK000NI03X0	i350AM4x1	PCIe x8	4 Copper	2 bypass	None	All Slot
NI 180C	10S10180C01X0	i350AM4x2	PCIe x8	8 Copper	None	None	All Slot
NI 184C	10S10184C01X0	i350AM4x2	PCIe x8	8 Copper	4 bypass	None	All Slot
NI 142F	10S10142F01X0	i350AM4x1	PCIe x8	4 SFP	2 bypass	None	All Slot
NI 121F	10S10121F01X0	i350AM2x1	PCIe x8	2 SFP	1 bypass	None	All Slot
NI 140C	10S10140C01X0	i350AM4x1	PCIe x8	4 Copper	None	None	All Slot
NV 120F	10S50120F01X0	XXV710-AM2	PCIe x8	2 SPF28	None	None	All Slot
NC220Q28M	10S30022002X0	MT27708A0-FDCF-CE	PCIe x16	2 QSFP28	None	None	1,2/ 3,4/ 5,6/ 7,8

NSA 7146 I/O

Manual
Date	Description	Version	OS	Download
2020-02-05	Quick Guide		Windows
2020-02-05	User Manual		Windows
