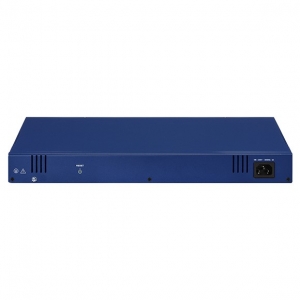

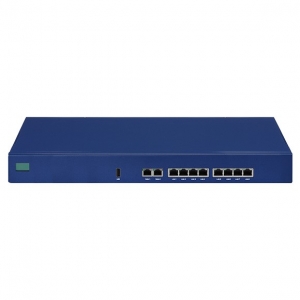

PDNA 120

Giá: Liên hệ

Tính năng chính:

Annapurna AL312 dual-core 1.7GHz CPU bases on ARM Cortex™-A15
On-board 1GBytes SLC NAND flash
On-board 1GBytes 64-bit DDR3 and 8-bit ECC Using two 2.5G SGMII to provide higher bandwidth connection between CPU and Ethernet switch
Support up to two PCIe Wi-Fi modules for 3x3 11n/11ac dual-band concurrent
Three antennas could support dual-band Wi-Fi
Support VDSL2 up to 17a profile

Báo giá sản phẩm

Datasheet (PDF)

CPU	Annapurna AL312 dual-core 1.7GHz CPU base on ARM® Cortex™ -A15 Integrate 2MB L2 cache Integrate ARM® NEON™ v2 for floating-point and video processing
Memory	On-board 1GBytes SLC NAND flash On-board 1GBytes 64-bit DDR3 and 8-bit ECC
Ethernet	One 1GbE copper WAN (RJ45) One 1GbE copper DMZ (RJ45) Six 1GbE copper LAN (RJ45)
Other I/Os	One USB 3.0 host One Micro SD card reader with protective cover One RJ45 console supports to connect with serial modem for remote management One mini-USB console. Driver can be automatically installed Microsoft support site
Indicators and Buttons	LEDs for power, alert, WAN, DMZ, LAN, USB, SD card Internet, VDSL and Wi-Fi One reset to default button One system reboot button
Wi-Fi	Two PCIe slots for two Wi-Fi modules. Diplexer design for 3x3 dual-band concurrent by three RP-SMA antennas
VDSL2	One RJ11 connector for VDSL2 Support both Annex A and Annex B Support up to 17a profile
HW Monitor	Support HW monitor features via two thermocouples and ten voltages sensors
Power Adapter	External desktop power adapter - Power input: 100V~240VAC
Dimension	210 x 200.5 x 42.5 mm
Weight	2Kg
Environment	Operation temperature: 0~40 degree C Storage temperature: -20~80 degree C Humidity: 10 to 90% (non-condensing)
Certifications	FCC Class B UL CE/CB
