Thông số

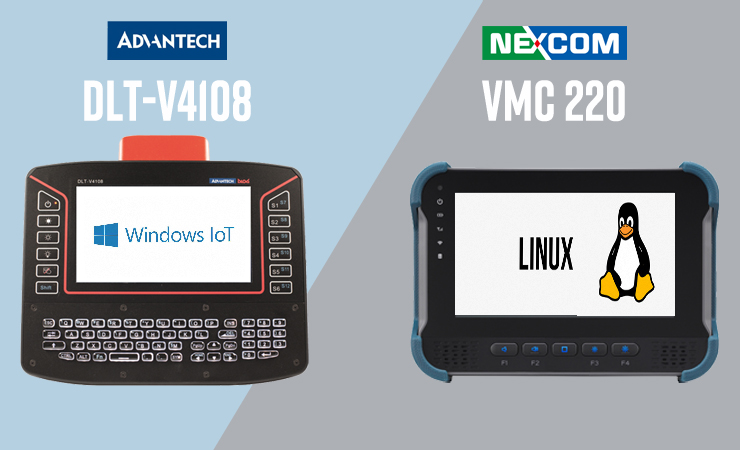

ADVANTECH DLT-V4108

NEXCOM VMC 220-PC1

CPU

Intel® E3826 dual-core, 1.46 GHz, with 4 GB RAM

• NXP i.MX 8M Quad processor with 1.3 GHz frequency
• Quad Arm® Cortex®-A53 core

Onboard LPDDR4 2400MHz SDRAM 4GB

Display

8" color TFT with Projected capacitive multi-touch, 1024 x 600 resolution and 750 cd/m² brightness

8" TFT LCD monitor with projected capacitive touch screen, 1280 x 720 resolution and 1,000nits LCD brightness

Keyboard

QWERTY version

N/A

Storage

32 GB MLC-Fast

• 1 x eMMC 32GB (BOM optional 64GB)
• 1 x Micro SDXC Slot

Mechanical

• Tráng nhôm, không quạt, IK 06 (touch screen)
• IP65
• Kích thước: 290 x 264 x 60.5 mm
• 3.4 kg (chưa có ăng ten)

• Thiết kế không quạt, IK08 (housing and touch screen)
• IP65
• Kích thước: 250x179x67.5 mm
• 2.4 kg
• Mounting: VESA 75

Operating System

Windows 10 IoT Enterprise

Linux

Android (by request)

I/O Interfaces

• Serial, USB: 1 x RS-232 with 12 VDC, 1 x USB 2.0 host Type A, and 1 x service USB 2.0 with additional USB and RS-232 via master harness cable
• CAN Via master harness cable
• External Antennas 1 x RSMA for Wi-Fi, 1 x SMA for WWAN, and 1 x SMA for GPS

I/O Interface mặt sau:

• 1 x Full RS232 (COM, w/ 5VDC, 12VDC)
• 1 x Power connector, M12 A-coded 5-pin
• 1 x 10/100/1000 Mbps LAN, M12 A-coded 8-pin
• 1 x M12 A-coded 8 pin for 2 x USB 2.0
• 1 x M12 (MULTI PORT1, A-coded 12-pin) - 2 x GPI - 2 x GPO - 1 x Isolated CANBus 2.0B - PWM (speed)+Direction+GND
• 1 x M12 (MULTI PORT2, A-coded 12-pin) - 1 x RS232 (Tx, Rx) - 1 x RS232 (Tx, Rx)/RS422/RS485 - 4 x Composite video input
• 2 x SMA connector for WWAN
• 3 x SMA connector for WLAN
• 1 x SMA connector for Bluetooth
• 1 x SMA connector for GNSS

I/O Interface mặ trước:

• Volume control keys (+/-) with LED
• Brightness control keys (+/-) with LED
• F1 ~ F4 programmable function keys with LED
• 1 x Shift key with LED
• Light sensor
• 5 x LED indicators (power, battery, WWAN, WLAN, storage)
• 2 x Built-in 2W speakers
• 1 x Mic

I/O Interface bên cạnh

Left Side

• 1 x System reset button w/ cover

• 1 x MicroSD slot w/ cover
• 1 x Micro-SIM slot w/ cover

Right Side

• 1 x Power button
• 1 x USB 2.0 type A connector w/ cover
• 1 x Mic-in (mono), 1 x Line-out (mono) w/ cover

Expansion

N/A

• 1 x M.2 2230 Key E socket (SDIO 3.0, PCIe 2.0, UART)
• 1 x M.2 3042/3050/3052 Key B socket (USB 3.0) for LTE/5G NR module with
• 1 x external Micro-SIM slot, with 1 x internal Micro-SIM slot

Environment

• Operating temperatures: -30 ~ 50 °C
• Shock/Vibration: 5M3 (EN 60721-3-5) and MIL-STD 810F (US highway truck vibration exposure)

• Operating temperatures: -40°C to 70°C
• Shock/Vibration: MIL-STD-810G

Standards/Certifications

CE Immunity Class A, Emission Class B/FCC Class B, CCC (for China)

CE/FCC class B/E13/IK08
