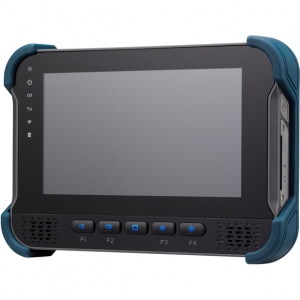

Máy tính gắn trên xe VMC 220

8-inch TFT LCD panel with LED backlight

1280 x 720 pixels (HD)

Brightness: 1000 cd/m² (typical)

Viewing angle: 170° (H)/170°(V)

Contrast ratio: 1000:1 (typical)

Projected capacitiveAnti-glare coating surface

Transmission rate: 80 ± 3%

NXP i.MX 8M Quad processor with 1.3 GHz frequency

Quad Arm® Cortex®-A53 core

1 x eMMC 32GB (BOM optional 64GB)

1 x Micro SDXC Slot

1 x M.2 2230 Key E socket (SDIO 3.0, PCIe 2.0, UART)

1 x M.2 3042/3050/3052 Key B socket (USB 3.0) for LTE/5G NR module with 1 x external Micro-SIM slot, with 1 x internal Micro-SIM slot

1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U/M8L modules with dead reckoning available

G Sensor and gyroscope

Volume control keys (+/-) with LED

Brightness control keys (+/-) with LED

F1 ~ F4 programmable function keys with LED

1 x Shift key with LED

Light sensor

5 x LED indicators (power, battery, WWAN, WLAN, storage)

2 x Built-in 2W speakers

1 x Mic

Left Side
- 1 x System reset button w/ cover
- 1 x MicroSD slot w/ cover
- 1 x Micro-SIM slot w/ cover

Right Side
- 1 x Power button
- 1 x USB 2.0 type A connector w/ cover
- 1 x Mic-in (mono), 1 x Line-out (mono) w/ cover

1 x Full RS232 (COM, w/ 5VDC, 12VDC)

1 x Power connector, M12 A-coded 5-pin1 x 10/100/1000 Mbps LAN, M12 A-coded 8-pin

1 x M12 A-coded 8 pin for 2 x USB 2.0

1 x M12 (MULTI PORT1, A-coded 12-pin)
- 2 x GPI
- 2 x GPO
- 1 x Isolated CANBus 2.0B
- PWM (speed)+Direction+GND

1 x M12 (MULTI PORT2, A-coded 12-pin)
- 1 x RS232 (Tx, Rx)
- 1 x RS232 (Tx, Rx)/RS422/RS485
- 4 x Composite video input

2 x SMA connector for WWAN

3 x SMA connector for WLAN

1 x SMA connector for Bluetooth

1 x SMA connector for GNSS

Cooling system: fanless

Enclosure: plastic

IK Rating: IK08 (housing and touch screen)

Mounting: VESA 75

Ingress protection: complete IP65

Dimension: 250x179x67.5 mm

Weight: 2.4kg

9V ~ 60V DC inBack-up battery for approx. 20 min of operation (optional)Reverse protection/over voltage protection/under voltage protectionIgnition on/off control & programmable on/off delay timing

Wake up by SMS, RTC and ignition

13.56-MHz RFID/contactless standard protocols

Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smart label ISO15693

Operating temperatures: Ambient with air -40°C to 70°C, ambient with air and without battery

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation)

Vibration
- Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
- Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

Shock
- Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers = 40g
- Crash hazard: MIL-STD-810G, Method 516.6, Procedure V,
ground equipment = 75g

Linux

Android (by request)
