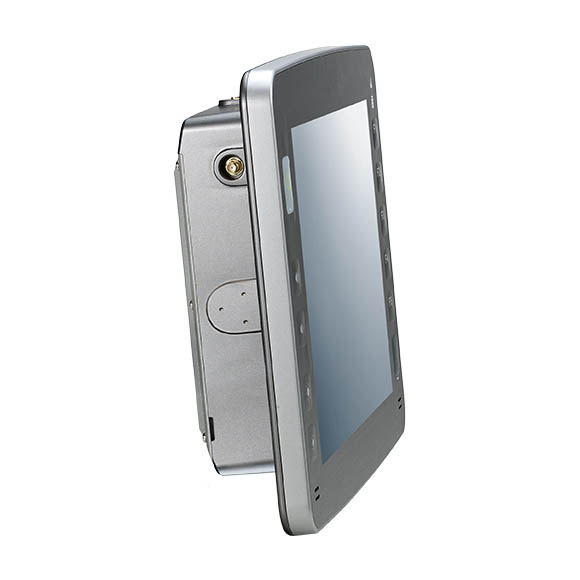

Máy tính gắn trên xe VMC 4020

12.1-inch TFT LCD panel with LED backlight

1024 x 768 pixels (XGA)

Brightness: 1200 cd/m² (typical)

Viewing angle: 170° (H):170°(V)

Contrast ratio: 750:1 (typical)

5-wire resistant touch

Anti-glare coating surface

Transmission rate: 81 ± 3%

Intel Atom® x7-E3950 processor dual core 1.6GHz memory

One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB)

1 x CFast

1 x 2.5" SATA SSD bay

3 x Full-size mini-PCIe socket (PCIe + USB)

1 x Full-size mini-PCIe socket (USB)

1 x CFast

2 x Micro SIM slot

LCD back light on/off

Volume control (+/-)

Brightness control (+/-)

Light sensor

4 x LED indicators (power/battery charging, WLAN, shift, storage)

F1 ~ F10 programmable function

2 x Built-in 2W speakers

Right Side:
1 x CFast card slot
1 x System reset button
1 x USB 2.0 host type A connector

Left Side:
1 x Antenna for WWAN

1 x M12 (22 pins)
-1 x 10/100/1000, LAN

1 (wake up on LAN)
-1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A)
-1 x DR (Odometer + Speed )
-2 x GPI
Source: 9V ~ 60V-in (default)
Sink: external 0V ~ 60VDC pull-high selected by software settings
Input High "1" Voltage: 3.3 ~ 60 VDC
Input Low "0" Voltage: 0 ~ 2 VDC
-2 x GPO
Source: 9V ~ 60V-in (default)
12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA
Sink: external max. 0.5A pull high

1 x M12 (21-pin)
-1 x Mic-in
-1 x Line-out
-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
-2 x Isolated CANBus 2.0B
When installing CAN06, CAN2 becomes J1939/ISO15675-4
When installing CAN05, CAN2 becomes J1708
-1 x iButton

1 x M12 (5-pin)
-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)

1 x M12 (8-pin)
-Either of DC output or RFID
1 x DC output (12V/2A )
1 x RFID (Tx/Rx, 12V/2A)

1 x M12 (8-pin)
-1 x 10/100/1000, LAN2 (optional for 802.3af/at)

1 x M12 (8-pin)
-2 x USB Type A1 x M12 (18-pin)
-Expansion port

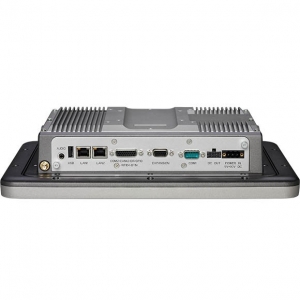

1 x GPS Antenna SMA connector (On housing)

1 x Mic in and Line out

2 x RJ45 10/100/1000
-LAN1, wake up on LAN
-LAN2, optional for 802.3at

1 x USB type A

1 x DB9 full RS232/422/485 (RI, 5V/0.5A, 12V/05A)

1 x 26 pins connector:
-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
-1 x RFID ( Tx/Rx )
-2 x Isolated CAN 2.0B
-1 x J1939/ISO15765-4 or J1708 (CAN05 or CAN06)
When installing CAN06, CAN2 becomes J1939/ISO15675-4
When installing CAN05, CAN2 becomes J1708
-1 x DR (Odometer + Speed)
-1 x iButton
-1 x GPI
Source: 9V ~ 60V-in (default)
Sink: external 0V ~ 60DC pull-high selected by software settings
Input High "1" Voltage: 3.3 ~ 60 VDC
Input Low "0" Voltage: 0 ~ 2 VDC
-2 x GPO
Source: 9V ~ 60V-in (default)
12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA
Sink:external external max. 0.5A pull high

1 x DB15 for expansion port

1 x 3-pin terminal block
-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)

Cooling system: Fanless

Enclosure: Aluminum die castig
Mounting: VESA 75

Ingress protection: Complete IP65, or IP65 without covering the
bottom

Dimension: 339.97mm(W) x 261.97mm(H) x 75.10mm(D)

Weight: 5kg

9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V)

Reverse protection/over voltage protection/under voltage protection

Ignition On/O control & programmable On/O delay timing

Wake up by LAN1, SMS, RTC and ignition

Operating temperatures: Ambient with air -30°C to 60°C

Storage temperatures: -30°C to 70°C

Relative humidity: 10% to 90% (non-condensing)

Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g

Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment = 75g
