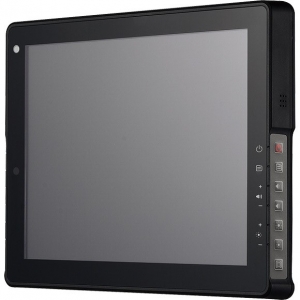

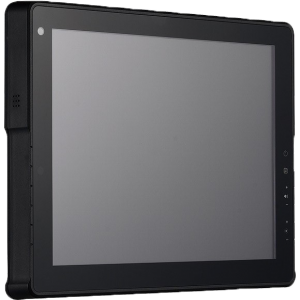

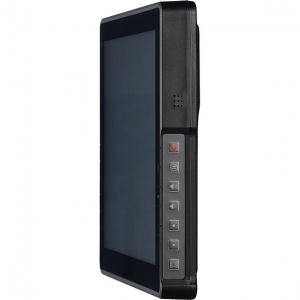

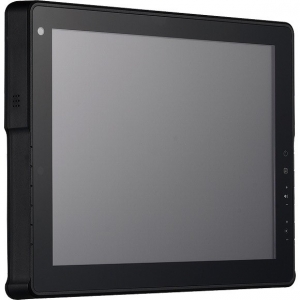

VMD 3002

10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, VGA and CVBS Interfaces

Giá: Liên hệ

Tính năng chính:

10.4" XGA TFT LCD panel
Slim bezel and compact design
Automatic/manual brightness control
Wide range power input 9~36VDC
Projected capacitive touch screen with multi-touch
Support four CVBS inputs to connect rearview camera
High brightness display for outdoor applications
Compliant with IP65

Báo giá sản phẩm

Datasheet (PDF)

VMD 3002 is a robust 10.4-inch TFT LCD monitor with enhanced brightness, projected capacitive touchscreen, and high-performance loudspeaker. It is designed with a single cable to consolidate power, display, and other control signals to ease the installation and secure the connection. It also features four analog video inputs to feed the real-time video from the rearview cameras to the display. VMD 3002 mechanical design is compliant with IP65. With the 1000nits ultra-high brightness display and adaptive brightness control, it is an ideal solution for in-vehicle and outdoor applications.

General	Enclosure: Plastic PC + ABS Mounting: Support VESA 75/100 Power Input: 9~36VDC Power Consumption: 18W Ingress Protection: IP65 Dimension: 256.5 x 202.1 x 31.5 mm Weight: 1.64Kg, 4.16Lb
LCD Panel	10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical, after touch screen is 1080cd/m²) Contrast Ratio: 500:1 (typical)
Touch Screen Sensor	Projected capacitive touchscreen Surface Hardness: 3H Multiple touch
I/O Interface-Front	1 x LED indicators (Power on/off, Auto Back-light, MCU update) 2 x Built-in 1W 8ohm speakers IR remote sensor
I/O Interface-Lateral	On-screen display buttons x 7 Display power on/off OSD menu Volume control (+/-) Brightness control (+/-) Autoconfiguration
I/O Interface-Bottom	Pigtail with multiple IO interface 4 x CVBS connector 1 x Line-in 1 x VGA 1 x USB 1 x COM (TX/RX) 1 x Power input connector (9 ~ 36Vdc)
Environment	Operating temperature: -20°C to 60°C Storage temperature: -30°C to 80°C Vibration (random): 2.5g@5~500 Hz Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approval FCC Class B

VMD 3002-BS (P/N: 10VD0300200X0)
10.4" XGA vehicle mount display with touch screen, VGA and CVBS Interfaces

Bundle Accessories

Part Number	Description
6030000043X00	External 50-pin Multi-I/O Cable, L=1120mm
602DCD0779X00	Driver CD

Certification
Date	Description	Version	OS	Download
2019-07-29	CE		Windows
2019-07-29	FCC		Windows

Driver
Date	Description	Version	OS	Download
2017-03-28	Touch Driver		Windows 8.1/8/7/XP
2017-03-28	Touch Driver		Linux
2017-03-28	Touch Driver		Windows 10

Certification
Date	Description	Version	OS	Download
2018-04-27	User Manual (Datasheet Only)		Windows
