VTC 7260-x

Intel® Core™ 11th Gen Tiger Lake UP3

Core i5-1145GRE, base frequency 1.5GHz/ 2.6GHz, 4c, 8 MB Intel® Smart Cache (VTC 7260-5)

Core i7-1185GRE, base frequency 1.8GHz/ 2.8GHz, 4c, 12 MB Intel® Smart Cache (VTC 7260-7)

Graphics:
- Intel® Iris® Xe graphics, 1.3GHz
- Max resolution: 4096 x 2304@60Hz (HDMI)
- DirectX: 12.1, OpenGL: 4.6

2 x SO-DIMM, DDR4-3200MHz

4GB+4GB in default, 64GB in max.ECC (in-band ECC), dual- channel support

1 x 2.5” SSD (15mm height)

1 x mPCIe for mSATA (SATA 3.0)

1 x M.2 2242/2280 Key M NVMe SSD (PCIe 4.0x4), Hailo AI card in option

1 x mPCIe socket (PCIe 3.0 + USB 2.0/ USB 3.2), 2 x micro SIMs supported

1 x M.2 3042/305

2 Key B socket (USB 3.2), 2 x micro SIMs supported

1 x M.2 2230 Key E socket (PCIe 3.0 x2 & USB 2.0), Wi-Fi or Hailo AI card in option

1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz

1 x VGA, up to 2560 x 1600@60Hz

1 x DP, 4096 x 2304@60Hz

3 x USB3.2 Gen1:
- Host type-A connector
- 5V@900mA each
- Up to 10Gbit/s link speed & compliance with USB 2.0 (LS/FS/HS link speed)

1 x USB 2.0, host type-A, 2 x USB 2.0 wafte-rtype reserved

2 x full RS232/422/485, selectable

1 x full RS232, 1 x full RS232 wafer-type reserved
- RS232 working voltage, +- 9V, baud rate up to 115.2kb/s

Line-out, unbalance stereo, left & right channel

MIC-in, stereo

Line-in reserved (wafer connector)

3D accelerometer and 3D gyroscope

Controller: ST LSM6DSLTR

4-bit input
- Source: 9~36VDC (12V@1.1mA/24V@2.2mA)
- External: 0~33VDC pull-high, high-level, 3.3-33 VDC; low-level, 0-2VDC4-bit output
- Source: 9~36VDC (nominal 35mA@24V):
- External: 5~27VDC pull-high, sink current w/ 220mA for each bit, 500mA max (@25C)

Source or external can be selected by DIP switch (default: source type)

1 x CAN 2.0A/ 2.0B

IEC 61000-4-2 Electrostatic Discharge (ESD): ± 8KV/15KV (contact/air)

2.5KV isolated

U-blox NEO-M9N GNSS module for GPS/GLONESS/QZSS/Galileo/Beidou

Optional DR (Dead Reckoning) function, NEO-M8U/M8L

Nominal voltage: 9~36V

Cranking voltage: 6V~9V (less than 20 sec)

OCP & UVP (shut down once exceeding 37V)

Ignition on/off control & programmable on/off delay timer

Optional for remote power on/off control

ATX power button, Reset button

9 x LED Indicators, 1 x VGA (DB15), 2 x COM (DB9, RS232/422/485), 1 x Multi-port (DB15, 4xDI, 4xDO, CAN, DR signal) , 1 x Ext. (DB15, reserved), 1 x PR-SMA for GNSS, 4 x PR-SMA for WLAN

2 x Audio jack (Line-out & MIC-in)

3 x USB 3.2 type A, 1 x USB 2.0 type A

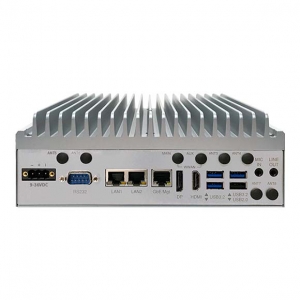

1 x HDMI, 1 x DP, 4 x PoE+ (2.5GbE, RJ45), 1 x COM (DB9, RS232), 1 x GbE, 9~36VDC (3-pin Phoenix), 4 x SMA for WWAN, 4 x antenna holes reserved

210.0mm x 173.0mm x 75.0mm (w/o mount brackets)

234.0mm x 173.0mm x 81.0mm (w/ mount brackets)

Weight: 3.5kg

Operating temperatures: -30°C~65°C (15W TDP)

Storage temperatures: -40°C~85°C

Relative humidity: 10%~95% (non-condensing)

Vibration in operating:
- MIL-STD-810H, 514.8C Procedure 6, Category 4
- IEC 60068-2-64: 2.0g@5~500Hz

Vibration in storage:
- MIL-STD-810G, 514.6E Procedure 1, Category 24, 7.7g

Shock:
- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
- Crash hazard: Procedure V, ground equipment=75g

Windows 10 64-bit/Windows 10 IOT 64-bit, Windows 11

Linux (Ubuntu 18.04)
