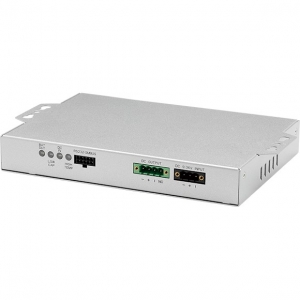

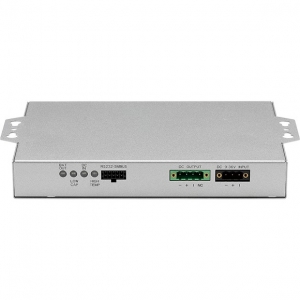

VTK-62B - bộ UPS thông minh cho ứng dụng In-Vehicle

Smart UPS Kit for In-Vehicle Application

Giá: Liên hệ

Tính năng chính:

Smart UPS for in-vehicle application
Big battery capacity 8600 mAh
Lithium-ion rechargeable cell
Real-Time battery status availability
SDK for software development
RS-232/SMBus for communication
Power off delay time setting

Báo giá sản phẩm

Datasheet (PDF)

VTK-62B - bộ UPS thông minh cho ứng dụng In-Vehicle

VTK-62B là bộ pin sạc thông minh để cung cấp nguồn điện liên tục với hệ thống quản lý pin tích hợp. Nó được thiết kế để sử dụng với các máy tính trên xe / máy tính sử dụng cho ứng dụng đường sắt NEXCOM với hiệu suất nạp / xả nâng cao. Thông qua giao diện RS-232 và SMBus, VTK-62B có thể cung cấp thông tin quan trọng về trạng thái của pin.

Power Input	9~36VDC
Power Output	10.8VDC
Battery Type	Lithium-ion
Capacity	8600mAh +/-5%
Smart Battery Status Information	Input voltage Battery capacity Battery temperature Discharge/charge/stop status Battery failure The value of delay-off timer
I/O Interface	1 x 3-pin terminal block (optional M12 connector) for GND, V-In and Ignition 1 x 4-pin terminal block (optional M12 connector) for GND, V-Out and Ignition 1 x 10-pin connectorRS232 (TX/RX) SMBus 2 x DOGND 4 x LED indicators Back-up battery power output Capacity alarm Temperature alarm Power in
Dimensions	VTK-62B + VTK-62B1-BK, 280 (W) x 150 (D) x 42.2 (H) mmVTK-62B + VTK-62B2-BK, 297.3 (W) x 175 (D) x 39 (H) mm
Environment	Operation temperature - Charging: 0~45°C - Discharging: 0~55°C Vibration - 2G, 5~500Hz (in operation) - Operation: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle Highway Truck - Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity test Shock - Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g - Crash Hazard: MIL-STD-810F, Method 516, Procedure V, Ground equipment=75g
Certification	CE/FCC class A

VTK-62B (PN: 10VK0062B00X0)

Back up battery kit (w/ o Bracket)

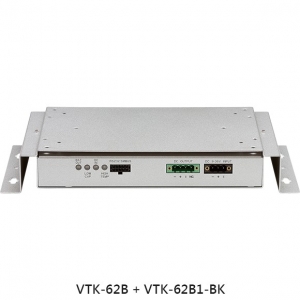

VTK-62B1-BK (PN: 10VK0062B01X0)

VTK-62B bracket kit, 150 x 280 x 42.2 mm for VTC 1020, VTC 1020-PA, VTC 1910, VTC 1911-IPK

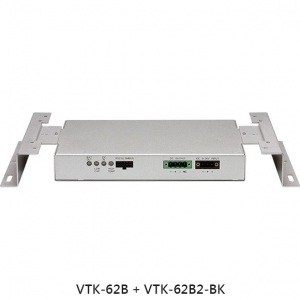

VTK-62B2-BK (PN: 10VK0062B02X0)

VTK-62B bracket kit, 175 x 297.3 x 39 mm for VTC and MVS series (w/ o VTC 1020, VTC 1020-PA, VTC 1910, VTC 1911-IPK)
