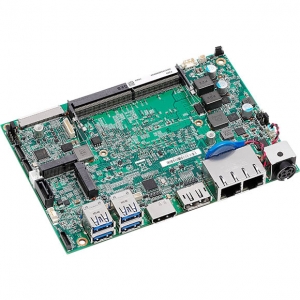

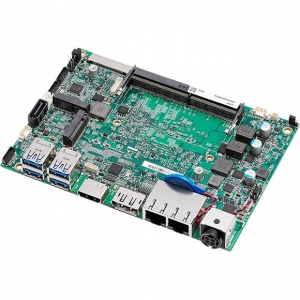

X200

Embedded Computing Board 3,5” được hỗ trợ bởi bộ xử lý Intel® Core ™ thế hệ thứ 11

Giá: Liên hệ

Tính năng chính:

11th Generation Intel® CoreTM (Tiger Lake-UP3) processor SoC
3.5” embedded form factor
Dual 4K @ 60Hz display output, DP++, HDMI 2.0
Support 4K @ 60Hz eDP display output
Dual LAN ports and USB 3.0 ports for easy connection
Onboard M.2 2280 Key M (PCIe x4) for storage modules
Onboard M.2 2230 Key E for optional Wi-Fi modules
Support extended temperature and outdoor application

Báo giá sản phẩm

X200 series is under the 3.5” SBC series which is based on a multi-core SoC Intel® Core™ processor (formerly codenamed “Tiger Lake”). X200 series operates with low power consumption. This series of 3.5-inch boards is aimed at embedded applications. It supports a maximum memory of 32GB DDR4 SDRAM. Also, it offers two display outputs of 4K HDMI, DP++, and eDP in order to provide the flexibility of supporting a range of peripherals. The X200 series is ideal for battery-powered portable devices, multimedia eDP panels, home automation, and thin clients.

CPU Support	Onboard 11th Generation Intel® Core™ i3-1115G4E processor, Dual-Core, 2.2 GHz base Frequency, 6M Onboard 11th Generation Intel® Core™ i5-1145G7E processor, Dual-Core, 1.5 GHz base Frequency, 8M Cach Onboard 11th Generation Intel® Core™ i7-1185G7E processor, Quad-Core, 1.8 GHz, 12M Cache (by request)
Chipset	SoC (codenamed Tiger Lake-UP3)
Main Memory	1 x 260-pin DDR4 SO-DIMM, supports non-ECC, un-buffered memory up to 32G
Graphics & Display	Intel® UHD graphics 630 on i3 processorIntel® Iris® Xe graphics on i5 processor 1 x DP++, support 4096 x 2304 @ 60Hz 1 x HDMI 2.0, support 4096 x 2160 @ 60Hz 1 x eDP, support 4096 x 2160 @ 60Hz
LAN	1 x Intel® I219-LM GbE PHY 1 x Intel® I211-AT GbE LAN
Storage	1 x M.2 2280 Key M, support PCIe x4 1 x SATA 3 & SATA power connector for optional 2.5” SSD 4 x USB 2.0, internal connector 1 x Mic-in, 1 x Line-out, internal connector 1 x Speaker-out with 2W/4Ω amplifier, internal connector 8 x GPIO pin header for 4 x GPI and 4 x GPO 1 x 4-pin connector for PWM smart FAN 1 x 12V, 2A power output coming from main power source to additional module use 1 x eDP: support 4096 x 2160 @ 60Hz Onboard TPM 2.0 (for SKU X200-i5) 1 x RS232/422/485, internal pin header (COM1) 1 x RS232, internal pin header (COM2)
I/O Function - Edge	1 x 12V DC Jack 2 x RJ45 Intel® Gigabit LAN port 1 x DP++ 1 x HDMI 2.0 4 x USB 3.2 (Gen 2)
Expansion	1 x M.2 2230 Key E, support optional Wi-Fi modules
Power Requirements	12V DC input via DC Jack2-Pin internal DC input connector as the option
Environment	Operating temperature: -20°C to 70°C Storage temperature: -20°C to 80°C Humidity: 10 to 90% (non-condensing)
Certification	CE Approval FCC Class A
Dimensions	146mm (W) x 102mm (D)
Operating System Support	Win10/Linux

X200-i5 (P/N: 10W10X20000X0)

Embedded board with Intel® Core™ i5-1145G7E processor

X200-i3 (P/N: 10W10X20002X0)

Embedded board with Intel® Core™ i3-1115G4E processor
