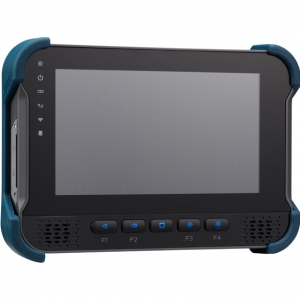

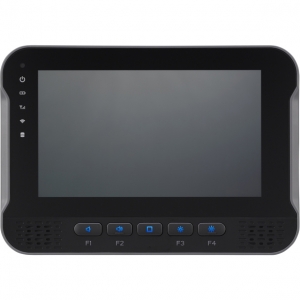

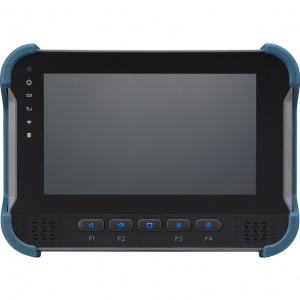

Máy tính gắn trên xe VMC 2020

8-inch TFT LCD panel with LED backlight

1280 x 720 pixels (HD)

Brightness: 1000 cd/m² (typical)

Viewing angle: 170° (H)/170°(V)

Contrast ratio: 1000:1 (typical)

Projected capacitive

Anti-glare coating surface

Transmission rate: 80 ± 3%

1 x eMMC 64GB (BOM optional 128GB)

1 x mSATA (occupied mini-PCIe slot)

1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)

1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0)

1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot

1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou

Optional M8U modules with dead reckoning available

G Sensor (3-axis, 10-bit resolution)

Volume control keys (+/-) with LEDBrightness control keys (+/-) with LEDF1~F4 programmable function keys with LED

1 x Shift key with LED1 x Light sensor

5 x LED indicators (power, battery, WWAN, WLAN, storage)

2 x Built-in 2W speakers

1 x Built-in Mic

1 x Full RS232 (COM, w/ 5VDC, 12VDC)

1 x Power connector, M12 A-coded 5-pin

1 x 10/100/1000 Mbps LAN, M12 A-coded

1 x M12 A-coded 8pin for 2 x USB 2.01 x M12 (MULTI PORT1, A-coded 8-pin)
- 2 x GPI
- 2 x GPO
- 1 x Isolated CANBus 2.0B

1 x M12 (MULTI PORT2, A-coded 12-pin)
- 1 x RS232 (Tx, Rx)
- 1 x RS232 (Tx, Rx)/RS422/RS485
- PWM (speed)+direction+GND, optional 4 x composite video input/ CAN-06

2 x SMA connector for WWAN

3 x SMA connector for WLAN1 x SMA connector for Bluetooth

1 x SMA connector for GNSS

Cooling system: fanless

Enclosure: plastic

IK Rating: IK08 (housing and touch screen)

Mounting: VESA 75Ingress protection: complete IP65

Dimension: 250 x 179 x 67.5 mm

Weight: 2.6 kg

9V~60V DC-in

Back-up battery for approx. 15 min of operation (optional)Reverse protection/over-voltage protection/under voltage protectionIgnition on/off control & programmable on/off delay timingWake up by LAN, SMS, RTC and ignition

13.56-MHz RFID/contactless standard protocols

Compatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smart label ISO15693

Operating temperatures: Ambient with air -30°C to 60°C, ambient with air and without battery

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)Vibration (random)
- 2g@5~500 Hz (in operation)Vibration
- Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4
- Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock
- Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers = 40g
- Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g

Windows 10

Linux (Kernel 4.x)
