MVS 2623-GCIoT (EOL)

CPU

Intel Atom® x7, 4C, 2.0GHz E3950 (Apollo Lake)

Memory

204-Pin DDR3L SO-DMIM socket support 1600MHz up to 8GB, default 4GB industrial grade memory

Google Edge TPU (Coral ML Accelerator Card)

Hardware interface: mini-PCIe (half size)

Serial interface: PCIe Gen2 x1

Performance: 4TOPS @2Watt

Operating voltage: 3.3V +/- 10 %

Dimensions: 30mm x 26.8mm x 2.5 mm

Storage

2 x 2.5” SATA 3.0 SSD/HDD, removable & hot swappable (optional lockable storage available)

Expansion

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

GNSS and On Board Sensor

1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

Optional modules with Dead Reckoning available

Built-in G-sensor

Power over Ethernet

8-Port RJ45 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W

Security

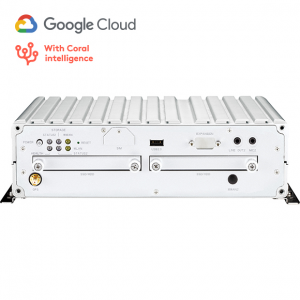

I/O Interface-Front

6 x LED indicators for power/storage/WLAN/WWAN/status/health

1 x Reset button

1 x USB type A USB 2.0 port

2 x Phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x Externally accessible SIM card sockets

2 x Antenna holes for WWAN/WLAN/BT/GPS

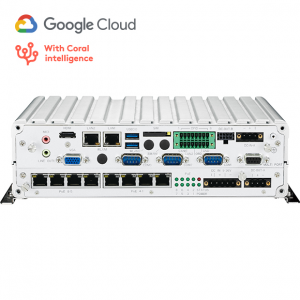

I/O Interface-Rear

8 x RJ45 10/100/1000 Mbps PoE ports with LED

2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED

1x 5-pin terminal block 9~36VDC-IN & 1x 3-pin terminal block for power cascade2 x USB type A USB 3.0 port

2 x Phone jacks 3.5mm for 1 x Mic-in and 1 x Line-out

1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz

1 x HDMI port, resolution up to 2560 x 1600 @60Hz

2 x DB-9 RS-232

1 x DB-9 RS-232/422/485 (RI/5V/12V selectable)

1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button

1 x DB9 connector for optional DR signal input, 2 x MDO and iButton
- 1 x 16-Pin terminal block connector
- 1 x CAN Bus 2.0B (on board)
- 1 x OBDII optional VIOB-CAN-03 module (SAE J1939)
- 1 x CAN Bus 2.0B optional VIOB-CAN-03 module
- 8 x Programmable GPIO
    (4 x Digital inputs in default)
     Input voltage (source type): 5VDC TTL (default)
     Input voltage (external type): 3~12VDC
    (4 x Digital outputs in default)
     Digital output (source type): 5VDC TTL (default), max current: 20mA
     Digital output (external type): 3~24VDC, max current: 150mA

1 x Externally acessible SIM card socket and 1x internal SIM card socket selectable

Power Management

9~36VDC-IN with ignition control (100W in max.)

Selectable boot-up & shut-down voltage for low power protection by software.

Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode

Rechargeable Battery (option)

Lithium-ion polymer

Nominal capacity 1100mAh

Maximum charge current 1.0CmA

Operating System

Debian Linux and other variants

Dimensions

260mm (W) x 196mm (D) x 79.6mm (H) (10.24” x 7.72” x 3.13”)4kg

Environment

Operating temperatures
- -30°C~60°C (w/ Google Edge TPU & industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random)
- 1.2g@5~500 Hz (in operation, HDD), 2.5g@5~500 Hz (in operation, SSD)Vibration (SSD/HDD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD/HDD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Certifications

CE approval, FCC Class A, E13 mark
