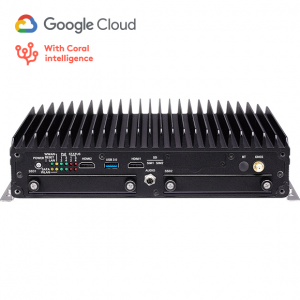

nROK 6222-GCIoT

CPU

Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core

Memory

1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. default 4GB

Google Edge TPU (Coral ML Accelerator Card)

Hardware interface: mini-PCIe (half size)

Serial interface: PCIe Gen2 x1

Performance: 4TOPS @2Watt

Operating voltage: 3.3V +/- 10 %

Dimensions: 30mm x 26.8mm x 2.5 mm

Video Output

Chipset Intel® HD graphics 505

2 x HDMI 1.4b up to 4096 x 2160 @30Hz

1 x VGA up to 1920 x 1200 @60Hz

Google Edge TPU (Coral ML Accelerator Card)

Storage

2 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)

1 x SD memory card 3.0 (externally accessible)

1x USB EDC for USB DOM

Expansion

1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 Key B (USB2.0 + USB 3.0) with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)

1 x Falf size mini-PCIe socket (USB 2.0 + PCIe 2.0)

GNSS and On Board Sensor

1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou

G Sensor (3-axis, 10-bit resolution)

TPM 2.0 (optional)

LAN and Power over Ethernet

4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W

1-Port LAN, 10/100/1000 Mbps I210-IT GbE

I/O Interface-Front

12 x LED indicators (including 3 x programmable LED)

2 x externally accessible SIM card socket with cover

2 x 2.5" removable SSD tray

1 x externally accessible SD card socket with cover

1 x reset button

1 x power button

1 x USB 3.0 type A (5V/0.9A)2 x HDMI 1.4b1 x M8 (6-pin) for 1 x Mic-in (mono), 1 x Line-out (Stereo)

2 x SMA antenna

I/O Interface-Rear

1 x M12 (5-pin) DC input with ignition
- 24 / 36 VDC (9~48V), non-isolation

1 x M12 X-coded LAN port, 10/100/1000 Mbps

4 x M12 X-coded PoE 802.3af/at (max. 60W)

1 x VGA

1 x M12 with two USB 2.0

1 x DB9 full RS-232 (isolation)

3 x SMA antenna

1 x DB15 (DIO)
- 4 x DI with isolation
- 4 x DO with isolation
- Vin, GND for GPIO

1 x DB15 (MULTI PORT)
- 1 x RS422/RS485
- 1 x RS232 (TX/RX)
- 1 x CAN 2.0B

Power Management & Software Support

Power input 24/36 VDC w/o isolation

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode

10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating System

Debian Linux and other variants

Dimensions

260mm (W) x 196mm (D) x 66.5mm (H)

Weight

3.4kg

Environment

-20°C~60°C (w/ Google Edge TPU & industrial SSD) with air flow

Storage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Standards/Certifications

CE

FCC Class A

EN 50155:2017
- Ambient temperature EN 50155, class OT4 (-40 ~ 70°C)
- Shock and vibration IEC 61373 class B
- Interruptions of voltage supply class S1,S2
- Supply change over class C1,C2
- EMC EN 50121-3-2:2016
