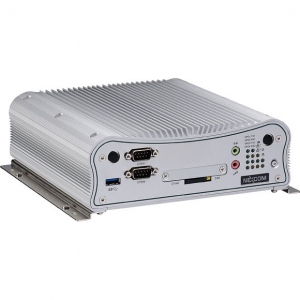

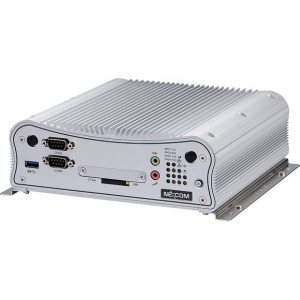

Máy tính công nghiệp NISE2400- J1900

Onboard Intel® Celeron® Processor J1900 Quad-Core, 2.0GHz

Support Intel® Atom™ E3800 processor family from single-core E3815, dual-core E3825/E3826/E3827 and quad-core E3845 with different SKUs

2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

Display Option

Dual independent display
- HDMI and DVI-I
- HDMI and VGA (via DVI-I connector)

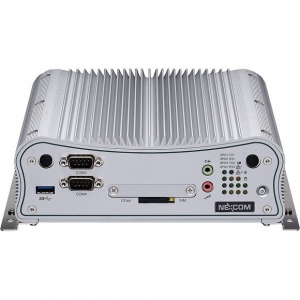

I/O Interface-Front

ATX power on/off switch

1 x Power status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs

2 x DB9 RS232 for COM3 & COM4

1 x External CFast socket

1 x SIM card holder

1 x USB 3.0 (900mA per each)

1 x Mic-in & 1 x Line-out

2 x Antenna holes for optional Wi-Fi/3.5G antenna

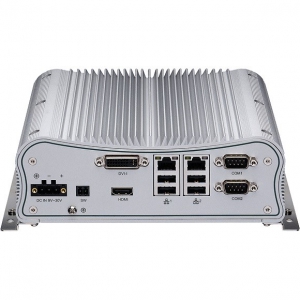

I/O Interface-Rear

4 x USB 2.0

1 x DVI-I display output

1 x HDMI display output

1 x Remote power on/off switch

2 x Intel® I210IT GbE LAN ports; support WoL, Teaming and PXE

2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/4851 x 3-pin DC input, support +9 to 30VDC input

I/O Interface - Internal

4 x GPI and 4 GPO (5V, TTL type)

Storage Device

1 x CFast card socket (SATA 2.0)

1 x 2.5" HDD space (SATA 2.0)

1 x mSATA from the mini-PCIe socket if SATA HDD is not installed

Expansion Slot

2 x mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G

Power Requirements

Power input: +9Vdc to +30Vdc

1 x Optional 24V, 60W power adapter

Dimensions

191mm (W) x 200mm (D) x 60mm (H) without wall-mount bracket

Construction

Aluminum and metal chassis with fanless design

Operating temperature:
Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -30°C to 85°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection:
HDD: 20G, half sine, 11ms, IEC60068-2-27
CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection w/ HDD condition:
Random: 0.5Grms @ 5~500Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6

Vibration protection w/ CFast & SSD condition:
Random: 2Grms @ 5~500Hz, IEC60068-2-64
Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6

Certifications

CE

FCC Class A

OS Support Lists

Windows 8, 32-bit/64-bit

Windows Embedded Standard 8, 32-bt/64-bit

Windows 7, 32-bit/64-bit

Windows Embedded Standard 7, 32-bit/64-bit

Windows 10 IoT Enterprise, 64-bit

Linux Kernel version 3.8.0
