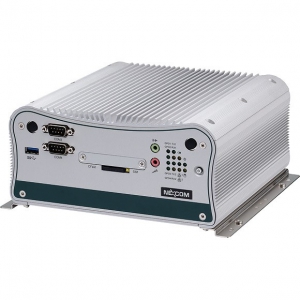

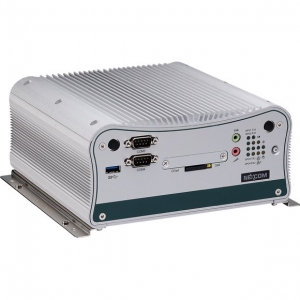

Máy tính công nghiệp NISE2410/2410E

Onboard Intel® Atom™ E3800 processor family

E3827 Dual-Core, 1.75GHz for NISE 2410

E3845 Quad-Core, 1.91GHz for NISE 2410E

Support Intel® Atom™ E3800 processor family from single-core E3815, dual-core E3825/E3826/E3827, and quad-core E3845 with different SKUs

Main Memory

2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

Display Option

Dual independent display

HDMI and DVI-I

HDMI and VGA (via DVI-I connector)

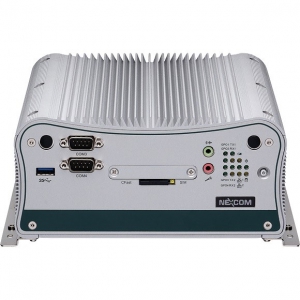

Front I/O Interface

ATX power on/off switch

1 x Power Status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs

2 x DB9 RS232 for COM3 & COM4

1 x External CFast socket1 x SIM card holder

1 x USB 3.0 (900mA per each)

1 x Mic-in & 1 x Line-out

2 x antenna holes for optional Wi-Fi/3.5G antenna

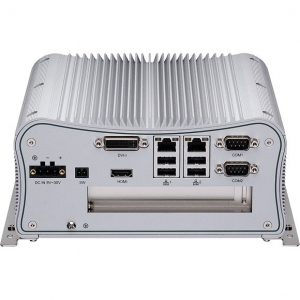

I/O Interface - Rear

4 x USB 2.0

1 x DVI-I display output

1 x HDMI display output

1 x remote power on/off switch

2 x Intel® I210IT GbE LAN ports, support wake on LAN, Teaming and PXE

2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control

Jumper-free setting on RS232/422/485

1 x 3-pin DC input, support +9 to 30VDC input

I/O Interface - Internal

4 x GPI and 4 GPO (5V, TTL Type)

Storage Device

1 x CFast card socket (SATA 2.0)

1 x 2.5" HDD space (SATA 2.0)

1 x mSATA from miniPCI socket if SATA HDD is not installed

Expansion Slot

2 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G

NISE 2410: One PCI Expansion

Add-on card length: 176mm max.

Power consumption: 10W/ slot max.

NISE 2410E: One PCIe x4 Expansion (only support PCIex1 speed & signal)

Add-on card length: 176mm max.

Power consumption: 10W/ slot max.

Power Requirements

Power input: +9Vdc to +30Vdc

1 x optional 24V, 60W power adapter

Dimensions

195mm (W) x 200mm (D) x 90mm (H) without wall-mount bracket

Construction

Aluminum and metal chassis with fanless design

Operating Temperature:

Ambient with air flow: -20°C to 70°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -30°C to 85°C

Relative humidity: 10% to 95% (non-condensing)

Shock Protection:

HDD: 20G, half sine, 11ms, IEC60068-2-27

CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration Protection w/ HDD Condition:

Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64

Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6

Vibration protection w/ CFast & SSD condition:

Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64

Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6

Certifications

CE

FCC Class A

OS Support Lists

Windows 8, 32-bit/64-bit

Windows Embedded Standard 8, 32-bit/64-bit

Windows 7, 32-bit/64-bit

Windows Embedded Standard 7, 32-bit/64-bit

Linux Kernel version 3.8.0
