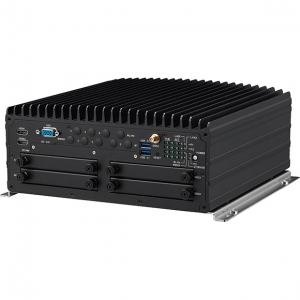

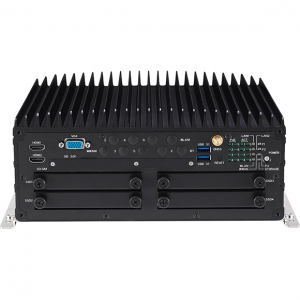

nROK 7252-AC8S

Chipset Intel® UHD graphics 630

2 x HDMI 1.4b up to 4096 x 2160 @ 30Hz

1 x VGA up to 1920 x 1200 @ 60Hz

4 x 2.5” SATA 3.0 external SSD (15mm)

2 x mSATA (occupied mini-PCIe slot)

1 x Removable SD 3.0

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 3.0/SATA)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 3.0/SATA), BOM optional M.2 Key B 3042 (USB 2.0 + USB 3.1 Gen 1) with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0 + USB 3.1 Gen 2 (BOM optional)), BOM optional M.2 Key B 3042/3050/3052 (USB 2.0 + USB 3.1 Gen 2 + PCIe 3.0 (BOM optional)) with 2 x external SIM

2 x M.2 Key B 3042/3050/3052 (USB 2.0 + USB 3.1 Gen 2 + PCIe 3.0 (BOM optional)) with 2 x external SIM

1 x Default U-blox NEO-M8N GNSS module for GPS/Glonass/QZSS/Galileo/Beidou

Optional M8U modules with dead reckoning available

G Sensor (3-axis, 10-bit resolution)

2-Port LAN M12 X-coded, 10/100/1000 Mbps Intel® I210/I219 (support iAMT) GbE

8-Port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 60W

24 x LED indicators (including 3 x programmable LED)

2 x HDMI 1.4b

1 x VGA

1 x USB 3.1 Gen 2 type A (5V/1A)

1 x USB 3.1 Gen 1 type A (5V/1A)

6 x Externally accessible SIM card sockets with cover

4 x 2.5” removable SSD tray

1 x SD with cover

1 x Reset button

1 x Power button

10 x SMA antenna

2 x LAN M12 X-coded, I210/I219 10/100/1000 Mbps

8 x PoE 802.3af/at (max. 60W), M12 X-coded

1 x Mic-in, 2 x Line-out (AUDIO, DB9, female)

1 x M12 A-coded connector for 2 x USB 2.0

2 x USB 3.1 (5V/1A) type A2 x DB9 (COM1/COM2) for full RS232 (isolation)

1 x DB9 (COM3) for full RS232/422/485 (isolation)

1 x DB15 (CAN/DIO)
- 1 x Isolated CANBus 2.0B
- 4 x DI and 4 x DO (isolation)
- Power in for DIO isolation, 9~48VDC

1 x Waterproof DC input connector with the ignition
- DC 24V/36V (w/o isolation)

3 x SMA antenna

power input 24VDC/36VDC w/o isolation

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating temperatures: EN 50155, class OT4 -40~70°C, 85°C for 10 minutes (w/ industrial SSD) with airflow

Storage temperatures: -40°C to 80°C

Relative humidity: 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
