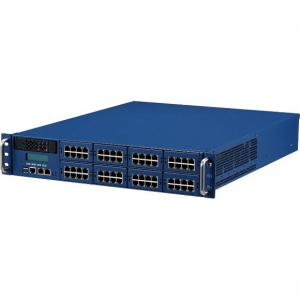

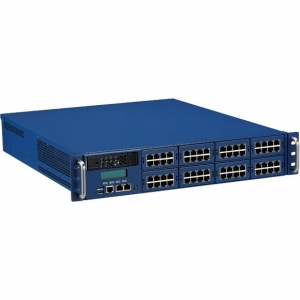

NSA 7135

Dual Intel® Xeon® Processor E5-2600 v4/v3 Product Family for Multi-Thread Network Processing

Giá: Liên hệ

Tính năng chính:

Dual Intel® Xeon® processor E5-2600 v4/v3 product family
Support DDR4 1866/2133 ECC & REG, up to 512GB
Modular design supports 8 LAN Modules Slots
Support Swappable 3.5" SATA/SAS HDD
Support CRPS (1 + 1) Redundant Power Supply
Support LCD Module

Báo giá sản phẩm

Datasheet (PDF)

NEXCOM has released the 2U network security appliance NSA 7135 to take on more security workloads and lower energy consumption to contribute to a greener world. Based on Intel® Xeon® E5-2600 v3 product family (codenamed Grantley), NEXCOM NSA 7135 features enhancements in computing performance, system responsiveness, I/O throughput and hardware design to safeguard network traffic for both enterprise and telecommunication applications.

Main Board	NSB 7135Dual Intel® Xeon® processor E5-2600 v4/v3 product family Support 9.6 GT/s QPI SpeedIntel® C612One PCIe x8 expansion slot (Internal)
Main Memory	16 x 284-pin DDR4 1866/2133 DIMM Sockets, up to 512GB ECC & REG SDRAM
LAN Features	Swappable LAN ModulesSupport Intel® i350/Intel® XL710 Copper/Fiber ports Support 10/100/1000/10G link speed LAN Bypass: ** please see datasheet

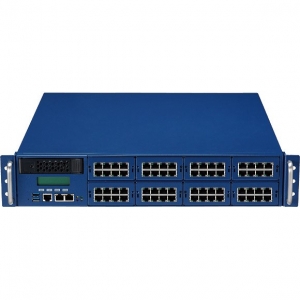

I/O Interface-Front	Support 2 x 20 Characters LCD module, SIO interface Power status/HDD status/GPIO status/system failure status LEDs 1 x 3.5" HDD Swappable bays 8 x LAN Module bays 2 x USB 2.0 ports 1 x RJ45 type Console port 1 x Reset button 2 x Management LAN ports

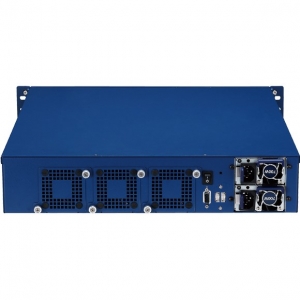

I/O Interface-Rear	3 x Swappable System FANs 1 x Power button switch 1 x VGA Port 2 x USB 2.0 ports
Devices	1 x onboard CFast socket
Power Input	700W 1+1 CRPS Redundant Power Supply
Chassis Dimensions	Chassis Dimension: 432mm x 550mm x 88mm Carton Dimension: 774mm x 636mm x 293mm
Weight	Without packing: 19kg With packing: 25kg
Environment	Operating temperatures : 0°C~40°C Storage temperature: -20°C~75°C Relative humidity : 10%~90% non-condensing
Certifications	CE approval FCC Class A UL

Barebone
NSA 7135 (P/N: 10S00713500X0)
2U Intel® Xeon® E5-2600 v4/v3 PCH C612, with LCM, 1 swappable 3.5" HDD tray,3 swappable system fans, 8 LAN module (NI/NX series) bays, 700W PSU

Model	P/N Controller	Interface	Type	Port Number	Bypass/Segment	Expansion Slot	Location Slot
NX 140F	10S20140F01X0	XL710-BM1	PCIe x8	4 SFP+	None	None	All Slot
NX 142F	10S20142F01X0	XL710-BM1	PCIe x8	4 SFP+	2 bypass	None	All Slot
NX 142F-LR	10S20142F03X0	XL710-BM1	PCIe x8	4 SFP+	2 bypass	None	All Slot
NI 120F	10S20120F00X0	X710-BM2	PCIe x8	4 SFP+	None	None	All Slot
NI 140F	10SK000NI02X0	i350AM4x1	PCIe x8	2 SFP+	None	None	All Slot
NI 180F	10S10180F01X0	i350AM4x2	PCIe x8	8 SFP	None	None	All Slot
NI 142C	10SK000NI03X0	i350AM4x1	PCIe x8	4 Copper	2 bypass	None	All Slot
NI 180C	10S10180C01X0	i350AM4x2	PCIe x8	8 Copper	None	None	All Slot
NI 184C	10S10184C01X0	i350AM4x2	PCIe x8	8 Copper	4 bypass	None	All Slot
NI 142F	10S10142F01X0	i350AM4x1	PCIe x8	4 SFP	2 bypass	None	All Slot
NI 121F	10S10121F01X0	i350AM2x1	PCIe x8	2 SFP	1 bypass	None	All Slot
NI 140C	10S10121F01X0	i350AM2x1	PCIe x8	4 Copper	None	None	All Slot

Manual
Date	Description	Version	OS	Download
2017-02-06	Quick Guide		Windows
2016-01-08	User Manual		Windows
