NViS 3620

2 x 2.5" SATA 3.0 SSD/HDD (externally accessible), RAID 0/1 supported (optional lockable storage available)

1 x CFast (externally accessible)

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

1 x default U-blox UBX-G6010 GPS module (50-channel and GALIELO) or optional modules with Dead Reckoning or GLONASS support

Built-in G-sensor

Windows 8, WES8Window 7, WES7

Linux kernel 3.X

4 x LED for power, storage, WWAN, WLAN

2 x Externally accessible SATA 3.0 SSD/HDD tray, RAID 0/1 supported (optional lockable storage available)

1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x Externally accessible SIM card socket (selectable)

1 x Phone jack 3.5mm for 1 x MIC-in

1 x Phone jack 3.5mm for 1 x Line-out

1 x Externally accessible CFast card socket with cover

1 x Event button (trigger type)

1 x Reset button

3 x Antenna hole for WWAN/WLAN/BT

1 x 9 ~ 36VDC input with ignition

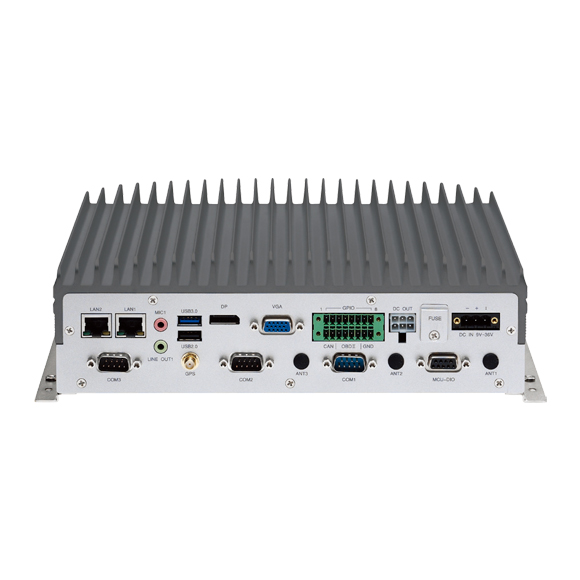

1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port

2 x RJ45 10/100/1000 Fast Ethernet with LED

1 x Phone jack 3.5mm for 1 x MIC-in

1 x Phone jack 3.5mm for 1 x Line-out with 1.5W output each

1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz

1 x DP port. Resolution up to 2560 x 1600 @60Hz2 x DB-9 RS232

1 x DB-9 RS232/422/485 (RI/5V/12V selectable)

1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO

1 x 16-pin terminal block

1 x CAN Bus 2.0B (on board)

1 x Optional OBDII module (ASE J1939 or J1708)

8 x Programmable GPIO
(Digital Input)
Input voltage (internal type): 5VDC TTL (default)
Input voltage (source type): 3 ~ 12VDC
(Digital Output)
Digital output (sink type): 5VDC TTL (default), max. current: 20mA
Digital output (source type): 3 ~ 24VDC, max. current: 150mA

1 x 12VDC output (2A), SM Bus

4 x Antenna hole for WWAN/WLAN/BT/GPS

1 x Fuse (15A)

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Status of ignition and low voltage can be detected by software

Support S3/S4 suspend mode

260mm (W) x 206mm (D) x 79.5mm (H) (10.24" x 8.11" x 3.13")

Weight: 2.5kg

Operating temperature: Ambient with air -30°C ~ 60°C

Storage temperature: -35°C ~ 85°C

Relative humidity: 10% ~ 90% (non-condensing)

Vibration (random): 1.5g@5 ~ 500Hz (in operation, HDD), 2g@5 ~ 500Hz (in operation, SSD)

Vibration (SSD/HDD):
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD/HDD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

CE approval

FCC Class B

E13 Mark
