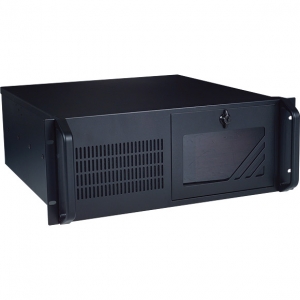

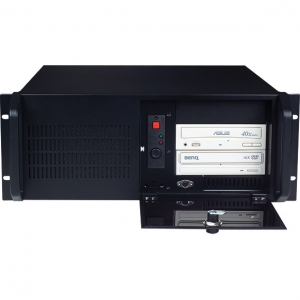

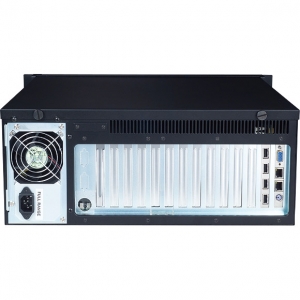

PBOX 440P

4U 14 Slots Full-sized PICMG 1.3 Rackmount Chassis

Giá: Liên hệ

Tính năng chính:

19" Rackmount Industrial Chassis
Supports 45nm/65nm Intel® Core™ 2 Quad & Core™ 2 Duo Processors with Greater Performance and Energy Efficiency
Supports Three 5.25" and One 3.5 Disk Drives
Front-accessible USB and PS/2 Ports
Supports the following 14-slot Backplane: NBP14570BX: 7 PCI, 1 PCIe x16 and 4 PCIe x1; NBP14210: 10 PCI, 1 PCIe x16 and 1 PCIe x4

Báo giá sản phẩm

Datasheet (PDF)

Hỗ trợ 2x PICMG 1.3 SBC và backplane khác nhau, PBOX 440P là khung máy rackmount 4U 19". Khi cấu hình với PICMG 1.3 single board computer, PEAK 872VL2, PBOX 440P hỗ trợ bộ xử lý Core ™ 2 Quad hoặc Core ™ 2 Duo 45nm/65nm với I/O có thể mở rộng trên các backlanes tương thích.

Main Board	SHB Express: PEAK 872VL2, PICMG 1.3 Full-Size, Intel® Q45 Chipset, LGA775 Core™ 2 Quad, Core™ 2 Duo support Max. 4GB DDR3 800/1066/1333 SDRAM, with VGA, Dual GbE LAN, PS2 output SHB Express: PEAK 870VL2, PICMG 1.3 Full-Size, Intel® 945G Chipset, LGA775 Core™ 2 Duo support Max. 4GB DDR2 400 DIMM,with VGA, dual GbE, PS2 output
Backplane Option	NBP 14570-BX, 7 PCI slots; 4 PCIe x1/1 PCIe x16 NBP 14210, 10 PCI slots; 1 PCIe x4 slots; 1 PCIe x16 slot
Physical Construction	Form Factor: 4U 19" rackmount industrial computing chassis Construction: Heavy-Duty Cold Rolled Electroplated Steel Color: Black Dimensions (W x H x D): 483mm x 177mm x 451mm (19" x 7" x 17.8") Mounting: 2 x Rack Mount Ear Cooling System: 2 x 92 mm Ball Bearing Fan Weight: 17Kgs (GW)
Indicator	Front panel Indicator: 1 x HDD status LED; 1 x Power LED
I/O Interface	Front panel external I/O: 1 x power on-off switch, 1 x power resetf switch, 2 x USB port, 1 x Keyboard Port
Storage Support	1 x 3.5" Drive Bay 3 x 5.25" Drive Bay
Power Supply	Power type: ATX mode Input Voltage: 100-240 VACMax. Output Power: 400W (for PEAK870VL2) Power Supply Certifi cations: CE/FCC Class B/UL 60950/TUV EN60950
Environment	Operating temperature: 0°C to 40°C (32°F ~ 104°F) Operating Humidity: 10% ~ 90% (Non-condensing) Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Non-Operating Humidity: 10% ~ 95% @ 40 °C non-condensing
Certifications	CE approval FCC Class A

PBOX 440P-14570-870 (P/N: 79R00440P01X0) RoHS Compliant
Chassis: PBOX 440P, Chassis Fan w/Filter,
Chassis Color: Black,
Power Supply: 400W ATX,
M/B: PEAK 870VL2
Backplane: NBP 14570-BX,
Dimensions: 483 (W) x 177 (H) x 451 (D) mm,
CPU Cooler included

PBOX 440P-14210-870(P/N: 79R00440P02X0) RoHS Compliant
Chassis: PBOX 440P, Chassis Fan w/Filter,
Chassis Color: Black,
Power Supply: 400W ATX,
M/B: PEAK 870VL2
Backplane: NBP 14210,
Dimensions: 483 (W) x 177 (H) x 451 (D) mm,
CPU Cooler included

PBOX 440P-14570-872 (P/N: 90R440P0003X0) RoHS Compliant
Chassis: PBOX 440P, Chassis Fan w/Filter,
Chassis Color: Black,
Power Supply: 400W ATX,
M/B: PEAK 872VL2
Backplane: NBP 14570-BX,
Dimensions: 483 (W) x 177 (H) x 451 (D) mm,
CPU Cooler included

PBOX 440P-14210-872 (P/N: 90R440P0004X0) RoHS Compliant
Chassis: PBOX 440P,
Chassis Fan w/Filter,
Chassis Color: Black,
Power Supply: 400W ATX,
M/B: PEAK 872VL2
Backplane: NBP 14210,
Dimensions: 483 (W) x 177 (H) x 451 (D) mm,
CPU Cooler included

Driver
Date	Description	Version	OS	Download
2011-05-25	Audio	PEAK872VL2	Windows
2011-05-25	Audio	PEAK870VL2	Windows
2011-05-25	BIOS	PEAK870VL2	Windows
2011-05-25	Chipset	PEAK872VL2	Windows
2011-05-25	Chipset	PEAK870VL2	Windows
2011-05-25	Graphic	PEAK872VL2	Windows
2011-05-25	Graphic	PEAK870VL2	Windows
2011-05-25	LAN	PEAK870VL2	Windows
2011-05-25	RAID	PEAK870VL2	Windows
2011-05-25	RAID	PEAK872VL2	Windows
