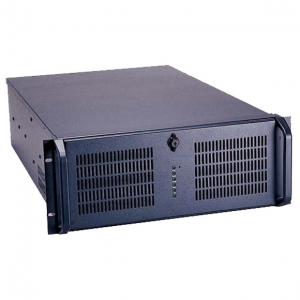

PBOX 460P

4U 14/20 Slots Full-sized PICMG 1.3 Rackmount Chassis

Giá: Liên hệ

Tính năng chính:

19" Rackmount Industrial Chassis
Support Dual-core Intel® Xeon® Processor 5100 Series and Quadcore Intel® Xeon® Processor 5300 Series (80W)
Supports Three 5.25” and One 3.5 Disk Drives
Front-accessible USB and PS/2 Ports
Supports the Following Backplane: NBP14111: 1 PCI, 1 PCIe X8 and 8 PCI-X (64-bit x 66MHz); NBP20016: 16 PCI-X (64-bit x 66MHz)

Báo giá sản phẩm

Datasheet (PDF)

Hỗ trợ 2x PICMG 1.3 SBC và các backplane khác nhau, PBOX 460P có khung rackmount 4U 19 ". Khi cấu hình với PICMG 1.3 SBC, PEAK 8920VL2, PBOX 460P hỗ trợ bộ xử lý Intel® XEON 5100/ 5300 series với I/O có thể mở rộng trên các backlanes tương thích.

Main Board	SHB Express: PEAK 8920VL2 PICMG 1.3 full-size, support dual-core Xeon® LGA771 processor 4 x 240-pin four channel DDR 2 FB-DIMM, support ECC/Register DDR2 memory up to 8GB 2 x Intel® GbE, 1 x VGA, 4 x USB
Backplane Option	NBP 14111: 1 PCI, 1 PCIe X8 and 8 PCI-X (64-bit x 66MHz)NBP 20016: 16 PCI-X (64-bit x 66MHz)
Physical Construction	Form factor: 4U 19” rackmount industrial computing chassis Construction: Heavy-duty cold rolled electroplated steel Color: black Dimensions (W x H x D): 483mm x 177mm x 671mm (19”x 7”x 26.5”) Mounting: 2x rack mount ear Cooling system: four 92x 92x 25mm ball bearing fan Weight: 24 Kgs (GW)
Indicator	Front panel Indicator: 1x HDD status LED; 1x power LED
I/O Interface	Front panel external I/O: 1 x power on-off switch, 1 x power reset switch
Storage Support	1 x 3.5" Drive Bay3 x 5.25" Drive Bay
Power Supply	Power type: ATX modeInput voltage: 100V-240V ACMax. output power: 500W Power supply certifications: CE/FCC, UL, TUV
Environment	Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 90% (Non-condensing) Storage temperature: -20°C to 60°C (-4°F to 140°F) Non-operating humidity: 10% to 95% @ 40 °C non-condensing
Certifications	CE approval FCC Class A

PBOX460P-20016-8920 (P/N: 90R460P0000X0) RoHS Compliant
Chassis: PBOX 460P, chassis fan w/ filter;
Chassis Color: black;
Power supply: 500W ATX;
M/B: PEAK 8920VL2;
Backplane: NBP 20016;
Dimensions: 483mm (W) x 177mm (H) x 671mm (D);
2x CPU cooler included

PBOX460P-14111-8920 (P/N: 90R460P0001X0) RoHS Compliant
Chassis: PBOX 460P, chassis fan w/ filter;
Chassis Color: black;
Power supply: 500W ATX;
M/B: PEAK 8920VL2;
Backplane: NBP 14111;
Dimensions: 483mm (W) x 177mm (H) x 671mm (D); 2x CPU cooler included

Driver
Date	Description	Version	OS	Download
2011-05-25	Chipset	PEAK8920VL2	Windows
2011-05-25	Graphic	PEAK8920VL2	Windows
2011-05-25	LAN	PEAK8920VL2	Linux
2011-05-25	LAN	PEAK8920VL2	Windows
