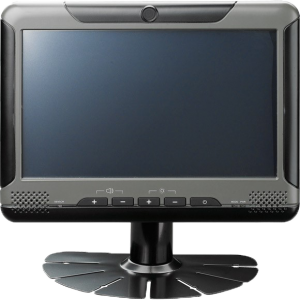

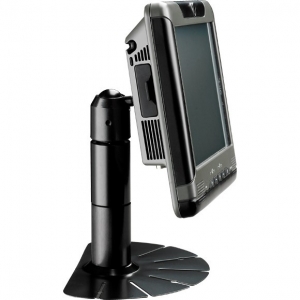

VMD 1000

7" WVGA Vehicle Mount Display with Touch Screen and LVDS Interface

Giá: Liên hệ

Tính năng chính:

7" WVGA TFT LCD monitor
Automatic/ manual brightness control
Remote system power control
On-screen control buttons
Support USB 2.0 and card reader
Optional sunlight readable touch support
Front panel compliant with IP54

Báo giá sản phẩm

Datasheet (PDF)

VMD 1000 is a 7-inch TFT LCD monitor with a 4 wire resistant touch screen sensor. With the high brightness display and automatic brightness control, it is designed for in-vehicle application. It also provides USB and card reader features. Those friendly interfaces benefit the technicians during maintenances. Its front panel is compliant to IP54 to meet with industrial applications. VMD 1000 can perfectly match with any VTC series devices via the 26-pin LVDS cable.

General	Enclosure: Plastic PC + ABS Mounting: Support VESA 75, panel and wall mounting Power Input: 12VDC Power Consumption: 12W Ingress Protection: Front panel IP54 Dimension: 182mm (W) x 138mm (H) x 36.3mm (D) (7.17" x 5.43" x 1.43") Weight (Net): 0.45Kg, 0.99Lb
LCD Panel	7-inch TFT LCD panel with LED backlight 800 x 480 pixels (WVGA) Brightness: 500 cd/m² (typical) Contrast ratio: 600:1 (typical)
Touch Screen Sensor	4-wire resistant touch Anti-glare coating surface Transmission rate: 82 ± 3%
I/O Interface-Front	5 x Control buttons Power on/off Volume control (+/-) Brightness control (+/-)Light sensor 2 x LED indicators 2 x Built-in speakers (1W)

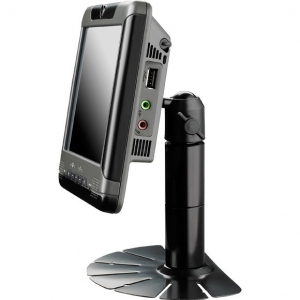

I/O Interface-Lateral	1 x SD/ MMC/ MS Card Reader 1 x USB type A for Storage 1 x Line-out (switch to external speaker by auto-detection) 1 x Mic-in (from external microphone)

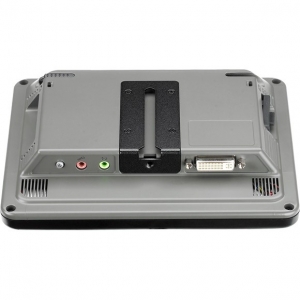

I/O Interface-Bottom	Remote System Power On/ Off Button 1 x Mic-out1 x Line-in 1 x LVDS Connector (integrating LVDS, USB x 1 and 12Vdc x 1)
Optional Features	Sunlight-readable touch screen (4 wires resistive w/ anti-glare coating) Supports VESA mount kit
Environment	Operating temperature: -20°C to 70°C Storage temperature: -30°C to 80°C Vibration (random): 5g@5~500 Hz Vibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks andsemi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approval FCC Class B

VMD 1000-B (P/N: 10VD0100000X0)
7" WVGA vehicle mount display with touch screen and LVDS interface

VMD 1000-BS (P/N: TBD)
7" WVGA vehicle mount display with touch screen, LVDS and sunlight readable

Bundle Accessories
LVDS cable (1.5M)
Metal stand kit
Cable fastener
CD-ROM x 1

Certification
Date	Description	Version	OS	Download
2019-07-31	CE		Windows
2019-07-31	FCC		Windows

Driver
Date	Description	Version	OS	Download
2011-05-24	Touch Screen Driver	Touch Screen Driver	Linux
2011-05-24	Touch Screen Driver	Touch Screen Driver	Windows

Manual
Date	Description	Version	OS	Download
2017-02-14	User Manual (Datasheet Only)		Windows
