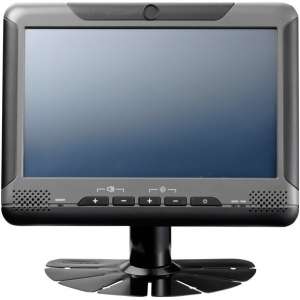

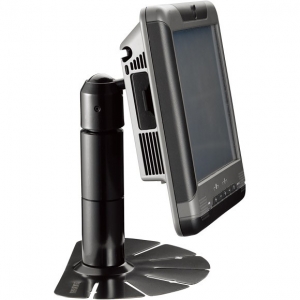

VMD 1001

Màn hình cảm ứng gắn trên xe 7", hỗ trợ giao diện VGA

Giá: Liên hệ

Tính năng chính:

7" VGA TFT LCD monitor
Automatic/ manual brightness control
Wide range DC input 9~36V
Direct VGA input interface
Support USB 2.0 and card reader
Optional sunlight readable touch support
Front panel compliant with IP54

Báo giá sản phẩm

Datasheet (PDF)

VMD 1001 is a 7-inch TFT LCD monitor with a 4 wire resistant touch screen sensor. With the high brightness display and automatic brightness control, it is designed for in-vehicle application. In support of the standard VGA interface, it can be configured to link to the most of vehicle computers. It also provides USB and card reader features. Those friendly interfaces benefit the technicians during maintenances. Its front panel is compliant to IP54, and wide range power input and operating temperature to meet with industrial application.

General	Enclosure: Plastic PC + ABS Mounting: Support VESA 75, panel and wall mounting Power Input: 9 ~ 36VDC Power Consumption: 18W Ingress Protection: Front panel IP54 Dimension: 182mm (W) x 138mm (H) x 36.3mm (D) (7.17" x 5.43" x 1.43") Weight (Net): 0.45Kg, 0.99Lb
LCD Panel	7-inch TFT LCD panel with LED backlight 800 x 480 pixels (VGA) Brightness: 500 cd/m² (typical) Contrast ratio: 600:1 (typical)
Touch Screen Sensor	4-wire resistant touch Anti-glare coatingsurfaceTransmission rate: 82 ± 3%
I/O Interface-Front	5 x Control buttons Power on/off Volume control (+/-) Brightness control (+/-) Light sensor 2 x LED indicators 2 x Built-in speakers (1W)
I/O Interface-Lateral	1 x SD/ MMC/ MS card reader 1 x USB type A for storage 1 x Line-in 1 x Line-out (automatic detection/ switch to external speaker)

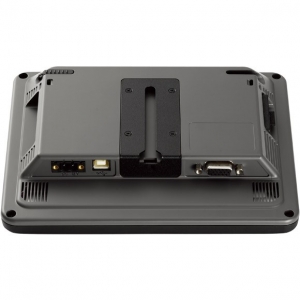

I/O Interface-Bottom	1 x Power connector 1 x USB type B for touch screen and USB hub 1 x VGA
Optional Features	Sunlight-readable touch screen (4 wires resistive w/ anti-glare coating) Support VESA 75, wall and stand mount kit
Environment	Operating temperature: -20°C to 70°C Storage temperature: -30°C to 80°C Vibration (random): 5g@5~500 Hz Vibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approval FCC Class B

VMD 1001-B (P/N: 10VD0100101X0)
7" WVGA vehicle mount display with touch screen and VGA interface

VMD 1001-BS (P/N: TBD)
7" WVGA vehicle mount display with touch screen, VGA and sunlight readable

Bundle Accessories
VGA cable (1.5M)
USB cable (1.5M )
Metal stand kit
Cable fastener
CD-ROM x 1

Certification

Date

Description

Version

Download

2019-08-01

Windows

2019-08-01

FCC

Windows

Driver
Date	Description	Version	OS	Download
2019-07-31	MCU Update SDK		Windows
2019-07-31	SDK		Windows
2019-07-31	Touch		XP Driver
2019-07-31	Touch		Test Tool

Manual
Date	Description	Version	OS	Download
2019-07-31	User Manual (Datasheet Only)		Windows
