VMD 2000

8” SVGA Vehicle Mount Display with Touch Screen and LVDS Interface

Giá: Liên hệ

Tính năng chính:

8" SVGA TFT LCD monitor
Automatic/ Manual brightness control
Remote system power control
On-screen control buttons
Support USB 2.0 and card reader
Sunlight readable solution with 800cd/m² high brightness support
Front panel compliant with IP54

Báo giá sản phẩm

Datasheet (PDF)

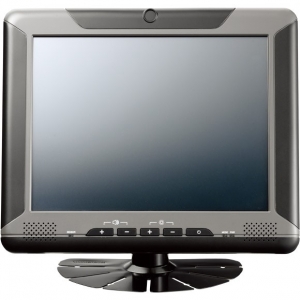

VMD 2000 is an 8-inch TFT LCD monitor with 4 wire resistant touch screen sensor. With the high brightness display and automatic brightness control, it is designed for in-vehicle applications. It also provides USB and card reader features. Those friendly interfaces benefit the technicians during maintenances. Its front panel is compliant to IP54 to meet with industrial applications. VMD 2000 can perfectly match with any VTC series devices via the 26-pin LVDS cable.

General	Enclosure: Plastic PC + ABS Mounting: Support VESA 75, panel and wall mounting Power Input: 12VDC Power Consumption: 15W Ingress Protection: Front panel IP54 Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44") Weight (Net): 0.7Kg, 1.54Lb
LCD Panel	8-inch TFT LCD panel with LED backlight800 x 600 pixels (SVGA) Brightness: 500 cd/m² (typical) Optional high brightness for sunlight-readable with 800cd/m2 After touch screen is 640cd/m2 Contrast ratio: 500:1 (typical)
Touch Screen Sensor	4-wire resistant touch Anti-glare coating surface Transmission rate: 82 ± 3%
I/O Interface-Front	On-screen display buttons x 5 Power on/off Brightness control (+/-) Volume control (+/-)Light sensor 2 x LED indicators 2 x Built-in speakers (1.2W)
I/O Interface-Lateral	1 x SD/ MMC/ MS card reader 1 x USB type-A Host 1 x Line-out (automatic detection/ switch to external speaker) 1 x Mic-in
I/O Interface-Bottom	Remote System Power On/ Off Button 1 x Mic-out 1 x Line-in 1 x LVDS Connector (integrating LVDS, USB x 1 and 12Vdc x 1)
Optional Features	Sunlight-Readable Display with High Brightness LCD (800 cd/m²) Support Panel and wall mount kit
Environment	Operating temperature: -20°C to 60°C Storage temperature: -30°C to 70°C Vibration (random): 2.5g@5~500 HzVibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approval FCC Class B

VMD 2000 (P/N: 10VD0200000X0)
8" SVGA vehicle mount display with touch screen and LVDS interface

VMD 2000-BS (P/N: 10VD0200001X0)
8" SVGA vehicle mount display with touch screen, LVDS and sunlight readable

Bundle Accessories
LVDS cable (1.5M)
Audio cable
Cable fastener
CD-ROM x 1

Certification
Date	Description	Version	OS	Download
2019-08-01	CE		Windows
2019-08-01	FCC		Windows

Driver
Date	Description	Version	OS	Download
2012-03-22	Touch Driver		Windows
2012-03-22	Touch Driver		Linux

Manual
Date	Description	Version	OS	Download
2017-02-14	User Manual (Datasheet Only)
