VMD 2002

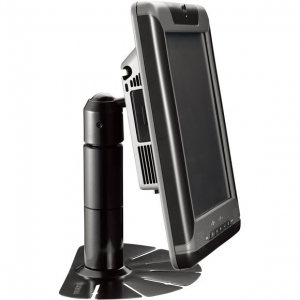

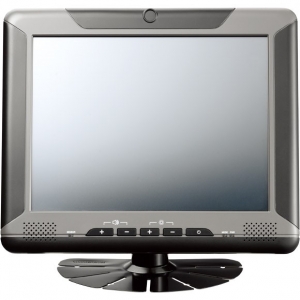

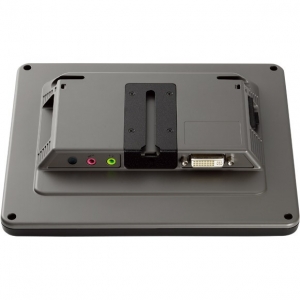

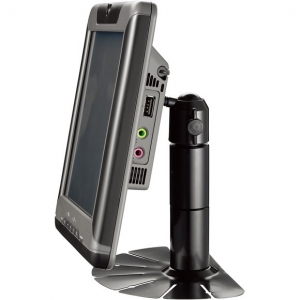

8” SVGA Vehicle Mount Display with Touch Screen and USB, VGA and Power cable integrated

Giá: Liên hệ

Tính năng chính:

8" SVGA TFT LCD Monitor
Automatic/ Manual brightness control
Wide range DC input 9~36V
On-screen control buttons
Support USB 2.0 and card reader
Sunlight readable solution with 800cd/m2 high brightness LCD support
Front panel compliant with IP54

Báo giá sản phẩm

Datasheet (PDF)

VMD 2002 is an 8-inch TFT LCD monitor with 4 wire resistant touch screen sensor. With the high brightness display and automatic brightness control, it is designed for in-vehicle applications. In support of the standard VGA interface, it can be configured to link to the most of vehicle computers. It also provides USB and card reader features. Those friendly interfaces benefit the technicians during maintenances. Its front panel is compliant to IP54, and wide range power input and operating temperature to meet with industrial applications.

General	Enclosure: Plastic PC + ABS Mounting: Support VESA 75, panel and wall mounting Power Input: 9~36VDC Power Consumption: 15W Ingress Protection: Front panel IP54 Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44") Weight (Net): 0.7Kg, 1.54Lb
LCD Panel	8-inch TFT LCD panel with LED backlight 800 x 600 pixels (SVGA) Brightness: 400 cd/m² (typical) Optional high brightness for sunlight-readable with 800cd/m2 After the touch screen is 640cd/m2 Contrast ratio: 500:1 (typical)
Touch Screen Sensor	4-wire resistant touch Anti-glare coating surface transmission rate: 82 ± 3%
I/O Interface-Front	On-screen display buttons x 5 Power on/off Brightness control (+/-) Volume control (+/-) Light sensor 2 x LED indicators 2 x Built-in speakers (1.2W)
I/O Interface-Lateral	1 x SD/ MMC/ MS card reader 1 x USB type-A Host 1 x Line-out (automatic detection/ switch to external speaker) 1 x Mic-in
I/O Interface-Bottom	1 x Mic-out1 x Line-in1 x DVI-D Connector (integrating VGA, USB x 1 and 12Vdc x 1)
Optional Features	Sunlight-Readable Display with High Brightness LCD (800 cd/m²) Support Panel and wall mount kit
Environment	Operating temperature: -20°C to 60°C Storage temperature: -30°C to 70°C Vibration (random): 2.5g@5~500 Hz Vibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approval FCC Class B

VMD 2002-B (P/N: 10VD0200202X0)
8" SVGA vehicle mount display with touch screen and USB, VGA and Power cable integrated

VMD 2002-BS (P/N: 10VD0200203X0)
8" SVGA vehicle mount display with touch screen, USB, VGA, Power cable integrated and sunlight readable

Bundle Accessories
VGA, USB and Power integrated cable (1.5M)
Audio cable
Cable fastener
CD-ROM x 1

Certification
Date	Description	Version	OS	Download
2019-08-01	CE		Windows
2019-08-01	FCC		Windows

Manual (Please Contact Sales: 024 38 389 389)
Date	Description	Version	OS	Download
2019-08-01	User Manual (Datasheet Only)
