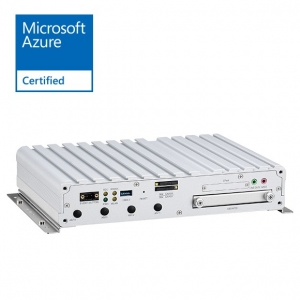

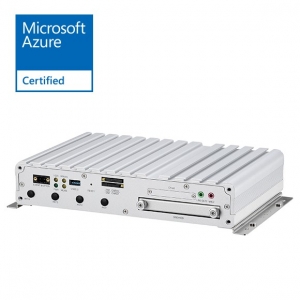

VTC 6210-BK

1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)

1 x CFast (externally accessible)

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe)

1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead Reckoning

Built-in G-sensor

4 x LED for power, storage, WWAN, WLAN

2 x Externally accessible SIM card socket (selectable)

1 x Phone jack 3.5mm for 1 x Mic-in

1 x Phone jack 3.5mm for 1 x Line-out

1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray

1 x Externally accessible CFast card socket with cover

1 x Event button (trigger type)

1 x Reset button

1 x Type A USB 3.0 compliant host, supporting system boot up

4 x Antenna hole for WWAN/WLAN/BT

1 x 9 ~ 36VDC input with ignition and 19W typical power consumption

2 x Type A USB 2.0 compliant host, supporting system boot up

2 x RJ45 10/100/1000 Fast Ethernet with LED

1 x Phone jack 3.5mm for 1 x Mic-in

1 x Phone jack 3.5mm for 1 x Line-out

1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz

1 x DP port, resolution up to 2560 x 1600 @60H

1 x Antenna hole for GPS

2 x DB-9 RS-232 (RI/12V selectable)

1 x DB-9 RS-422/485

1 x DB-9 for CAN 2.0B (optional CAN Bus 2.0B mini-PCIe card), 2 x MCU-DI and 2 x MCU-DO

1 x 16-pin terminal block
- 1 x CAN Bus 2.0B (on board)
- 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
- 8 x GPIO (Programmable Digital Input or optional isolation)
Input Voltage (internal type): 5VDC TTL (default)
Input Voltage (source type): 3 ~ 12VDC (Programmable digital input and digital output)
Digital output (sink type): 5VDC TTL (default), max current: 20mA
Digital output (source type): 3 ~ 24VDC, max current: 150mA

1 x 12VDC output (2A), SM Bus

Windows 8, WES8Windows 7, WES7

FedoraWind River® Intelligent Device Plat XT 2.0

260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97")

Weight: 2.1kg

Operating temperatures:
-30°C to 70°C (w/ industrial SSD) with air flow
-20°C to 50°C (w/ commercial HDD) with air flow

Storage temperatures: -35°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random):
1g@5 ~ 500 Hz (in operation, HDD), 2g@5 ~ 500 Hz (in operation, SSD)

Vibration (SSD/HDD):
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier
US highway truck vibration exposure
Storage: MIL-STD-810G, Method 514.6, Category 24, minimum
integrity test

Shock (SSD/HDD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional
shock=20g
Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash
hazard shock test=75g

CE approval

FCC Class A

E13 Mark
