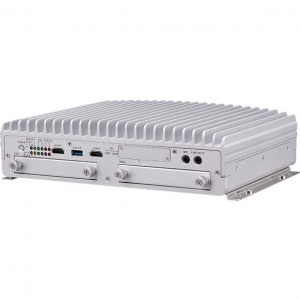

VTC 6222

Fanless 4-CH PoE In-Vehicle Computer with Intel Atom® E3950

Giá: Liên hệ

Tính năng chính:

Intel Atom® processor quad core E3950, up to 2.0GHz
4 x PoE (802.3af/at, max. 60W)
Built-in u-blox-M8N GPS
Built-in CAN Bus 2.0B
Three video outputs, one VGA and two HDMI
E Mark conformity
3 x mini-PCIe socket expansion
Dual external storage (compatible with 15mm disk)
1 x USB DOM to run OS
1 x SD card for exporting and backing up data

Báo giá sản phẩm

PDF

VTC 6222, based on Intel Atom^® quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent E mark standard in rugged, fanless and compact mechanism. VTC 6222 provides complete communication capability between vehicle and computer with build-in CAN BUS 2.0B interface. Equipped with intelligent power management, VTC 6222 can be waked on by ignition, RTC timer or SMS message remotely. VTC 6222 supports 4 x 802.3at/3af (max. 60W) PoE ports to connect with IP cameras. The design of 2.5" removable SSD and SD memory card helps to access storage easily.
VTC 6222 keeps the flexibility to meet the demand for video surveillance in vehicle application.

CPU	Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Video Output	Chipset Intel® HD graphics 505 2 x HDMI 1.4b up to 4096 x 2160 @30Hz 1 x VGA up to 1920 x 1200 @60Hz
Storage	2 x 2.5" SSD/HDD SATA 3.0 (compatible with 15mm drive) 1 x SD memory card 3.0 (externally accessible) 1x USB EDC for USB DOM
Expansion	1 x Full size mini-PCIe socket (USB 2.0) for LTE module, BOM optional M.2 3042 Key B (USB 2.0, USB 3.0) for LTE/5G NR module with 2 x external SIM 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0) 1 x Half size mini-PCIe socket (USB 2.0, PCIe 2.0)
GNSS and On Board Sensor	1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouG Sensor (3-axis, 10-bit resolution)
LAN and Power over Ethernet	4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W1-Port LAN, 10/100/1000 Mbps I210-IT GbE
Security	TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional)

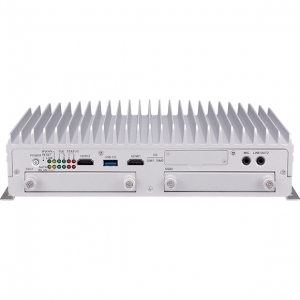

I/O Interface-Front	12 x LED indicators (including 3 x programmable LED) 2 x Externally accessible SIM card socket with cover 2 x 2.5" removable SSD tray 1 x Externally accessible SD card socket with cover 1 x Reset button1 x Power button 1 x USB 3.0 type A (5V/0.9A) 2 x HDMI 1.4b 1 x Mic-in, 1 x Line-out

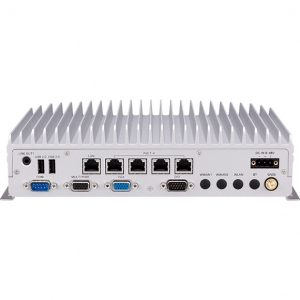

I/O Interface-Rear	1 x 3-pin terminal block for 9V~48V DC 1 x RJ45 10/100/1000 Mbps 4 x PoE 802.3af/at (max. 60W) 1 x VGA 1 x DB9 full RS232 4 x SMA antenna 2 x USB 2.0 type A (5V/0.5A) 1 x Line-out 1 x DB15 (DIO) - 4 x DI with isolation - 4 x DO with isolation - Vin, GND for GPIO 1 x DB15 (MULTI PORT) - 1 x RS422/RS485 - 1 x RS232 (TX/RX) - 1 x CAN 2.0B - 1 x 12VDC, 2A output (Vout, GND)
Power Management	Power input 9~48 VDC Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Support S3/S4 suspend mode 10~255 seconds WDT support, setup by software SDK (Windows/Linux) including utility and sample code
Operating System	Windows 10/Linux
Dimensions	260mm (W) x 196mm (D) x 66.5mm (H)
Weight	3.2kg
Environment	Operating temperatures: - -40°C to 70°C (w/ industrial SSD) with air flow Storage temperatures: -40°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration (random) - 2g@5~500 Hz (in operation, SSD) Vibration (SSD) - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test Shock (SSD) - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications	CE FCC Class A E13 mark

VTC 6222-C4S (P/N: 10V00622200X0)
Intel Atom® processor E3950 up to 2.0GHz CPU, 4GB DDR3L SO-DIMM, DC input 9~48 VDC, 1 x VGA, 2 x HDMI, 1 x LAN, 4 x PoE, 2 x RS232, 1 x RS422/485, 8 x GPIO, 1 x USB 3.0, 2 x USB 2.0
