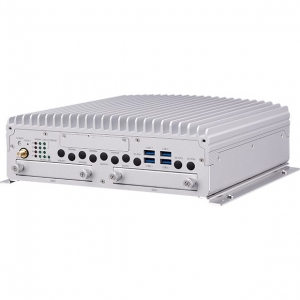

VTC 7251

Chipset Intel® UHD Graphics 630

1 x HDMI 1.4b up to 4096 x 2160 @ 30Hz

1 x VGA up to 1920 x 1200 @ 60Hz

2 x 2.5”SATA 3.0 external SSD (compatible with 15mm height), RAID 0/1 supported

2 x mSTAT 3.0 (BIOS selection)

1 x M.2 3042/3050/3052 (default) Key B socket (USB 2.0, USB 3.1) for LTE/5G NR module with dual SIM

1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module

1 x Full-size mini-PCIe socket (USB 2.0) for LTE with dual SIM
Optional M.2 3042 Key B (USB 2.0, USB 3.1) for LTE/5G NR module

1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])

1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0 & SATA 3.0 [BIOS selection])

1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou

Optional modules with dead reckoning available

TPM 2.0 by Infineon SLB9665TT2G Sensor (3-axis, 10-bit resolution)

13 x LED indicators (including 4 x programmable LED)

4 x USB 3.1 type A (5V/1A)

6 x Externally accessible SIM card sockets (4 x WWAN + 8 x SIM, BOM option)

1 x Reset button

1 x Power button with LED

2 x 2.5” external SSD1

1 x SMA antenna hole (GPS/WWAN/WLAN)

2 x RJ45 LAN port, 10/100/1000 Mbps

1 x 3-pin terminal block for 9V~36VDC

1 x Connector (4 x 2) for 12VDC/2A output, power button, 2 x MDI

1 x Mic-in, 2 x Line-out

2 x DB9 for full RS2321 x DB9 for full RS232/422/485 (RI, 5V/0.5A, 12V/0.5A)

1 x DB15
- 1 x Isolated CANBus 2.0B
- 1 x GPS DR (option)
- 4 x DI and 4 x DO

2 x USB 3.1 type A (5V/1A)

1 x HDMI 1.4b

1 x VGA

Power input 9~36VDC

Cranking voltage: 6V~9V (< 30 seconds)

Reverse protection, OCP & UVP

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Windows 10

Linux

Operating temperatures
- -30°C~70°C (w/ industrial SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation, SSD)

Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test

Shock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

CE approval

FCC Class A

E-Mark (E13)
