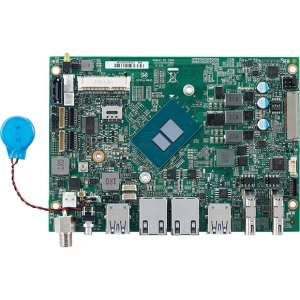

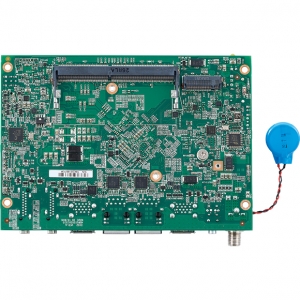

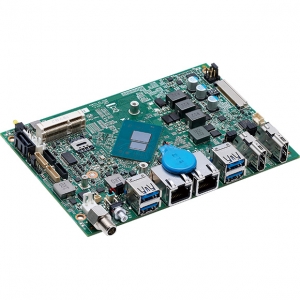

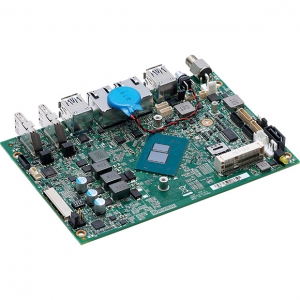

X102

3.5” Embedded Board, Intel® Alder Lake N Processors DDR4/2 x HDMI/4 x USB 3.2/mini-PCIe/M.2 Slot

Giá: Liên hệ

Tính năng chính:

Intel® Alder Lake N processors, Intel 7 process
1 x DDR4 SO-DIMM socket, max up to 16GB
Support 2 x HDMI 1.4b output, 4K@30Hz and 1 x eDP 1920 x 1080@60Hz (optional: LVDS select by Jumper)
TPM 2.0 onboard design for security technology
Richful I/O connectivity: 2 x 2.5GbE LAN, 4 x USB 3.2 Gen2
1 x M.2 2242 Key M for supporting PCIe & SATA storage device
1 x mini-PCIe slot support Wi-Fi and LTE module
Support power input 12 VDC

Báo giá sản phẩm

CPU Support	Intel® Alder Lake N processor, N50 (up to 3.4 GHz, 6W) Intel® Alder Lake N processor, N97 (up to 3.6 GHz, 12W)
Graphic & Display	Intel® UHD graphics 2 x HDMI 1.4b , resolution up to 3840 x 2160@30Hz 1 x eDP, resolution up to support up to 1920 x 1080@60Hz (optional : LVDS select by Jumper)
Main Memory	1 x 260-pin DDR4 SO-DIMM socket, up to 3200MHz with non-ECC, un-buffered memory up to 16GB
Onboard LAN	2 x RJ45 connector with Intel® i226-V, 2.5GbE LAN controllerSupport wake on LAN function
Audio	Realtek ALC888S
Storage	1 x M.2 2242 Key M storage for supporting SATA & PCIe signal 1 x 7P SATA connector and 1 x 2-pin for SATA power connector
Edge I/O Interface	2 x RJ45 connector with LEDs 2 x HDMI 1.4b output 4 x USB 3.2 Gen2 1 x Power button with LED 1 x DC-in Jack with lock 1 x Storage active LED
Onboard Internal I/O	COM1: RS232/422/485, 1 x 9-pin header COM2: RS232 only, 1 x 9-pin header (RI/5V//12V) 1 x 10-pin header for GPIO, 4 x GPI, 4 x GPO 1 x 10-pin debug connector 1 x 4-pin fan connector1 x 2-pin header for system reset button 2 x 6-pin header for 3x USB 2.0 port 1 x 4-pin DIP switch for resolution selection 1, 2 x 3-pin header for LVDS inverter connector 1 x 9-pin header for MIC-in and Line out 1 x 4-pin header for speaker out, 2W
Expansion	1 x mini-PCIe full-size connector with SIM slot (nano) onboard, support Wi-Fi 6/6E and LTE module
Environment	Operating temperature: 0°C to 60°C Storage temperature: -20°C to 80°C Relative humidity : 95% (non-condensing)
Dimensions	146mm (L) x 102mm (W) (5.7” x 4.0”)
Certification	CE (EN55035 + EN55032) FCC Class A (EMI part 15B)
Operating System	Win10 64-bit, Win 11 Linux 4.1 above

X102-N50 (P/N: 10W10X10203X0)
Embedded board with Intel^® Alder Lake N , N50 processor, 6W with 2 x HDMI 1.4b, 4 x USB 3.2, 2 x 2.5GbE LAN, 2 x COMs, 1 x eDP, 1 x M.2 Key M, 1 x mini-PCIe

X102-N97 (P/N: 10W10X10204X0)
Embedded board with Intel^® Alder Lake N , N97 processor, 12W with 2 x HDMI 1.4b, 4 x USB 3.2, 2 x 2.5GbE LAN, 2 x COMs, 1 x eDP, 1 x M.2 Key M, 1 x mini-PCIe
