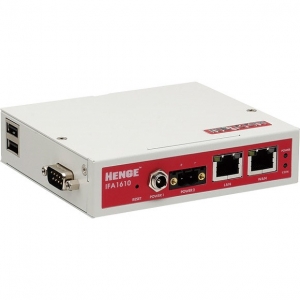

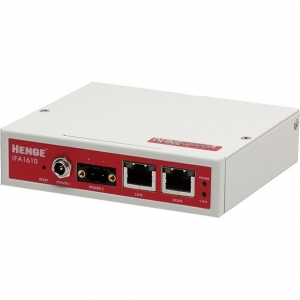

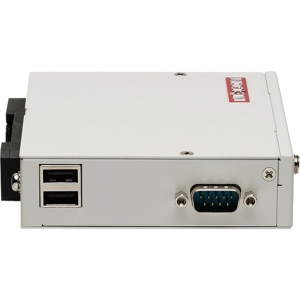

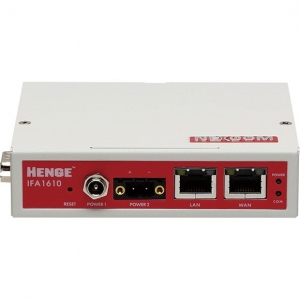

IFA 1610

CoreFort™ Industry Firewall, 2 ports VPN Router

Giá: Liên hệ

Tính năng chính:

Stateful (L4) packet firewall
Intrusion prevention(IPS)
SSL VPN secure remote access
Serial gateway (RS485)
Operating temperature range, 0°C (32°F) up to 60°C (140°F)
Compact palm size

Báo giá sản phẩm

Datasheet (PDF)

The CoreFort™ industry firewall series is a fully integrated industry 2 ports firewall router with VPN function. The fully equipped, broadband-capable firewall router offers a stateful packet inspection firewall, denial-of-service(DoS)/distributed denial-of-service(DDoS) protection and intrusion prevention, portscan detection, and real-time alerts. It gives additional protection for machinery and equipment installed on the secure side of the firewall. Equipped with SSL VPN functions, the CoreFort™ industry firewall provides a remote access infrastructure to secure connections, and helps machine builder/system integrator to design easily maintained systems. Furthermore, its full industrial design is ideal for industrial environment applications.

Pairing VPN capabilities, the CoreFort™ industry firewall series is an ideal endpoint connectivity and security solution for industrial automation, process control, energy and medical instrument remote management application.

Network Security	Stateful Packet Firewall Intrusion detection/Prevention Multiple Public IPs NMP support (V1/V2/V3) VoIP/SIP support Portscan Detection DoS and DDoS Protection SYN/ICMP Flood Protection DNS Proxy/Routing
WAN	Supports Uplinks/WANs: Ethernet (Static/DHCP), PPPoE
Traffic Shaping	Bandwidth Management
User Authentication	Active Directory /NTLMLDAP Local
Network Address Translation	Destination NATIncoming Routed TrafficOne-to-One NATSource NAT (SNAT)IPSec NAT Traversal
Bridging	Firewall Stealth ModeOSI-layer 2 firewall-function Spanning treeUnlimited bridges Unlimited interfaces per bridge
VPN (Virtual Private Network)	IPsec - Encryption: 3DES, AES 128/256-bit,MD5, SHA1 - Diffie Hellman (2, 5, 14, 15, 16,17,18) - Authentication: Pre-Shared Key, RSA Keys X.509-certificates IKEv1, L2TP - DPD (Dead Peer Detection) - NAT-Taversal - Compression - PFS (Perfect Forward Secrecy) - VPN: site-to-site - VPN: client-to-site (road warrior) - Integrated Certificate AuthorityTrue SSL/TLS VPN (OpenVPN) - Encryption: DES, 3DES, AES 128/192/256-bit, CAST5, Blowfish - Authentication: Pre-Shared Key, X.509-certificates, Certification Authority, and Local - Support for VPN over HTTPS Proxy (OpenVPN) - PPTP Passthrough - VPN: site-to-site - VPN: client-to-site (road warrior) - VPN Client for Microsoft Windows, Mac OS X and Linux - Multiple logins per user
Services	Event notification & handling NTP (Network Time Protocol) DHCP Server SNMP Server Dyn DNS
Logs and Reports	Customizable Real-time DashboardLive Log Viewer (AJAX-based) Detailed User-Based Web Access ReportNetwork/System/Performance StatisticsRule-based logging settings (Firewall Rules)Syslog: Local or RemoteopenTSA trusted time stamping
Management	Easy Web-based Administration (SSL)Secure Remote SSH/SCP AccessCentralized Management (via SSL)
Updates and Backup	Centralized updates through CoreFort™ network Scheduled backup Encrypted backups via e-mailInstant recovery/backup to USB stick
Hardware Specification	1 x 10/100/1000 Base-T Ethernet WAN1 x 10/100/1000 Base-T Ethernet LAN 2 x USBRS232/422/485microSD 4GB
Physical and Power	DIN rail/wall mount (optional)/desktopFanless Dimension(H x W x D): 110 x 25.4 x 100mm Weight(G.W. Kg):0.51 Kg IP30DC Jack/terminal block ,24V DC
Environmental Specification	Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F) Humidity: 10% ~ 90%, non-condensing
Certification	Safety: UL 508FCC/CE/RoHS
Package Content	IFA1610 x 1QIG x 1 Power Input 5.08mm Terminal Block x 1

IFA 1610 (P/N: 10IF0161000X0)
Industry firewall 2 ports VPN router (3 years service & maintenance)

Manual
Date	Description	Version	OS	Download
2015-08-26	Quick Reference Guide		Windows
2016-02-25	User Manual		Windows
