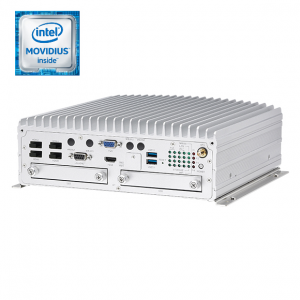

ATC 8010-7B

CPU

Intel® Core™ 8th Gen. i7-8700T processors, 2.4GHz, 35W, 6 core

Chipset

Intel® Q370 platform controller hub

Memory

2-Channel 204-pin DDR4 SO-DMIM sockets up to 32GB/channel

(64GB for two channels), default 4GB + 4GB industrial grade memory

VPU(AIBooster-X8-MXM MXM Module)

Eight Intel® Movidius™ Myriad™ X MA2485 VPUPer MA2485 VPU
- Up to 1 TOPS
- 16 programmable 128-bit VLIW vector processors
- CPUs 2 x LEON 4 cores (RISC; SPARC V8)
- On-chip accelerators 20+ image/vision processing accelerator
- Neural compute engine (DNN accelerator)
- Neural network capability neural compute engine

Storage

2 x 2.5” SATA 3.0 external SSD
2 x mSATA

Expansion

1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0)

1 x Full size mini-PCIe socket (USB 2.0), optional M.2 key B (3042)

1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0, SATA 3.0 (option))

1 x M.2 key B 3042, (USB 2.0, USB 3.1)

GNSS and On-board Sensor

1 x Default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou.

Optional modules with dead reckoning available

Built-in G SensorTPM 2.0 (Option)

Watchdog timer: Programmable 1~255 sec

Power over Ethernet

8-Port LAN, independent I210-IT 10/100/1000 Mbps, PoE 802.3af/at, max. 60W

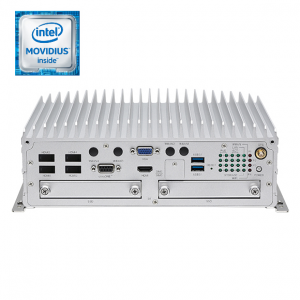

I/O Interface-Front

24 x LED indicators (including 4 x programmable LED)

1 x HDMI 1.4b Intel CPU (max resolution: 4096 x 2160 at 30Hz)

1 x VGA (max resolution: 1920 x 1200@60Hz)

1 x ultraONE+ for 10M video + audio output + 24VDC output

2 x USB 3.1 type A (5V/1A)

2 x Externally accessible SIM sockets, 1 x internal SIM socket

2 x 2.5” removable SSD tray

1 x Reset button

1 x Power button

5 x SMA antenna

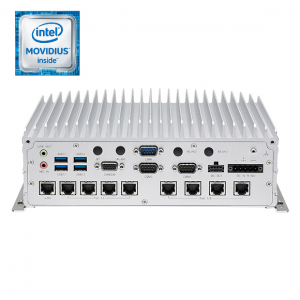

I/O Interface-Rear

Power Management

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode

Operating System

Windows 10/Linux/YOCTO (by request)

Dimensions

260 x 256 x 90.1 (W x D x H) (mm)

Weight

6.3kg

Environment

Operating temperatures: -30°C~60°C (w/ industrail SSD) with air flow

Storage temperatures: -40°C~80°C

Relative humidity: 90% (non-condensing)

Vibration (random)
- 2g@5~500 Hz (in operation, SSD)Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Certifications

CE approval, FCC Class A, E13 mark
