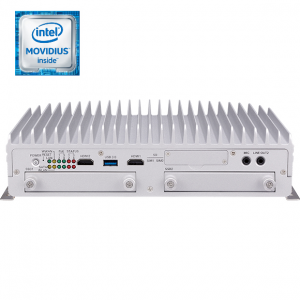

VTC 6222-IMIoT

CPU

Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core

Memory

Myriad-X mPCIe Deep Learning Accelerator Module

1 or 2 Myriad™ X MA2485 VPUPer VPU with
- Up to 1 TOPS
- 16 programmable 128-bit VLIW vector processors
- CPUs 2 x LEON 4 cores (RISC; SPARC V8)
- On-chip accelerators 20+ image/vision processing accelerator
- Neural compute engine (DNN accelerator)
- Neural network capability neural compute engine

Operating voltage: 3.3V +/- 10 %

Dimensions: 51mm x 30mm x 2.5 mm

Video Output

Chipset Intel® HD graphics 505

2 x HDMI 1.4b up to 4096 x 2160 @30Hz

1 x VGA up to 1920 x 1200 @60Hz

Storage

2 x 2.5" SSD/HDD SATA 3.0 (compatible with 15mm drive)

1 x SD memory card 3.0 (externally accessible)

1 x USB EDC for USB DOM

Expansion

1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 Key B (USB2.0 + USB 3.0) with 2 x external SIM

1 x Full size mini-PCIe socket (USB 2.0 + PCIe 2.0)

1 x Half size mini-PCIe socket (USB 2.0 + PCIe 2.0)

GNSS and On Board Sensor

1 x Default U-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/Beidou

G Sensor (3-axis, 10-bit resolution)

TPM 2.0 (optional)

LAN and Power over Ethernet

4-Port LAN, 10/100/1000 Mbps I210-IT GbE, PoE 802.3af/at, max. 60W

1-Port LAN, 10/100/1000 Mbps I210-IT GbE

I/O Interface-Front

12 x LED indicators (including 3 x programmable LED)

2 x Externally accessible SIM card socket with cover

2 x 2.5" removable SSD tray

1 x Externally accessible SD card socket with cover

1 x Reset button

1 x Power button

1 x USB 3.0 type A (5V/0.9A)

2 x HDMI 1.4b

1 x Mic-in, 1 x Line-out

I/O Interface-Rear

Power Management

Power input 9~48 VDC

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/off delay time by software

Support S3/S4 suspend mode

10~255 seconds WDT support, setup by software

SDK (Windows/Linux) including utility and sample code

Operating System

Windows 10/Linux

Dimensions

260mm (W) x 196mm (D) x 66.5mm (H)

Weight

3.2kg

Environment

Operating temperatures: -20°C~60°C (w/ Google Edge TPU & industrial SSD) with air flow

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)Vibration (SSD)
- Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock (SSD)
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g

Standards/Certifications

CE

FCC Class A

E13 mark
