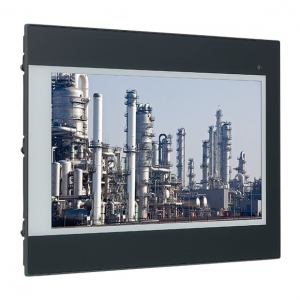

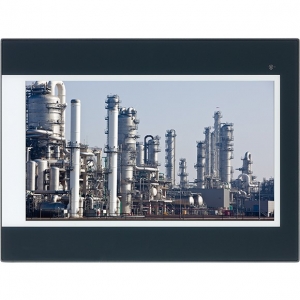

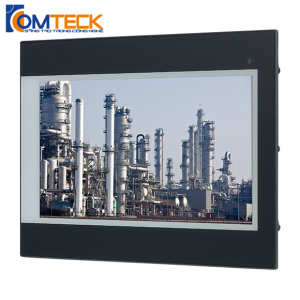

Panel PC công nghiệp IPPC 2170P

Panel

LCD size: 21.5", 16:9

Resolution: Full HD, 1920 x 1080

Luminance: 300cd/m²

Contrast ratio: 5000

LCD color: 16.7M

Viewing angle: 89(U), 89(D), 89(L), 89(R)

Backlight: LED

Touch (for IPPC 2170P Series)

Ten points P-Cap (projected capacitive touch)

Light transmission: 87%

Interface: USB

Anti-scratch surface: >= 7H hardness

System

CPU (optional): support 4th gen. Intel® Core™ I processor family, LGA1150 socket type
- Core™ i5-4590T, Quad-Core, 2.0GHz, 6M Cache (maximum frequency 3.0GHz if turbo boost enabled)
- Core™ i5-4570TE, Dual-Core, 2.7GHz, 4M Cache (maximum frequency3.3GHz if turbo boost enabled)
- Core™ i3-4350T, Dual-Core, 3.1GHz, 4M Cache (no turbo boost)
- Core™ i3-4340TE, Dual, Core, 2.6GHz, 4M Cache (no turbo boost)
- Pentium® G3320TE, Dual-Core, 2.3GHz, 3M Cache (no turbo boost)
- Celeron® G1820TE, Dual-Core, 2.2GHz, 2M Cache (no turbo boost)

BIOS: AMI BIOS

System Chipset: Intel® Q87 PCH

System memory (optional): 2 x 204-pin DDR3/DDR3L SO-DIMM socket, support up to 16GB DDR3/DDR3L 1333/1600, non-ECC and unbuffered

Storage device:
- 1 x External locked CFast socket
- 1 x mini-PCIe w/o SIM cardholder slot to support mSATA storage
- 1 x Hard drive bay: support 1 x 2.5" SATA HDD/SSD (optional)

Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)

H/W status monitor: monitoring system temperature and voltage

Expansion:
- 2 x mini-PCIe sockets (support optional Wi-Fi or 3.5G module/NVRAM/mSATA storage)
- 2 x Expansion slots for add-on PCI or/and PCIe cards (optional)
  1 x PCI and 1 x PCIex4 slots
  2 x PCIex4 slots
  2 x PCI slots
  1 x PCIex16 slot

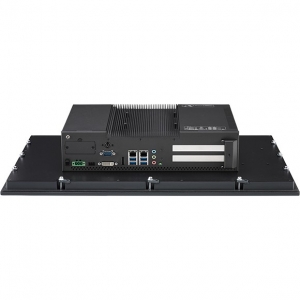

Rear I/O

1 x PS2 for keyboard/mouse

Ethernet: 2 x RJ45

2nd/3rd display: additional independent DisplayPort: 1 x DVI-I (DVI-D + DVI-A) and 1 x DisplayPort

Audio port: 1 x Line-out; 1 x Line-in; 1 x MIic-in

USB: 4 x USB3.03-pin remote power on/off switch connector

Reset button

COM#1: RS232/422/485 w/ 5V or 12V selection

ATX power switch

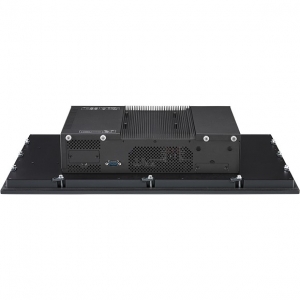

Top I/O

COM#2 RS232/422/485 w/ 5V or 12V selection

Audio

HD codec: Realtek ALC886-GR

Audio interface: Line-out/Line-in/Mic-in audio jack

Mechanical & Environment

LAN chip: dual Intel® I210IT Gigabit LAN

Ethernet interface: 10/100/1000 Base-Tx Ethernet compatible

Fieldbus

Support up to two Fieldbus module

Mechanical & Environment

Color: Pantone 432CRAL 70 24 front bezel

IP protection: IP66 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

Power:
- Power input: 12~30 VDC
- Power connector: 3-pin PHOENIX connector

Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)

Shock:
- IEC 68 2-27
- HDD: 20G @ wall mount, half sine, 11ms

Operating temperature:
- -10°C to 50°C
- Storage temperature: -20°C to 75°C
- Operating humidity: 10%~90% relative humidity, non-condensing

Dimension

562.4 x 382.4 x 105.05mm

Weight: (barebone): 11.7kg

Certifications

CE (including EN61000-6-2/EN61000-6-4),

FCC Class A

OS Support Lists

Windows 7 32-bit and 64-bit

Windows 10 32-bit and 64-bit
