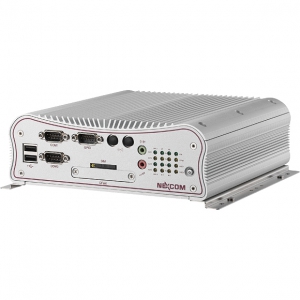

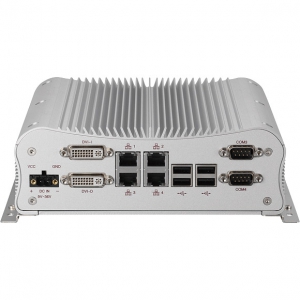

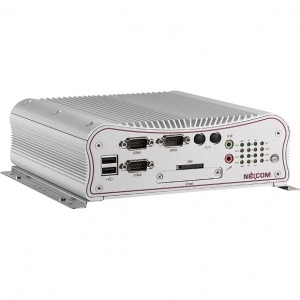

NISE2300 (EOL)

Intel® Atom™ Dual Core D2550 1.86 GHz Fanless System with 4x LAN ports, 6x USB 2.0 and 4x COM ports

Giá: Liên hệ

Tính năng chính:

On-board Intel® Atom™ Dual Core D2550 processor 1.86 GHz
Intel® 82801JIR ICH10 RAID
1x DVI-I & 1x DVI-D display output
4x Intel® 82574IT GbE LAN ports
4x RS232/422/485
4x GPI & 4x GPO
6x USB2.0; 1x external CFast socket; 1x SIM card socket
1x internal Mini-PCIe with two antenna holes
Support +9V to 36VDC input; Support ATX power mode

Báo giá sản phẩm

Powered by Intel® Atom™ Dual Core D2550 Processor, NISE 2300 series is another utilized within industrial automation. It is designed with wide operating temperature and can be operated in rough environment. NISE 2300 series follows NISE guideline with fanless and cables-less concept. NISE 2300 series designed with 4 x LAN ports; Support WoL and LAN teaming and PXE functions. Other than above, NISE 2300 series also provide 6 x USB 2.0, dual independent display and super graphic performance for variety needs. NISE 2300 series support a wide range DC input +9V to 36V enhances its reliability in different power condition in any demand.

CPU Support	On-board Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cacheIntel® 82801JIR ICH10 RAID
Main Memory	2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECCPre-install 4G Industrial Grade Memory as the manufacture configuration for shipment
Dual Independent Display Option	DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, DVI-I to VGA male type)DVI-D + DVI-D
I/O Interface-Front	ATX Power on/off switchHDD access/ power status LEDs2x DB9, RS232/422/485 w/ 2.5KV isolation protection2x USB2.04x GPO & 4x GPI1x Mic-in and 1x Line-outSIM card socketCFast socket2x antenna holes
I/O Interface-Rear	1x 2-pin DC input, Support 9-36V DC input1x DVI-I1x DVI-D4x Intel® 82574IT GbE LAN ports4x USB2.02x RS-232/422/485
Device	1x 2.5” SATA HDD driver bay1x External CFast socket1x External SIM card socket1x Internal mini-PCIe socket (Support optional WiFi or 3.5G wireless module, jumper free)
Power Requirements	Support +9V to 36VDC input; Support ATX power mode
Dimensions	195mm (W) x 200mm (D) x 65mm (H) (7.7” x 7.9” x 2.6”)
Construction	Aluminum Chassis with fanless design
Environment	Operating temperature: Ambient with air flow: -20°C to 65°C with industrial grade deviceStorage temperature: -30°C to 85°CRelative humidity: 10% to 93% (Non-condensing)Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 40G, half sine, 11ms, IEC60068-2-27Vibration protection w/HDD Condition - Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
Certifications	CE approvalFCC Class A
OS Support List	Windows XP 32bitsWindows 7 32bitsWinCE 7.0

Barebone

NISE2300 (P/N: 10J00230000X0)
Intel® Atom™ Dual Core D2550 fanless system with 4G DDR3 memory

19V 65W AC/DC power adapter w/o power cord (P/N: 7400065009X00)

Driver
Date	Description	Version	OS	Download
2016-05-11	Audio		Windows	104.58MB
2016-05-11	Chipset		Windows	2.68MB
2016-05-11	COM Port		Windows	0.31MB
2016-05-11	Graphic		Windows	17.01MB
2016-05-11	LAN		Windows	27.06MB

Manual
Date	Description	Version	OS	Download
2012-10-25	Quick Reference Guide		Windows	1.33MB
2014-01-06	User Manual		Windows	9.32MB
