nROK 1020

Intel Atom® x5-E3930 processor Fanless Railway Computer with EN50155 Conformity

Giá: Liên hệ

Tính năng chính:

Compact and fanless design
Built-in GPS receiver with optional dead reckoning function
Variety of wireless communication options
Smart power management with Ignition on/off delay via software control and low voltage protection
Wide range DC input 9~36V
EN50155 Class TX conformity
Compliance to EN45545-2
5 x RS232 and 2 x RS485

Báo giá sản phẩm

Datasheet (PDF)

nROK 1020, a compact, rugged and entry-level railway computer with Intel Atom® x5-E3930 processor dual-core 1.8GHz, is designed for the harsh railway-related applications. Because of the compact design, it is easy to be located without compromising its features.

Adopting lock concept, LAN, Power-in and Audio, are all designed against vibration and shock impact. An advanced GPS receiver supports GPS/Gloness/QZSS/Galileo/Beidou and an optional dead reckoning module is also available. Thanks to 2 mini-PCIe socket, nROK 1020 is perfectly suited for wireless applications, such as WLAN and WWAN data and voice transmission. With external SIM socket, it allows users to access SIM card conveniently. 12VDC output can be provided for external display with an easy power wire arrangement. nROK 1020 is very suitable for Passenger Information System, Automatic Fare Collections and digital radio data/voice transmission applications.

CPU	Intel Atom® x5-E3930 dual-core 1.8GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1867MHz up to 8GB. Default 4GB
Expansion	1 x mini-PCIe socket (USB)1 x mini-PCIe socket (PCIe + USB + mSATA)
Function	1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Dead ReckoningBuilt-in G-sensor Built-in TPM

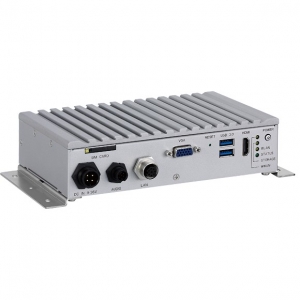

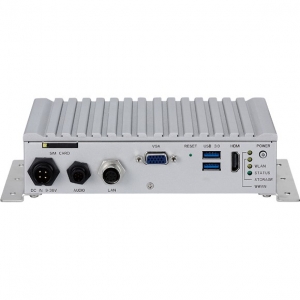

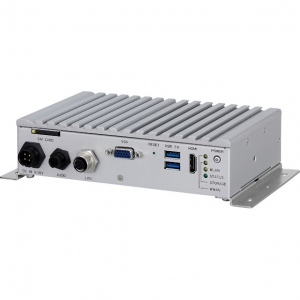

I/O Interface-Front	1 x power button 4 x LED indicators for Status (programmable), Storage, WLAN and WWAN 1 x System reset button 2 x type A USB 3.0 compliant host, supporting system boot up 1 x DB-15 VGA 1 x HDMI 1x external SIM card socket 1 x circular connector for 9~36VDC input with ignition and 20W typical power consumption 1 x circular connector for Audio-In and Audio-Out 1 x M12 connector for 10/100/1000Mbps Ethernet

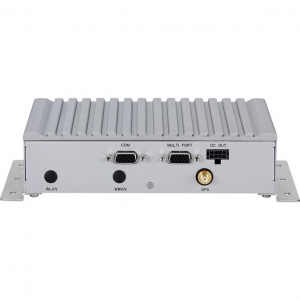

I/O Interface-Rear	1 x 12V/2A DC output, SMBus, power button 1 x DB15 COM port for 4 x RS232 Tx/Rx and 2 x RS485 1 x DB15 for multi-port - 1 x CAN2.0 - 1 x RS232 Tx/Rx - 1 x odometer and direction for optional DR - 5 x programmable DIO Input voltage (internal type): 5VDC TTL (default) Input voltage (source type): 3~24VDC Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3~24VDC3 x Antenna hole for SMA-type antenna (WWAN/WLAN/GPS)
Expandable Storage	1 x 2.5” SSD SATA 3.01 x mSATA
Operating System	Windows 10Linux
Power Management	Power input 9~36VDC w/o isolation Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self-configuration Power on/off ignition, software detectable Support S3, S4 suspend mode
Dimensions	185mm (W) x 120mm (D) x 45mm (H) (7.3" x 4.7" x 1.8") 1 kg (2.20 lbs)
Construction	Aluminum top case with sheet metal
Environment	Operating temperatures: EN 50155, class TX -40 ~ 70°C, 85°C for 10 minutes (w/ industrial SSD) with airflow Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration: Vibration (random): 2g @5~500 Hz Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g
Standards/Certifications	CE approval FCC Class AEN 50155 Ambient temperature EN 50155, class TX -40 ~ 70°C, 85°C for 10 minutes Shock and vibration IEC 61373 class B Interruptions of voltage supply class S1, S2 Supply change over class C1, C2 EMC EN 50121-3-2

nROK 1020-A (P/N: 10V00102002X0)
Intel Atom® x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox GPS module, GPS antenna, EN50155 Class TX (24VDC w/o isolation)

Certification
Date	Description	Version	OS	Download
2019-08-21	CE		Windows
2019-08-21	EN50155		Windows
2019-08-21	FCC		Windows

Driver
Date	Description	Version	OS	Download
2017-02-02	4G Module –MC7304		Windows
2019-02-23	Audio		Windows
2019-08-21	CAN SDK		Windows
2019-02-23	Chipset		Windows
2019-02-23	FT4232H		Windows
2019-02-23	Graphics		Windows
2019-02-23	LAN		Windows
2019-08-21	MCU Update SDK		Windows
2019-08-21	SDK		Windows
2019-02-23	Serial I/O		Windows
2019-02-23	TXE		Windows

Manual
Date	Description	Version	OS	Download
2017-07-03	User Manual (Datasheet Only)
