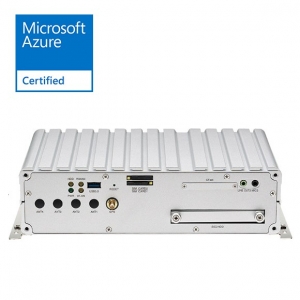

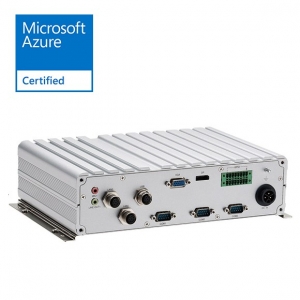

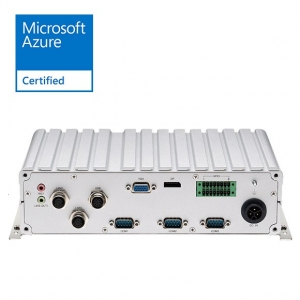

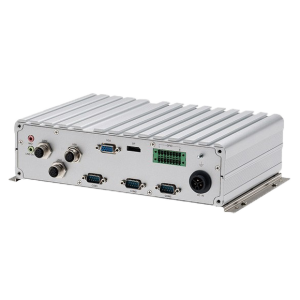

VTC 6210-R

1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)

1 x CFast (externally accessible)

1 x Full-size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

1 x Full size mini-PCIe socket (USB 2.0 + PCIe)

4 x LED for power, storage, WWAN, WLAN

2 x Externally accessible SIM card socket (selectable)

1 x Phone jack 3.5mm for 1 x Mic-in

1 x Phone jack 3.5mm for 1 x Line-out

1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray

1 x Externally accessible CFast card socket with cover

1 x Reset button

1 x Type A USB 3.0 compliant host, supporting system boot up

4 x Antenna hole for WWAN/WLAN/BT

1 x Antenna hole for GPS

1 x Circle Type DC Input 9~60VDC with ignition and typical 19W power consumption
- 24VDC (16.8~31.2V), non-isolation
- 36VDC (25.2~46.8V), non-isolation
- 110VDC (77~143V), w/ 3KVDC isolation

1 x M12 with two USB 2.0 compliant host, supporting system boot up

2 x M12 10/100/1000 Ethernet

1 x Phone jack 3.5mm for 1 x Mic-in

1 x Phone jack 3.5mm for 1 x Line-out

1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz

1 x DP port, resolution up to 2560 x 1600 @60H2 x DB-9 RS-232 (isolation)

1 x DB-9 RS-422/485 (isolation)

1 x 16-pin terminal block
- 1 x CAN Bus 2.0B (onboard)
- 4 x DI, 4 x DO with isolation
Input Voltage (internal type): 5VDC TTL (default)
Input Voltage (source type): 3~12VDC (Programmable Digital output or optional isolation)
Digital output (sink type): 5VDC TTL (default), max current: 20mA
Digital output (source type): 3~19VDC, max current: 150mA

Ignition On/Off control

Programmable On/Off delay timer

System wakeup event
Ignition switch
RTC timer ALARM interrupt
Cellular MODEM wakeup signal

System wake up condition
Wake up event is triggered, and the DC input voltage is greater than the UVP threshold
Timer delay is only applicable for Ignition on
System power down condition
Soft off, or Ignition off
Timer delay is only applicable for Ignition off

Windows 8, WES8

Window 7, WES7

Linux kernel 3.X

260mm (W) x 176mm (D) x 70mm (H) (10.24" x 6.93" x 2.75")

Weight: 2.5kg

Operating temperatures:
-40°C to 70°C (w/ industrial SSD) with airflow
-20°C to 50°C (w/ commercial HDD) with airflow

Storage temperatures: -40°C to 85°C

Relative humidity: 10% to 90% (non-condensing)

Shock (SSD/HDD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
