XPPC 10-100-Ag+ (EOL)

10.1” TFT WXGA 16:10 Slim Bezel, Multi Touchscreen Computer Powered by Intel® Apollo Lake J3455 Processor

Giá: Liên hệ

Tính năng chính:

10.1” TFT WXGA 16:10 panel
10-point PCAP multi-touch with slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel® Celeron® processor J3455, Quad Core, 1.50 GHz
1 x DDR3L up to 8GB, M.2 M-key 2242 for storage device
Support power input 19 VDC
Antimicrobial Corning® Gorilla® Glass

Báo giá sản phẩm

Datasheet (PDF)

NEXCOM is making one of the everyday objects that we ener more hygienic and safe. Touch screens are increasingly ubiquitous across transportation and retail sectors, Where we’ve thoughtfully enhanced our own XPPC touchscreen computers with antimicrobial Corning^® Gorilla^® Glass. Customers are sure to worry less about contacting bacteria while businesses increase efficiency, All contributing to a more stress-free society. The 10.1“ fanless touch computer XPPC 10-100 incorporating an industrial motherboard is intended for versatile industrial applications. XPPC 10-100 has a touch screen LED backlight LCD panel with 1280 x 800 (WXGA) resolution and 400-nit brightness.

Panel	LCD size: AUO G-series 10.1”, 16:10 Resolution: WXGA 1280 x 800 Luminance - LCD panel: 400cd/m2 - XPPC PCAP touch: 360cd/m2 Contrast ratio: 800 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R) Backlight: LED
Touch Screen	Antimicrobial Corning® Gorilla® Glass Delivers intrinsic and long-lasting antimicrobial efficacy, with EPA registration and compatibility with an easy-to-clean technology Maintains the durability and scratch resistance of Corning® Gorilla® Glass 3 Maintains the exceptional surface quality and optical clarity of Corning® Gorilla® Glass 310-point PCAP (projected capacitive touch) Optical bonding
System	CPU: onboard Intel® Celeron® processor J3455, 1.50GHz, 2M cache Graphic: Intel® HD Graphics
Main Memory	1 x SO-DIMM socket supprt up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device	1 x M.2 2242 Key M SSD (support SATA 3.0)
Expansion	1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, support Wi-Fi/LTE module

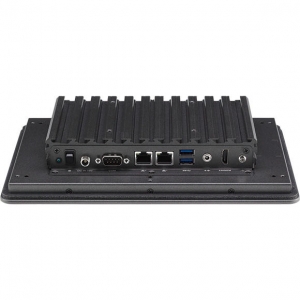

Rear I/O	LED for power on/off Power switch 19V DC-in power jack lock type 2 x RJ45 with LEDs for Gigabit LAN 1 x HDMI 2.0, resolution 4096 x 2160 60Hz 2 x USB 3.0 1 x Line-out COM 1: RS232/422/485
Front I/O	2 x Antenna hole
Mechanical	Color/materia: black silver/metal sheet Support - VESA mount 75mm x 75mm - Panel mount - Open frame
Environment	Vibration - IEC 60068-2-64 - 2Grms @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock - IEC 60068-2-27 - 20g peak acceleration (11 msec. duration) Temperature - Operating temperature: 0°C~50°C - Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions	System: 260.3mm x 178.3mm x 44.65mm System weight: 2 kg Package: 335mm x 302mm x 160mm Package weight: 3 kg
Power Supply	1 x External 45W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+19VDC
Certifications	CE (EN55035 + EN55032) FCC Class A (EMI part 15B) LVD (EN62368-1)
OS Support Lists	Windows 10 64-bit Linux 4.1

Barebone

XPPC 10-100-Ag (P/N: 10W30XPPC06X0)
10.1” WXGA antimicrobial Ag+ touchscreen computer powered by Intel^® Celeron^® J3455

Panel mount kit (P/N: 88W30XPPC02X0)

Open frame kit (P/N: 88W30XPPC03X0)

Driver
Date	Description	Version	OS	Download
2020-11-10	Audio		Windows
2020-11-10	Chipset		Windows
2020-11-10	Ethernet		Windows
2020-11-10	Graphic		Windows
2020-11-10	SIO		Windows
2020-11-10	TXE		Windows

Manual
Date	Description	Version	OS	Download
2020-11-09	Quick Reference Guide		Windows
