XPPC 22-100

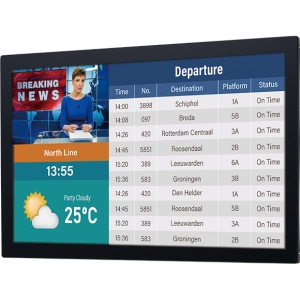

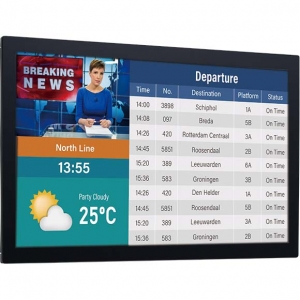

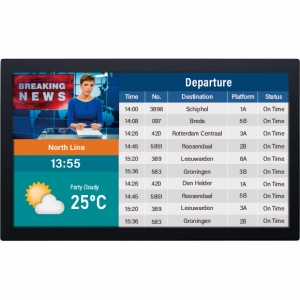

21.5” TFT FHD 16:9 Slim Bezel, Multi Touchscreen Computer Powered by Intel® Apollo Lake J3455 Processor

Giá: Liên hệ

Tính năng chính:

21.5” TFT FHD 16:9 panel
10 Points P-Cap multi-touch with slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe Mount
Intel® Celeron® processor J3455, quad core, 1.50 GHz
1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
Support power input 19 VDC

Báo giá sản phẩm

Datasheet (PDF)

The 21.5“ fanless touchscreen computer XPPC 22-100 incorporating an industrial motherboard is intended for versatile industrial applications. XPPC 22-100 has a touch screen LED backlight LCD panel with 1920 x 1080 (FHD) resolution and 250 nits brightness. The front panel which adopts flush design and complies with IP65 standard by panel mount makes it the perfect fit in industrial applications. XPPC 22-100 powered by Intel^® Celeron^® processor and support DDR3L up to 8GB. XPPC 22-100 has slim design and weight optimization. XPPC 22-100 support multi-mounting choice based on different application. XPPC 22-100 can be applied in different situations. For example: hotel self-check in system, department store, welcome board and advertisement.

Panel	LCD size: BOE 21.5”, 16:9 Resolution: FHD 1920 x 1080 Luminance - LCD panel: 250cd/m2 - XPPC PCAP touch: 225cd/m2 Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 89(R), 89(L), 89(U), 89(D)
Touch Screen	10 points P-Cap (projected capacitive touch) Glass surface treatment: AS (Anti-Smudge Coating for easy cleaning)
System	CPU: onboard Intel® Celeron® processor J3455, 1.50GHz, 2M cache Graphic: Intel® HD graphics
Main Memory	1 x SO-DIMM socket support up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device	1 x M.2 2242 Key M SSD (support SATA 3.0)
Expansion	1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, support Wi-Fi/LTE module

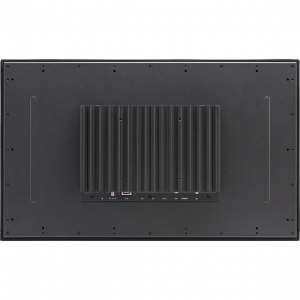

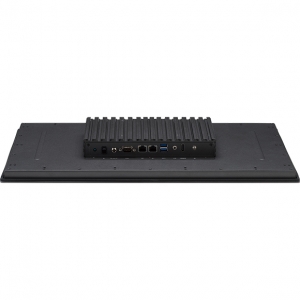

Rear I/O	LED for power on/off Power switch19V DC-in power jack lock type 2 x RJ45 with LEDs for Gigabit LAN 1 x HDMI 2.0, resolution 4096 x 2160 60Hz 2 x USB 3.01 x Line-out COM 1: RS232/422/485
Front I/O	2 x Antenna hole
Mechanical & Environment	Color/material: black silver/metal sheet Support - VESA mount 100mm x 100mm - Panel mount - Open frame
Environment	Vibration - IEC 60068-2-64 - 2Grms @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock - IEC 60068-2-27 - 50g peak acceleration (11 msec. duration) Temperature - Operating temperature: 0°C~45°C (optional to 50°C) - Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions	System: 520.6mm x 315.6mm x 54mm System weight: 5kg Package: 650mm x 480mm x 170mm Package weight: 7.5kg
Power Supply	1 x External 90W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+19VD
Certifications	CE (EN55035 + EN55032) FCC Class A (EMI Part 15B) LVD (EN62368-1)
OS Support Lists	Win10 64-bit Linux 4.1

Barebone

XPPC 22-100 (P/N: 10W30XPPC10X0)
21.5” FHD LED multi touchscreen computer, Intel^® Celeron^® J3455

Panel mount kit (P/N: 88W30XPPC07X0)

Open frame kit (P/N: 88W30XPPC08X0)

Thermal kit (P/N: 88W30XPPC09X0)

Driver
Date	Description	Version	OS	Download
2021-12-08	Audio		Windows
2021-12-08	Chipset		Windows
2021-12-08	Ethernet		Windows
2021-12-08	Graphics		Windows
2021-12-08	Serial-IO		Windows
2021-12-08	TXE		Windows

Manual
Date	Description	Version	OS	Download
2021-12-08	Quick Reference Guide		Windows	1.09MB
2021-12-27	User Manual		Windows	3.79MB
