XPPC 16-101

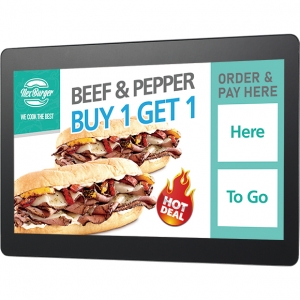

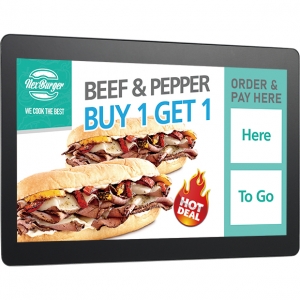

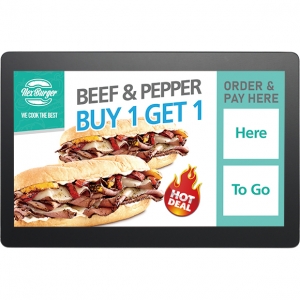

15.6” TFT FHD 16:9 Slim Bezel, Multi Touchscreen Computer Powered by Intel® Celeron® Processor J3455

Giá: Liên hệ

Tính năng chính:

15.6” TFT FHD 16:9 Panel
10 points P-Cap multi-touch with slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel^® Celeron^® processor J3455, 1.50GHz, 2M cache
1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
Support power input 19 VDC

Báo giá sản phẩm

Datasheet (PDF)

The 15.6“ fanless panel PC XPPC 16-101 incorporating an industrial motherboard is intended for versatile industrial applications. XPPC 16-101 has a touch screen LED backlight LCD panel with 1920 x 1080 (FHD) resolution and 450 nits brightness. The front panel which adopts flush design and complies with IP65 standard by panel mount makes it the perfect fit in industrial applications. XPPC 16-101 powered by Intel^® Celeron^® processor and support DDR3L up to 8GB. XPPC 16-101 has slim design and weight optimization. XPPC 16-101 support multi-mounting choice based on different application. XPPC 16-101 can be applied in different situations. For example: hotel self-check in system, department store, welcome board and advertisement.

Panel	LCD size: Innolux G-series 15.6”, 16:9 Resolution: Full HD 1920 x 1080 Luminance - LCD panel: 450cd/m2 - XPPC PCAP touch: 405cd/m2 Contrast ratio: 700 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen	10 points multi-touch P-Cap (projected capacitive touch) Optical bonding with LCD panel Glass surface treatment: AS
System	CPU: Intel^® Celeron^® processor J3455, 1.50GHz, 2M cache Graphic: Intel^® HD Graphics 500
Main Memory	1 x SO-DIMM socket support up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device	1 x M.2 2242 Key M SSD (support SATA 3.0)
Expansion	1 x mini-PCIe full-size connector with SIM slot (full-size) onboard, support Wi-Fi/LTE module

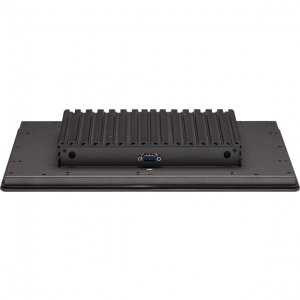

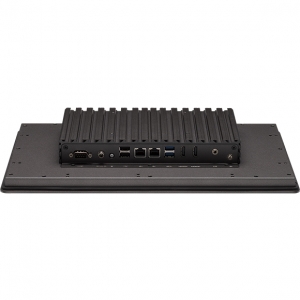

Rear I/O	Power button with LED19V DC-in power Jack lock type 2 x RJ45 with LEDs for Gigabit LAN 2 x HDMI 1.4, resolution 3840 x 2160 30Hz 2 x USB 3.0 2 x USB 2.0 1 x Line out 1 x Serial port - COM1: RS232/422/485
Front I/O	2 x Antenna hole1 x Serial port - COM2: RS232 (RI/5V/12V) (optional)
Mechanical & Environment	Color/material: black silver/metal sheet Support - VESA mount 100mm x 100mm - Panel mount - Open frame
Environment	Vibration - IEC 60068-2-64 - 2Grms @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating) Shock - IEC 60068-2-27 - 50g peak acceleration (11 msec. duration) Temperature - Operating temperature: 0°C~50°C - Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions	System: 382.2mm x 251.4mm x 51.79mm System weight: 3.0 kg Package: 476mm x 355mm x 206mm Package weight: 4.7kg
Power Supply	1 x External 90W AC/DC power adapter with screw locking DC Jack (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+19VDC
Certifications	CE (EN55035 + EN55032) FCC Class A (EMI part 15B) LVD (EN62368-1)
OS Support Lists	Win10 64-bit Linux

XPPC16-101 (P/N: 10W30XPPC23X0)
15.6” FHD LED P-CAP panel PC, Intel^® Celeron^® J3455

Panel mount kit (P/N: 88W30XPPC04X0)

Open frame kit (P/N: 88W30XPPC05X0)

Driver
Date	Description	Version	OS	Download
2022-09-12	Audio		windows
2022-09-12	Chipset		windows
2022-09-12	Graphics		windows
2022-09-12	Realtek		windows
2022-09-12	Serial IO		Windows
2022-09-12	TXE		windows

Manual
Date	Description	Version	OS	Download
2022-04-28	User Manual		Windows
