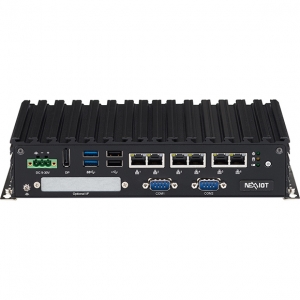

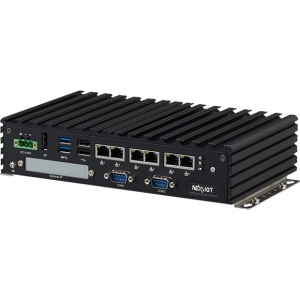

Máy tính công nghiệp NISE 4310-E01

Intel Atom® x6425E Quad Core Fanless System

Giá: Liên hệ

Tính năng chính:

Onboard Intel Atom® x6425E Quad Core processor, 2.0 GHz
2 x Display output, 1 x HDMI and 1 x DP port
6 x Intel® I225-IT 2.5GbE TSN LAN ports; support WoL, teaming and PXE
Support both 2.5” and M.2 SATA SSD
1 x mini-PCIe Wi-Fi/LTE wireless module
2 x USB 3.1
4 x USB2.0
2 x DB9 for RS232/422/485
2 x DB9 for RS232
Support -20°C~60°C extended operating temperature
Support 9~30V DC input; support AT/ATX power mode

Báo giá sản phẩm

PDF

Powered by Intel 11th generationAtom^® x6425E processorQuad Core, 2.0GHz (formerly codenamed "Elkhart Lake "). NISE4310 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. Up to 16G DDR4 memory, NISE 4310-E01 have several options on storage devices like M.2 and 2.5” SATA SSD. The NISE 4310 has high integration ability with optional Mini PCI-e module (Wi-Fi/LTE), M.2 module (5G/LTE/SATA SSD), 4 x COM ports (2x RS232 and 2xRS232/422/485), which makes it a real intelligent system for various applications such as factory automation applications, network applications and communication applications. For more harsh environment, the NISE 4310-E01 also provide extended operating temperature SKU from -20 up to 60 degree C.

CPU Support	Onboard Intel Atom® x6425E Quad Core processor, 2.0 GHz
Main Memory	1 x DDR4 2666 SO-DIMM socket, support up to 16GB
Display Option	Dual independent display: HDMI + DP
I/O Interface-Front	ATX power on/off switch LED indicator: power status, HDD access, RTC battery low 6 x Intel® I225-IT 2.5GbE TSN LAN ports; support WoL, teaming and PXE 2 x USB3.1 ports (900mA per each) 2 x USB2.0 ports (500mA per each) 1 x Display port 2 x DB9 for COM1 & COM2, support RS232/422/485 with auto flow control, BIOS setting 1 x Optional I/F opening for optional function output or module interface use 1 x 3-pin DC input, support +9 to 30VDC input
I/O Interface-Rear	2 x USB2.0 ports (500mA per each) 1 x 2-pin remote power on/off switch 1 x HDMI port 2 x DB9 for COM 3 & COM4, support RS232 only 2 x connector holes for optional Mic-in / Line-out 6 x antenna holes for 5G/LTE/Wi-Fi
I/O Interface-Internal	4 x GPI and 4 x GPO (5V, TTL type) 1 x NANO-SIM holder TPM2.0 (optional) Mic-in / Line-out (optional)
Storage Device	1 x 2.5" HDD (SATA 3.0) 1 x M.2, support B, B+M key module (2242)
Expansion Slot	1 x mini-PCIe socket support optional Wi-Fi/4G LTE modules 1 x M.2 Key B socket support optional 5G/ 4G LTE/ Storage modules
Power Requirements	Power input: +9 to 30 Vdc
Dimensions	238mm (W) x 145mm (D) x 54mm (H) without wall-mount bracket
Construction	Aluminum chassis with fanless design
Environment	Operating temperature: Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°CRelative humidity: 95% at 40°C Shock protection: - HDD: 20G @ wall mount, half sine, 11ms (operation), IEC60068 2-27 - M.2: 50G @ wall mount, half sine, 11ms (operation) , IEC60068 2-27 Vibration protection w/ M.2 & SSD condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	CE approval - EN61000-6-2 - EN61000-6-4 FCC Class A
Support OS	Windows 10 IoT Enterprise, 64-bit Windows 11 Linux Kernel version 4.1

NISE 4310-E01 (P/N: 10J00431000X0 )
Intel Atom^® x6425E Quad Core, 2.0GHz fanless system

24V, 60W AC/DC power adapter w/o power cord
(P/N: 7400060054X00)
