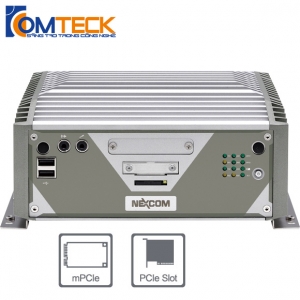

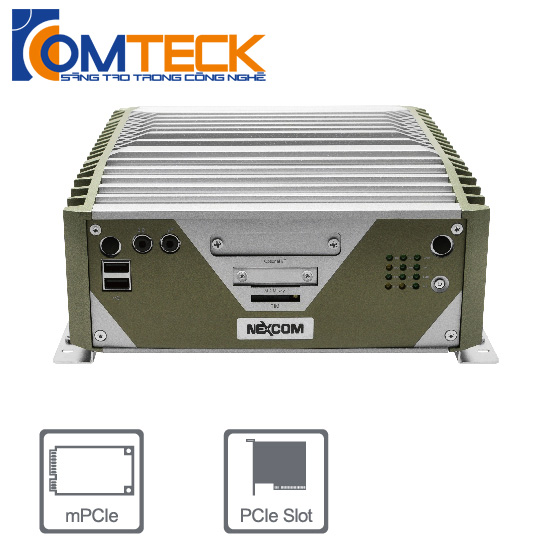

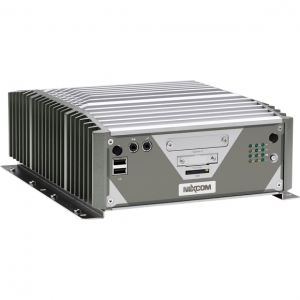

Máy tính công nghiệp NISE 3900E-H310

Support 8th/9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Core™ i7-9700TE, 8 Core, 1.8GHz, 12M Cache
- Intel® Core™ i5-9500TE, 6 Core, 2.2GHz, 9M Cache
- Intel® Core™ i3-9100TE, 4 Core, 2.2GHz, 6M Cache
- Intel® Core™ i7-8700T, 6 Core, 2.4GHz, 12M Cache
- Intel® Core™ i5-8500T, 6 Core, 2.1GHz, 9M Cache
- Intel® Core™ i3-8100T, 4 Core, 3.1GHz, 6M Cache

Turbo-boost disabled by default

2 x DDR4 2400/2666 SO-DIMM socket, support up to 16GB with un-buffered and non-ECC

Two independent display
- HDMI + DVI-D

Front I/O Interface Status LEDs

3 x LAN active LEDs

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

1 x Battery low

1 x M.2

Front I/O Interface

1 x ATX power on/off switch

1 x Line-out and 1 x Mic-in

2 x Antenna holes

1 x External M.2 socket (M-key)

1 x SIM card holder

2 x USB 2.0 ports (500mA per each)

Rear I/O Interface

2 x DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control

4 x USB 3.1 ports (900mA per each)

1 x DVI-D port

1 x HDMI port

2 x Intel® I210AT GbE LAN ports; support WoL, Teaming and PXE

1 x 3-pin remote power on/off switch

+9V to 30V DC input

Internal I/O

COM3/COM4: internal box header, support RS232 only

8CH GPIO: internal pin header, support 4 x GPO and 4 x GPI, TTL 5V level

On-board TPM2.0 (SLB9665) for data encryption purpose

1 x Internal M.2 (B-key) support optional LTE

Storage Device

1 x Internal M.2 socket (M-key SATA 3.0)

1 x 2.5" HDD or SSD (SATA 3.0) driver bay

Power Requirements

AT/ATX power mode (default: ATX power mode)

Power input: +9 to +30V DC

Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

215 mm(W) x 272mm (D) x 94mm (H) without wall mount bracket (8.5" x 10.7" x 3.7")

Construction

Aluminum and metal chassis with fanless design

Environment

Operating temperature: Ambient with airflow: -5°C to 55°
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration protection with SSD & M.2 condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

Certifications

CE approval- EN61000-6-2- EN61000-6-4

FCC Class A

OS Support Lists

Windows 10 64-bit

Linux Kernal 4.9

Gross weight: 6.54kg

Net weight: 5kg

Weight Information

Windows 7 32-bit and 64-bit

Windows 8.1 32-bit and 64-bit

Windows 10 64 bits
