Máy tính công nghiệp NISE 4200

Support 6th generation Intel® Core™ i5/i3 BGA type embedded processor
- Core™ i5-6442EQ, Quad-Core, 1.9GHz, 6M Cache
- Core™ i3-6102E, Dual-Core, 1.9GHz, 4M Cache

Turbo-boost disabled by default

2 x DDR4 SO-DIMM socket, support up to 32GB with un-buffered and non-ECC

Three independent display
- DP + DP+ DVI-D

Dual independent display
- DP + DVI-D

Front I/O Interface Status LEDs

2 x LAN active LEDs

2 x GPO status/COM1/2 TX/RX LEDs

1 x HDD access LEDs

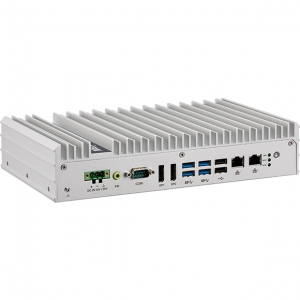

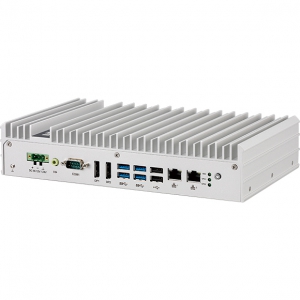

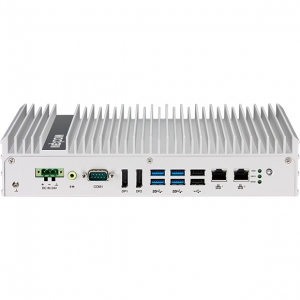

Front I/O Interface

1 x ATX power on/off switch

2 x DP 1.2

1 x Line-out

1 x DB9 for COM1
COM1: RS232/422/485 (BIOS selectable)

4 x USB 3.0 ports (900mA per each)

2 x USB 2.0 ports (500mA per each)

24V +/- 20% DC input

LAN1: Intel® I210-IT GbE LAN ports; support WoL and PXE

LAN2: 1 x Intel® I219-LM GbE LAN, support Intel® AMT 11
(NISE 4200Q-6442EQ)

Rear I/O Interface

5 x DB9 for COM2 & COM3~6
- COM2: RS232/422/485 auto flow control
- COM3: RS232
- COM4: RS232
- COM5: RS232
- COM6: RS2321 x DVI-D port

Internal I/O

1 x USB 2.0 type A connector

1 x USB 2.0 box header

16CH GPIO: internal pin header, support 8x GPO and 8x GPI, TTL 5V level

On-board TPM2.0 (SLB9665) for data encryption purpose

Storage Device

1 x mSATA (SATA 3 0)

1 x 2.5" HDD (SATA 3.0)

Expansion Slot

2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA

1 x 2280 or 2240 B+M Key M.2 slot

Power Requirements

AT/ATX power mode (default: ATX power mode)

Power input: 24V +/- 20% DC input

Power adapter: optional AC to DC power adapter (24V DC, 120W)

Dimensions

269 mm(W) x 157mm (D) x 56mm (H) without wall mount bracket

Aluminum chassis with fanless design

Operating temperature:
Ambient with airflow: -20°C to 70°
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°C

Relative humidity: 10% to 93% (non-condensing)

Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- M.2: 50G, half sine, 11ms, IEC60068-2-27

Vibration protection with HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration protection with SSD & M.2 condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

CE approval-EN55032/EN55024

FCC Class A

Windows 7 32-bit and 64-bit

Windows 10 64-bit

Gross weight: 2.8kg

Net weight: 2.1kg
